Pneumatic Casters
These industrial pneumatic casters feature air filled pneumatic wheels. Industrial casters are designed for low speed, manually moved applications. Air filled pneumatic wheels provide a cushioned ride, shock absorption and quiet operation. Pneumatic casters are ideally suited for moving fragile or delicate cargo where caster overall height is not critical. Casters with pneumatic wheels are usually the best choice for use outdoors over rough surfaces ( i.e. gravel ) or on grass. The wide footprint on 8" or larger pneumatic wheels provides stability on gravel and does not sink into lawns.

Pneumatic casters and pneumatic wheels are also popular for indoor use in places such as hospitals, scientific and electronic laboratories, hotels, department stores and TV or movie studios. In these locations pneumatic casters with gray pneumatic wheels are a popular choice. Gray tires do not contain carbon black and thus can not mark the floor. Pneumatic wheels with black tires do not mark the floor as long as the wheel is allowed to roll. Changing directions without allowing a swivel caster to turn gradually around, or dragging a black rubber wheel sideways, can mark some floors.

Choose pneumatic casters with confidence because there is nothing more noise absorbing and shock isolating than air filled pneumatic wheels. When selecting a pneumatic caster, remember that capacity ratings are based on loads being moved manually with the proper tire inflation. If you consider maintaining the proper air pressure in a pneumatic wheel a maintenance chore, then consider our Pneumatic Caster Alternative. Please contact us for a recommendation if you need pneumatic casters to be moved with mechanically powered equipment.

All of our pneumatic casters come with ball bearings in the pneumatic wheels.

If you want to provide a cushioned ride for sensitive materials, whether they are glass, ceramics or school band instruments, select from our pneumatic casters or contact us for assistance.


Wheel diameter, caster overall height and capacity vary depending on air pressure and the weight involved.
Click Here to see ALL available sizes, wheels and to ORDER.
Pneumatic Casters with Brakes
8" Pneumatic Swivel Caster
with TB Brake		 Pneumatic Casters - Swivel

8" Pneumatic Swivel Caster

8" Pneumatic Rigid Caster
8" Pneumatic
Wheel Only
Avail Black or Gray

8" Pneumatic
Brass Plated Swivel Caster
with TB Brake

8" Pneumatic
Brass Plated Swivel Caster

8" Pneumatic
Brass Plated Rigid Caster
8" Pneumatic
Brass Plated
Wheel Only

10" Pneumatic Black
Swivel Caster
with WB Brake
Brake Option is not available
with the 10" Gray tire

10" Pneumatic
Swivel Caster

10" Pneumatic
Rigid Caster

10" Pneumatic
Wheel Only
Avail Black or Gray
Photos are only a sample of available products. To see all available products & sizes, Scroll Down or Click Here.

Pneumatic Caster Alternative
Rubber Swivel Caster
6" Super Cushion
Rubber Swivel Caster 		Rubber Rigid Caster
6" Super Cushion
Rubber Rigid Caster 		If you're looking for a 6" Pneumatic or a "Pneumatic like" caster, these Super Cushion Rubber Casters are available in both 6" and 8" Models.

SUPER CUSHION rubber caster wheels provide a cushioned ride, shock absorption and quiet operation. They can be used outdoors on grass or dirt but are not recommended for use on gravel. They are as resilient as pneumatics with none of the maintenance problems associated with air filled wheels.
Click here to go to our Pneumatic Caster Alternative Page
Mounting Plate
Top Plate Size Bolt Hole Spacing Bolt Size
4" x 4 1/2" 2 5/8" x 3 5/8"
slotted to
3" x 3"		 3/8"

If you are unsure of your choice, please call us. Returns are subject to a restocking charge.
You must call for an RGA form to return products !!!
How do I place an order ? Return to My Shopping Cart
Click on the Part Numbers for Pricing, Options and to ORDER.
Pneumatic Wheels Pneumatic Casters
Nominal
Diam.
Actual
Diam.		 Tire Size x
Rim Diam.		 Max
Air
Pressure		 Tire
Color		 Fork
Plating
Weight.
Lbs.
Capacity
Lbs.
Overall
Height
Pneumatic
Swivel
Caster Part
Number		 Pneumatic
Rigid
Caster Part
Number
8" 8 3/4" 2.80 /2.50-4 50 Black ZINC 9SF8x3-S 9SF8x3-R 8 300 10"
Gray ZINC 9SF8x3G-S 9SF8x3G-R
Black BRASS 9SF8x3-S-BR 9SF8x3-R-BR
10" 10 1/4" 4.10 / 3.50-4 50 Black ZINC 9SF10x3-1/2-S 9SF10x3-1/2-R 12 350 12 1/4"
Gray ZINC 9SF10x3-1/2G-S 9SF10x3-1/2G-R
12" 13 1/8" 4.10 / 3.50-6 50 Black ZINC 9SF12x3-1/2-S 9SF12x3-1/2-R 15 450 15 3/4"
Click here for Light Duty 6" Pneumatic Casters
Some 8" and 10" Pneumatic wheels can be furnished foam filled. Add $30 to foam fill the 8" wheel. Add $45 to foam fill the 10" wheel. We do not offer foam filled 12" wheels. The lead time for foam filling is 3 to 4 weeks. If you want your wheels foam filled, you MUST place your order over the phone.

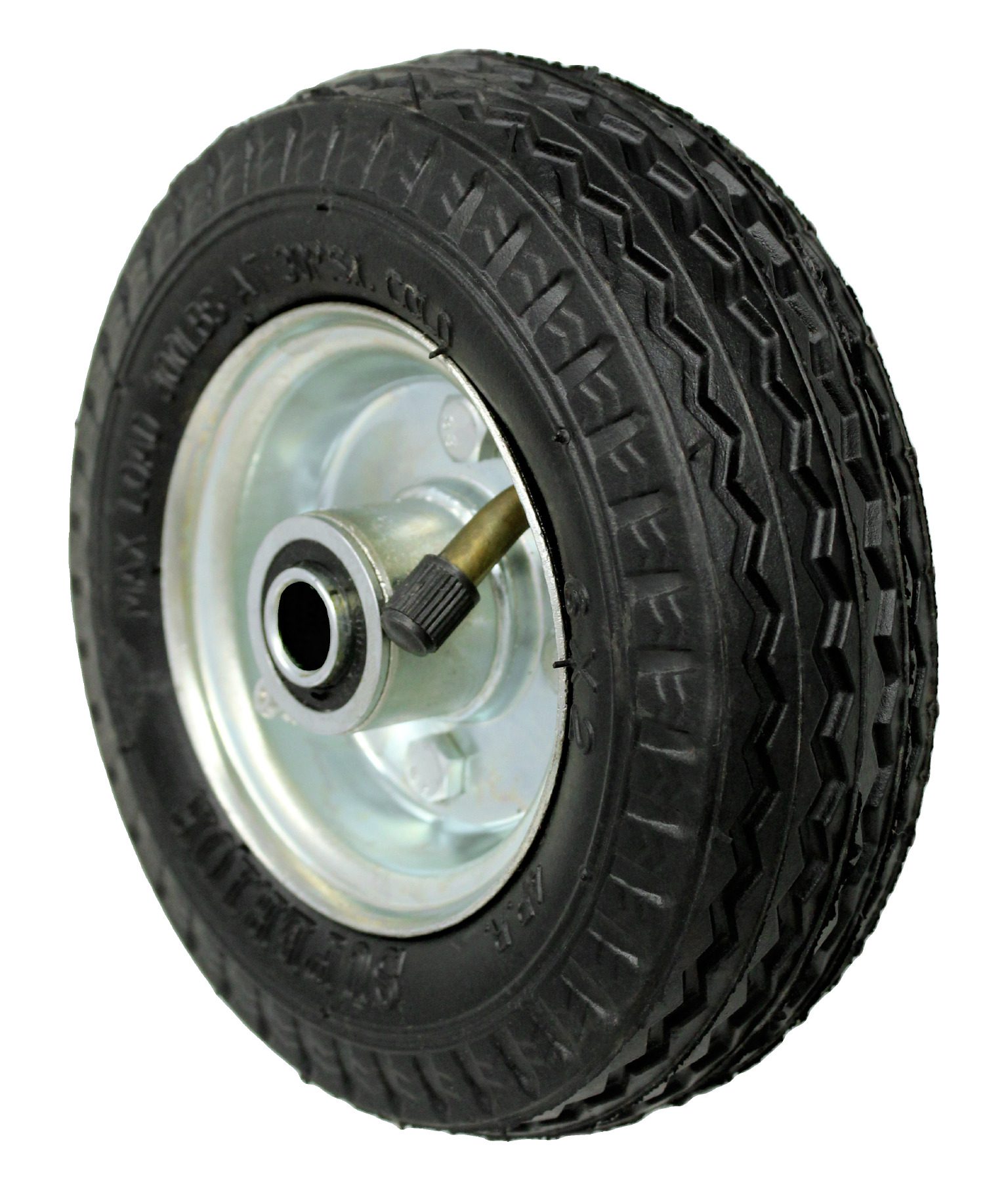

Pneumatic Wheels ONLY
These wheels are for use ONLY as Replacements in manually moved casters.
Nominal
Diam.
Actual
Diam.		 Tire Size x
Rim Diam.		 Max
Air
Pressure		 Tire / Wheel
Color		 Pneumatic Wheel
Part Number		 Weight.
Lbs.
Capacity
Lbs.		 Hub
Length		 Bearing
Size
8" 8 3/4" 2.80 /2.50-4 50 Black / Zinc SF8x3 3 1/2 300 3 3/16" 1/2"
Ball
Bearing
Gray / Zinc SF8x3G
Black / Brass SF8x3-BR
10" 10 1/4" 4.10 / 3.50-4 50 Black / Zinc SF10x3-1/2 4 1/2 350 4"
Gray / Zinc SF10x3-1/2G
12" 13 1/8" 4.10 / 3.50-6 50 Black / Zinc SF12x3-1/2 6 450 4"


All pneumatic wheels have ball bearings.

Wheel Brakes appear as an option after you select a swivel pneumatic caster.

Wheel diameter, caster overall height and capacity vary depending on air pressure and the weight involved.
Capacity ratings are based on use in a manual operation at air pressure indicated.
Consult factory if speed is to be above 3 mph.

You should never select on the basis of load capacity alone. Capacity ratings do not take into account the effort required to manually move a load. Capacity ratings are based on manual operation under ideal conditions. If these casters are going to be moved by mechanically powered equipment, consult us for a reduced capacity rating based on your application.
