Industrial Caster - Caster Model 30 - Plate Mount

Capacity up to 3,500 pounds per caster.

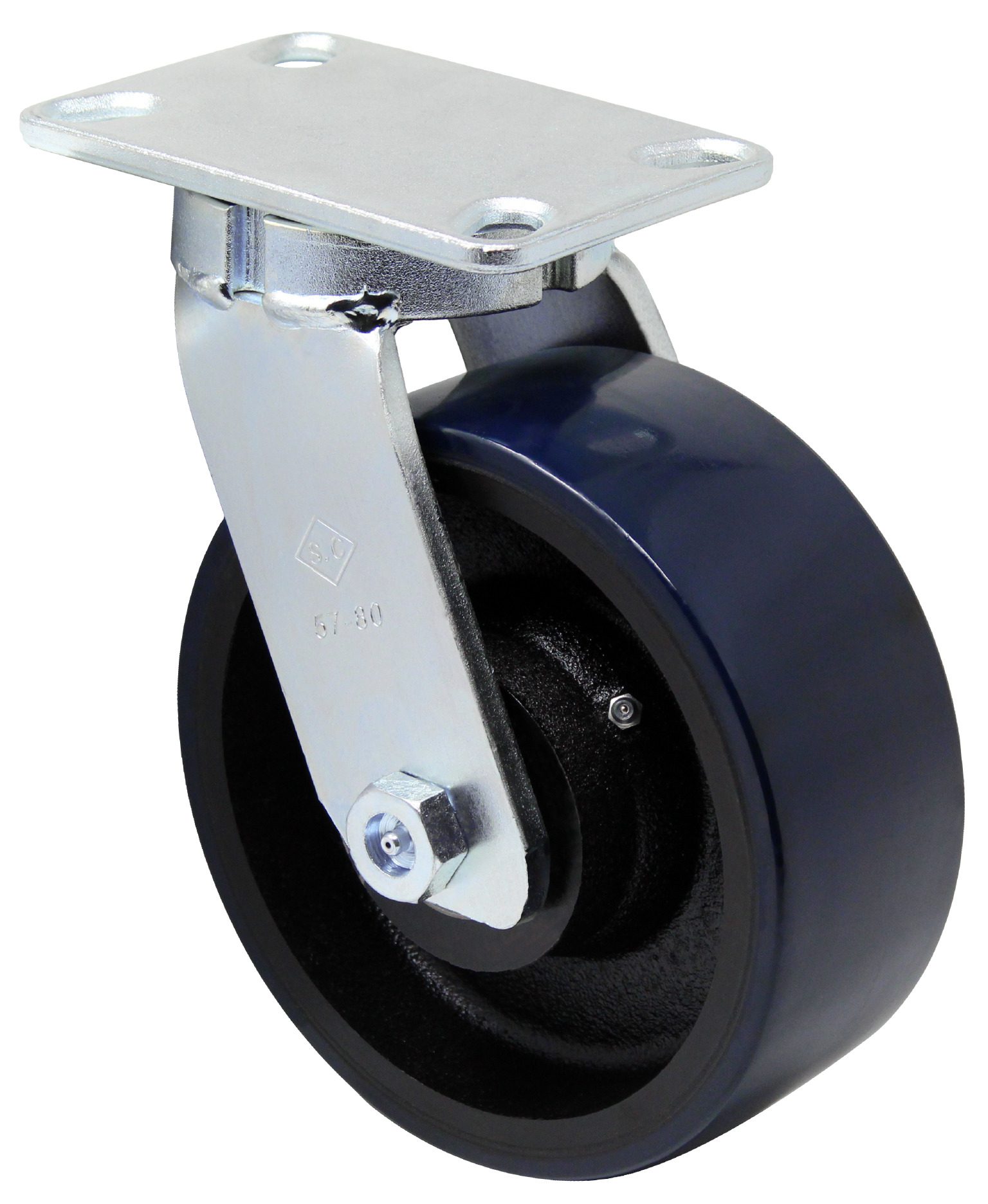

Model 30 features a large swivel and wheel bearing which allows for heavy loads and more arduous service. Model 30 has a precision machined swivel bearing, which provides superior performance on both manually moved and mechanically powered equipment. Benefits include easier swiveling, reduced swivel vibration, and longer trouble free performance.

All wheels shown in Model 30 can be furnished in Caster Model 50 if your application requires a more rugged caster bracket.


When used with mechanically powered equipment please consult us for a recommendation.

If you are unsure of your selection
please contact us for assistance.
Mounting Plate - 4 1/2" x 6 1/4"
This image is for Plate Size and Hole Placement ONLY. IT DOES NOT DEPICT THE ACTUAL PLATE.
We suggest that you do NOT drill the mounting holes to attach the casters until you receive them.
We do NOT include mounting Hardware.
You should never select on the basis of load capacity alone. There is no industry standard for load capacity ratings and they may not include a factor for abuse. Our capacity ratings are below what the casters are capable of carrying because most applications have less than perfect conditions. Please refer to the information shown at the bottom of this page. If you have any doubt as to which wheel or caster is the BEST choice for your application contact us for a recommendation.

CALL US AT 800-501-3808

Features:
  • Swivel Construction - precision machined combination load and thrust bearing with heat treated raceway. No center pin.
  • Legs - 3/8" thick, welded inside and out.
  • Axle - 3/4'' diameter hollow bolt with lock nut.
  • Wheel Bearing - 1" I.D. Hardened Straight Roller Bearings, 3/4" Tapered Roller Bearings or Precision Ball Bearings
  • Grease Fittings - for swivel and wheel bearings.
  • V Groove Width - 7/8" Standard.
  • Finish - external metal parts are zinc plated.
Optional Features:
Swivel Lock
- SL4 - Welded - Locks Swivel, NOT wheel.
Un-Locked Locked
Wheel Brake - FCB - Face Contact Brake
Wheel Brakes are not designed to hold on inclines.
Not available on V-Groove Wheels.

8" x 3" Ductile Steel
Swivel Caster

8" x 3" Ductile Steel
Rigid Caster

10" x 3" V Groove Ductile Steel
Swivel Caster

6" x 3" V Groove Ductile Steel
Rigid Caster

6" x 3" Ductile Steel Slight Crown
Swivel Caster

8" x 3" Ductile Steel Slight Crown
Swivel Caster

8" x 3" Ductile Steel Slight Crown
Rigid Caster

8" x 3" Polyurethane on Iron
Slight Crown Blue Tread
Rigid Caster

8" x 3" Heavy Duty
Polyurethane on Iron
Swivel Caster

10" x 3" Heavy Duty
Polyurethane on Iron
Rigid Caster

6" x 3" Heavy Duty
Polyurethane on Iron
Rigid Caster

8" x 3" Polyurethane on Iron
Swivel Caster

8" x 3" Red Polyurethane on Iron
Swivel Caster

8" x 3" Red Polyurethane on Iron
Rigid Caster

10" x 3" Phenolic
Swivel Caster

6" x 3" Phenolic
Rigid Caster
We do NOT include mounting Hardware.
Click on the Part Numbers for Pricing, Options and to ORDER.
Caster
Wheel
Diam.
Tread
Width
Click here
to compare
wheel materials.
Wheel
Bearing

Max
Cap.
Each
Caster
lbs.
Click Part Numbers Below
For Price and to Order

Approx
Swivel
Weight
lbs.
Approx
Swivel
Radius
Overall
Height

Wheel Tread Material
Click to see Wheel
Swivel Caster Rigid Caster
Buy it Now Buy it Now
6" 2 1/2" Conventional Moldon Rubber Roller 600 30MR6x2.50-S 30MR6x2.50-R 23 4 3/4" 7 1/2"
Polyurethane on Iron Roller 1600 30PY6x2.50-S 30PY6x2.50-R 23
Polyurethane on Iron - Slight Crown Tread Roller 1600 30PYC6x2.50-S 30PYC6x2.50-R 24
Phenolic Roller 1600 30TH6x2.50-S 30TH6x2.50-R 17
Gray Iron Roller 1600 30CL6x2.50-S 30CL6x2.50-R 23
Ductile Steel Roller 3000 30DS6x2.50-S 30DS6x2.50-R 24
V-Groove Gray Iron Roller 1600 30VL6x2.50-S 30VL6x2.50-R 24
V-Groove Ductile Steel Roller 3000 30VS6x2.50-S 30VS6x2.50-R 24
3" Conventional Moldon Rubber Roller 650 30MR6x3-S 30MR6x3-R 24
Polyurethane on Iron Roller 2000 30PY6x3-S 30PY6x3-R 27
Polyurethane on Iron - Heavy Duty Roller 3000 30PYH6x3-S 30PYH6x3-R 31
Polyurethane on Iron - Heavy Duty Precision Ball 3000 30PYH6x3PS-S 30PYH6x3PS-R 31
Polyurethane on Iron - Heavy Duty*T Tapered 3000 30PYH6x3T-S 30PYH6x3T-R 31
Polyurethane on Iron - Slight Crown Tread Roller 2000 30PYC6x3-S 30PYC6x3-R 29
Phenolic Roller 2000 30TH6x3-S 30TH6x3-R 18
Gray Iron Roller 2000 30CL6x3-S 30CL6x3-R 24
Ductile Steel Roller 3500 30DS6x3-S 30DS6x3-R 25
Ductile Steel - Slight Crown Roller 3500 30DSC6x3-S 30DSC6x3-R 25
Ductile Steel - Slight Crown*T Tapered 3500 30DSC6x3T-S 30DSC6x3T-R 25
V-Groove Gray Iron Roller 2000 30VL6x3-S 30VL6x3-R 25
V-Groove Ductile Steel Roller 3500 30VS6x3-S 30VS6x3-R 25
8" 2 1/2" Conventional Moldon Rubber Roller 600 30MR8x2.50-S 30MR8x2.50-R 24 6 3/8" 10 1/8"
Polyurethane on Iron Roller 1600 30PY8x2.50-S 30PY8x2.50-R 25
Polyurethane on Iron - Slight Crown Tread Roller 1600 30PYC8x2.50-S 30PYC8x2.50-R 26
Phenolic Roller 1600 30TM8x2.50-S 30TM8x2.50-R 20
Gray Iron Roller 1600 30CL8x2.50-S 30CL8x2.50-R 26
Ductile Steel Roller 3000 30DS8x2.50-S 30DS8x2.50-R 27
V-Groove Gray Iron Roller 1600 30VL8x2.50-S 30VL8x2.50-R 27
V-Groove Ductile Steel Roller 3000 30VS8x2.50-S 30VS8x2.50-R 27
3" Conventional Moldon Rubber Roller 650 30MR8x3-S 30MR8x3-R 24
Polyurethane on Iron Roller 2500 30PY8x3-S 30PY8x3-R 28
Polyurethane on Iron - Heavy Duty Roller 3500 30PYH8x3-S 30PYH8x3-R 35
Polyurethane on Iron - Heavy Duty Precision Ball 3500 30PYH8x3PS-S 30PYH8x3PS-R 35
Polyurethane on Iron - Heavy Duty*T Tapered 3500 30PYH8x3T-S 30PYH8x3T-R 35
Polyurethane on Iron - Slight Crown Tread Roller 2500 30PYC8x3-S 30PYC8x3-R 30
Phenolic Roller 2500 30TM8x3-S 30TM8x3-R 22
Gray Iron Roller 2500 30CL8x3-S 30CL8x3-R 25
Ductile Steel Roller 3500 30DS8x3-S 30DS8x3-R 27
Ductile Steel - Slight Crown Roller 3500 30DSC8x3-S 30DSC8x3-R 27
Ductile Steel - Slight Crown*T Tapered 3500 30DSC8x3T-S 30DSC8x3T-R 27
V-Groove Gray Iron Roller 2000 30VL8x3-S 30VL8x3-R 27
V-Groove Ductile Steel Roller 3500 30VS8x3-S 30VS8x3-R 28
10" 2 1/2" Conventional Moldon Rubber Roller 600 30MR10x2.50-S 30MR10x2.50-R 26 7 9/16" 11 1/2"
Polyurethane on Iron Roller 1600 30PY10x2.50-S 30PY10x2.50-R 28
Polyurethane on Iron - Slight Crown Tread Roller 1600 30PYC10x2.50-S 30PYC10x2.50-R 30
Phenolic Roller 1600 30TM10x2.50-S 30TM10x2.50-R 24
3" Conventional Moldon Rubber Roller 650 30MR10x3-S 30MR10x3-R 26
Polyurethane on Iron Roller 2500 30PY10x3-S 30PY10x3-R 29
Polyurethane on Iron - Heavy Duty Roller 3500 30PYH10x3-S 30PYH10x3-R 38
Polyurethane on Iron - Slight Crown Tread Roller 2500 30PYC10x3-S 30PYC10x3-R 31
Phenolic Roller 2500 30TM10x3-S 30TM10x3-R 24
Gray Iron Roller 2500 30CL10x3-S 30CL10x3-R 26
Ductile Steel Roller 4000 30DS10x3-S 30DS10x3-R 32
V-Groove Gray Iron Roller 2000 30VL10x3-S 30VL10x3-R 27
V-Groove Ductile Steel Roller 3500 30VS10x3-S 30VS10x3-R 33

Deduct 3 1/2 lb. for weight of rigid caster.
You should never select on the basis of load capacity alone. Capacity ratings do not take into account the effort required to manually move a load. Capacity ratings are based on manual operation under ideal conditions. If these casters are going to be moved by mechanically powered equipment, consult us for a reduced capacity rating based on your application. If a human being has to move the weight, select the largest practical wheel diameter.

If a caster failure occurs it is almost always because of misuse or abuse. It has been very rare that a product failed because of faulty material or poor workmanship. The following are examples of things that we do NOT want you to do:

1. Dragging the wheel sideways.
2. Shock or Impact caused by dropping the load instead of setting it down on the castered equipment.
3. Improper Installation such as:
  A. Rigid casters not installed parallel to one another.
  B. Swivel casters not installed parallel to the floor.
  C. Using less than 4 bolts to attach the mounting plate.
  D. Distortion of the swivel bearing when attaching the mounting plate due to welding improperly.
4. Exceeding the rated capacity of the wheel or caster.
5. Exceeding a rolling speed of 3 MPH.
6. The build up of heat caused by continuous operation causing tire separation.
Photos & graphics are for informational purposes only. Actual product may vary slightly from those shown.
Wheel colors may vary unless specified. If wheel color is important, please contact us for current inventory.
