Industrial Caster - Caster Model 50 - Plate Mount

Capacity up to 6,000 pounds per caster.

Model 50 has a large top plate and thick legs, which allow for heavy loads and more arduous service. Model 50 has a precision machined swivel bearing, which provides superior performance on both manually moved and mechanically powered equipment. Benefits include easier swiveling, reduced swivel vibration, and longer trouble free performance.

Suggested for a capacity of up to 6000 lbs per caster in a manually moved application and for up to 6000 lbs when moved with mechanically powered equipment. Some wheels shown in Model 50 can be furnished in Model 100 if your application requires a more rugged caster bracket. When used with mechanically powered equipment please consult us for a recommendation.
Mounting Plate - 5 1/4" x 7 1/4"
This image is for Plate Size and Hole Placement ONLY. IT DOES NOT DEPICT THE ACTUAL PLATE.
We suggest that you do NOT drill the mounting holes to attach the casters until you receive them.
We do NOT include mounting Hardware.
If you are unsure of your selection
please contact us for assistance.
You should never select on the basis of load capacity alone. There is no industry standard for load capacity ratings and they may not include a factor for abuse. Our capacity ratings are below what the casters are capable of carrying because most applications have less than perfect conditions. Please refer to the information shown at the bottom of this page. If you have any doubt as to which wheel or caster is the BEST choice for your application contact us for a recommendation.

CALL US AT 800-501-3808

Features:
  • Swivel Construction - precision machined combination load and thrust bearing with heat treated raceway. No center pin.
  • Legs - 3/8" thick, welded inside and out.
  • Axle - 3/4'' diameter hollow bolt with lock nut.
  • Wheel Bearing - 1" I.D. hardened straight roller bearings. Items marked *T have 3/4" Tapered Roller Bearings. "B" have Bronze Bearings
  • NX Wheel Bearing - Each Wheel contains 4 Precision Ball Bearings.
  • Grease Fittings - for swivel and wheel bearings.
  • V Groove Width - 7/8" Standard.
  • Finish - external metal parts are zinc plated.
Optional Features:
Swivel Lock
- SL4 - Welded - Locks Swivel, NOT wheel.
Un-Locked Locked
Wheel Brake - FCB - Face Contact Brake
Wheel Brakes are not designed to hold on inclines.
Not available on V-Groove Wheels.

6" x 3" Forged Steel
Swivel Caster

6" x 3" Forged Steel
Rigid Caster

6" x 3" Ductile Steel
Rigid Caster

8" x 3" Ductile Steel
Swivel Caster


6" x 3" Ductile Steel Slight Crown
Swivel Caster


6" x 3" Ductile Steel Slight Crown
Rigid Caster

6" x 3"
Ultra High Capacity Polymer
Swivel Caster

10" x 3"
Ultra High Capacity Polymer
Swivel Caster

10" x 3" 65D Green
Polyurethane on Iron
Swivel Caster

8" x 3"
Polyurethane on Iron
Swivel Caster

8" x 3" Polyurethane on Iron
Slight Crown Blue Tread
Swivel Caster

8" x 3" 95A Orange Premium
Polyurethane on Iron
Swivel Caster


10" x 3" Phenolic
Swivel Caster


6" x 3" Phenolic
Swivel Caster

6" x 3"
V Groove Gray Iron
Rigid Caster

6" x 3"
V Groove Ductile Steel
Rigid Caster
We do NOT include mounting Hardware.
Click on the Part Numbers for Pricing, Options and to ORDER.
Caster
Wheel
Diam.
Tread
Width
Click here
to compare
wheel materials.
Wheel
Bearing

Max
Cap.
Each
Caster
lbs.
Click Part Numbers Below
For Price and to Order

Approx
Swivel
Weight
lbs.
Approx
Swivel
Radius

Overall
Height

Wheel Tread Material
Click to see Wheel
Swivel Caster Rigid Caster
Buy it Now Buy it Now
6" 2 1/2" Polyurethane on Iron Roller 1600 50PY6x2.50-S 50PY6x2.50-R 23 4 3/4" 8"
Polyurethane on Iron - Slight Crown Tread Roller 1600 50PYC6x2.50-S 50PYC6x2.50-R 26
Phenolic Roller 1600 50TH6x2.50-S 50TH6x2.50-R 18
Gray Iron Roller 1600 50CL6x2.50-S 50CL6x2.50-R 21
Ductile Steel Roller 3500 50DS6x2.50-S 50DS6x2.50-R 28
V-Groove Gray Iron Roller 2000 50VL6x2.50-S 50VL6x2.50-R 24
V-Groove Ductile Steel Roller 3500 50VS6x2.50-S 50VS6x2.50-R 25
3" Polyurethane on Iron Roller 2000 50PY6x3-S 50PY6x3-R 24
65D Green Polyurethane on Iron Roller 3000 50PYH6x3-S 50PYH6x3-R 31
65D Green Polyurethane on Iron Precision Ball 3000 50PYH6x3PS-S 50PYH6x3PS-R 31
65D Green Polyurethane on Iron Tapered 3000 50PYH6x3T-S 50PYH6x3T-R 31
95A Orange Premium Polyurethane on Iron Tapered 3200 50PX6x3T-S 50PX6x3T-R 31
Polyurethane on Iron - Slight Crown Tread Roller 2000 50PYC6x3-S 50PYC6x3-R 30
Phenolic Roller 2000 50TH6x3-S 50TH6x3-R 19
Gray Iron Roller 2000 50CL6x3-S 50CL6x3-R 23
Ductile Steel Roller 5000 50DS6x3-S 50DS6x3-R 30
Ductile Steel*T Tapered 5000 50DS6x3T-S 50DS6x3T-R 30
Ductile Steel - Slight Crown*T Tapered 5000 50DSC6x3T-S 50DSC6x3T-R 30
Ductile Steel - Slight Crown*B Bronze 5000 50DSC6x3BRNZ-S 50DSC6x3BRNZ-R 30
Forged Steel Tapered 5000 50FS6x3T-S 50FS6x3T-R 33
Ultra High Capacity Polymer Precision Ball 6000 50NX6x3-S 50NX6x3-R 15
V-Groove Gray Iron Roller 2500 50VL6x3-S 50VL6x3-R 27
V-Groove Ductile Steel Roller 5000 50VS6x3-S 50VS6x3-R 35
V-Groove Ductile Steel*T Tapered 5000 50VS6x3T-S 50VS6x3T-R 35
8" 2 1/2" Polyurethane on Iron Roller 1600 50PY8x2.50-S 50PY8x2.50-R 27 6 1/2" 10 1/2"
Polyurethane on Iron - Slight Crown Tread Roller 1600 50PYC8x2.50-S 50PYC8x2.50-R 29
Phenolic Roller 1600 50TM8x2.50-S 50TM8x2.50-R 21
Gray Iron Roller 1600 50CL8x2.50-S 50CL8x2.50-R 25
Ductile Steel Roller 3500 50DS8x2.50-S 50DS8x2.50-R 30
V-Groove Gray Iron Roller 2000 50VL8x2.50-S 50VL8x2.50-R 26
V-Groove Ductile Steel Roller 3500 50VS8x2.50-S 50VS8x2.50-R 30
3" Polyurethane on Iron Roller 2500 50PY8x3-S 50PY8x3-R 28
65D Green Polyurethane on Iron Roller 3500 50PYH8x3-S 50PYH8x3-R 35
65D Green Polyurethane on Iron Tapered 3500 50PYH8x3T-S 50PYH8x3T-R 35
95A Orange Premium Polyurethane on Iron Tapered 4200 50PX8x3T-S 50PX8x3T-R 35

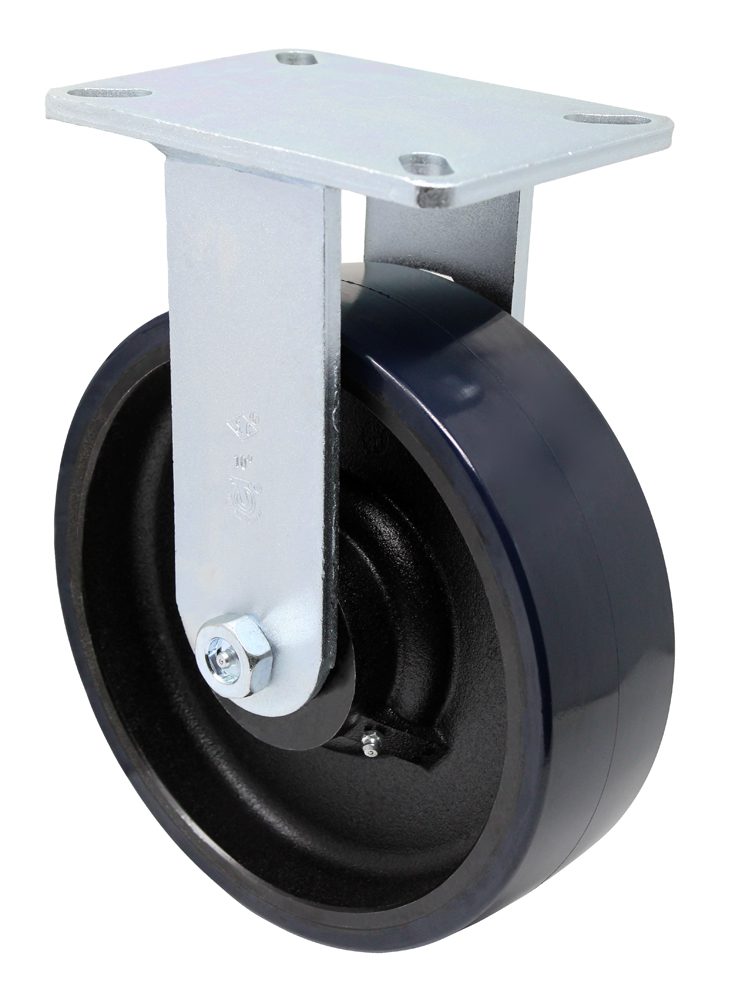

Polyurethane on Iron - Slight Crown Tread Roller 2500 50PYC8x3-S 50PYC8x3-R 35
Phenolic Roller 2500 50TM8x3-S 50TM8x3-R 22
Gray Iron Roller 2000 50CL8x3-S 50CL8x3-R 27
Ductile Steel Roller 5000 50DS8x3-S 50DS8x3-R 38
Ductile Steel - Slight Crown Roller 5000 50DSC8x3-S 50DSC8x3-R 38
Ductile Steel - Slight Crown*T Tapered 5000 50DSC8x3T-S 50DSC8x3T-R 38
Ductile Steel - Slight Crown*B Bronze 5000 50DSC8x3BRNZ-S 50DSC8x3BRNZ-R 38
Forged Steel Tapered 5000 50FS8x3T-S 50FS8x3T-R 48
Ultra High Capacity Polymer Precision Ball 6000 50NX8x3-S 50NX8x3-R 18
V-Groove Gray Iron Roller 2500 50VL8x3-S 50VL8x3-R 28
V-Groove Ductile Steel Roller 5000 50VS8x3-S 50VS8x3-R 38
10" 2 1/2" Polyurethane on Iron Roller 1600 50PY10x2.50-S 50PY10x2.50-R 33 8 1/32" 12 1/2"
Polyurethane on Iron - Slight Crown Tread Roller 1600 50PYC10x2.50-S 50PYC10x2.50-R 35
Phenolic Roller 1600 50TM10x2.50-S 50TM10x2.50-R 33
3" Polyurethane on Iron Roller 3000 50PY10x3-S 50PY10x3-R 35
65D Green Polyurethane on Iron Roller 4000 50PYH10x3-S 50PYH10x3-R 37
65D Green Polyurethane on Iron Tapered 4000 50PYH10x3T-S 50PYH10x3T-R 37
95A Orange Premium Polyurethane on Iron Tapered 4700 50PX10x3T-S 50PX10x3T-R 37
Polyurethane on Iron - Slight Crown Tread Roller 2500 50PYC10x3-S 50PYC10x3-R 35
Phenolic Roller 2500 50TM10x3-S 50TM10x3-R 25
Gray Iron Roller 2500 50CL10x3-S 50CL10x3-R 35
Ductile Steel Roller 5000 50DS10x3-S 50DS10x3-R 45
Forged Steel Tapered 5000 50FS10x3T-S 50FS10x3T-R 45
Ultra High Capacity Polymer Precision Ball 6000 50NX10x3-S 50NX10x3-R 23
12" 3" Polyurethane on Iron Roller 3500 50PY12x3-S 50PY12x3-R 37 10 1/32" 15 1/2"
65D Green Polyurethane on Iron Roller 4000 50PYH12x3-S 50PYH12x3-R 43
65D Green Polyurethane on Iron Tapered 4500 50PYH12x3T-S 50PYH12x3T-R 43
Polyurethane on Iron - Slight Crown Tread Roller 3000 50PYC12x3-S 50PYC12x3-R 49
Phenolic Roller 3000 50TM12x3-S 50TM12x3-R 28
Gray Iron Roller 2500 50CL12x3-S 50CL12x3-R 39
Ductile Steel Roller 5000 50DS12x3-S 50DS12x3-R 52
Ultra High Capacity Polymer Precision Ball 6000 50NX12x3-S 50NX12x3-R 28

If you need a specific overall height other than that shown, please contact us.
Deduct 3 lb. for weight of rigid caster.
You should never select on the basis of load capacity alone. Capacity ratings do not take into account the effort required to manually move a load. Capacity ratings are based on manual operation under ideal conditions. If these casters are going to be moved by mechanically powered equipment, consult us for a reduced capacity rating based on your application. If a human being has to move the weight, select the largest practical wheel diameter.

If a caster failure occurs it is almost always because of misuse or abuse. It has been very rare that a product failed because of faulty material or poor workmanship. The following are examples of things that we do NOT want you to do:

1. Dragging the wheel sideways.
2. Shock or Impact caused by dropping the load instead of setting it down on the castered equipment.
3. Improper Installation such as:
  A. Rigid casters not installed parallel to one another.
  B. Swivel casters not installed parallel to the floor.
  C. Using less than 4 bolts to attach the mounting plate.
  D. Distortion of the swivel bearing when attaching the mounting plate due to welding improperly.
4. Exceeding the rated capacity of the wheel or caster.
5. Exceeding a rolling speed of 3 MPH.
6. The build up of heat caused by continuous operation causing tire separation.
Photos & graphics are for informational purposes only. Actual product may vary slightly from those shown.
Wheel colors may vary unless specified. If wheel color is important, please contact us for current inventory.
