3″ Super Soft Gray Rubber Wheel – Plate Rigid Caster 3
$19.00
In Stock
Optional Add Ons for Caster
Technical Specifications
Wheel Diameter
3
Wheel Width
1 1/4
Wheel Bearing
Ball
Maximum Capacity (lbs)
105 lbs
Overall Height
4 1/8"
Color
Gray
Zinc Brake Codes
PTB, TB
Lube Axle Code
LA
Plate Fastener Type
Mounting Plate, Top Plate
Plate Mounting Type
Top Plate
Weight
1.75 lbs
Description
Matching rigid caster for Plate Caster Model 3. The mounting plate is 2 3/8” x 3 5/8” and the hole pattern is slotted to: 1 3/4” x 2 7/8” – 3” and is designed to use a mounting bolt size of 5/16”. This rigid caster uses a ⅜” diameter axle and nut and uses 1-¼” and 1-½” wide wheels. Multiple wheels and brake options are available. When manually moving equipment supported by 4 swivel casters it can be difficult to control the direction you are pushing or pulling. Rigid casters assist in controlling equipment being moved in straight line travel. Equipment with rigid casters installed can not move sideways. This plate caster is NSF listed.
The extra soft rubber on these caster wheels helps to absorb vibration and shock, thus protecting the load or cargo while in transit. Another benefit of these extra soft rubber caster wheels is noise reduction. These caster wheels are designed for use in Hospitals, Electronic and Scientific Laboratories, Hotels, Department Stores, TV and Movie Studios – wherever vibration and noise should be eliminated.
These caster wheels will provide the benefits described above only if the weight being carried does not exceed the rated capacity shown in the table and product specifications. These extra soft rubber caster wheels are intended for use in only light duty institutional applications. These wheels should never be used in an industrial application or where the tires might be dragged sideways. If you have an industrial application, or if you require a higher capacity, please consider our Super Cushion Rubber caster wheels.
These extra soft rubber caster wheels are non-marking and they will protect all hard floor surfaces. The crown shaped tread on the 3″, 4″ & 5″ wheels enhance the ability of a caster to swivel or change direction and will roll easier than “flat tread” wheels on carpet.
Caster City manufactures this plate caster in Stainless Steel. Caster City also manufactures this plate caster in Economy Stainless Steel. Both casters are NSF listed and RoHS Compliant.

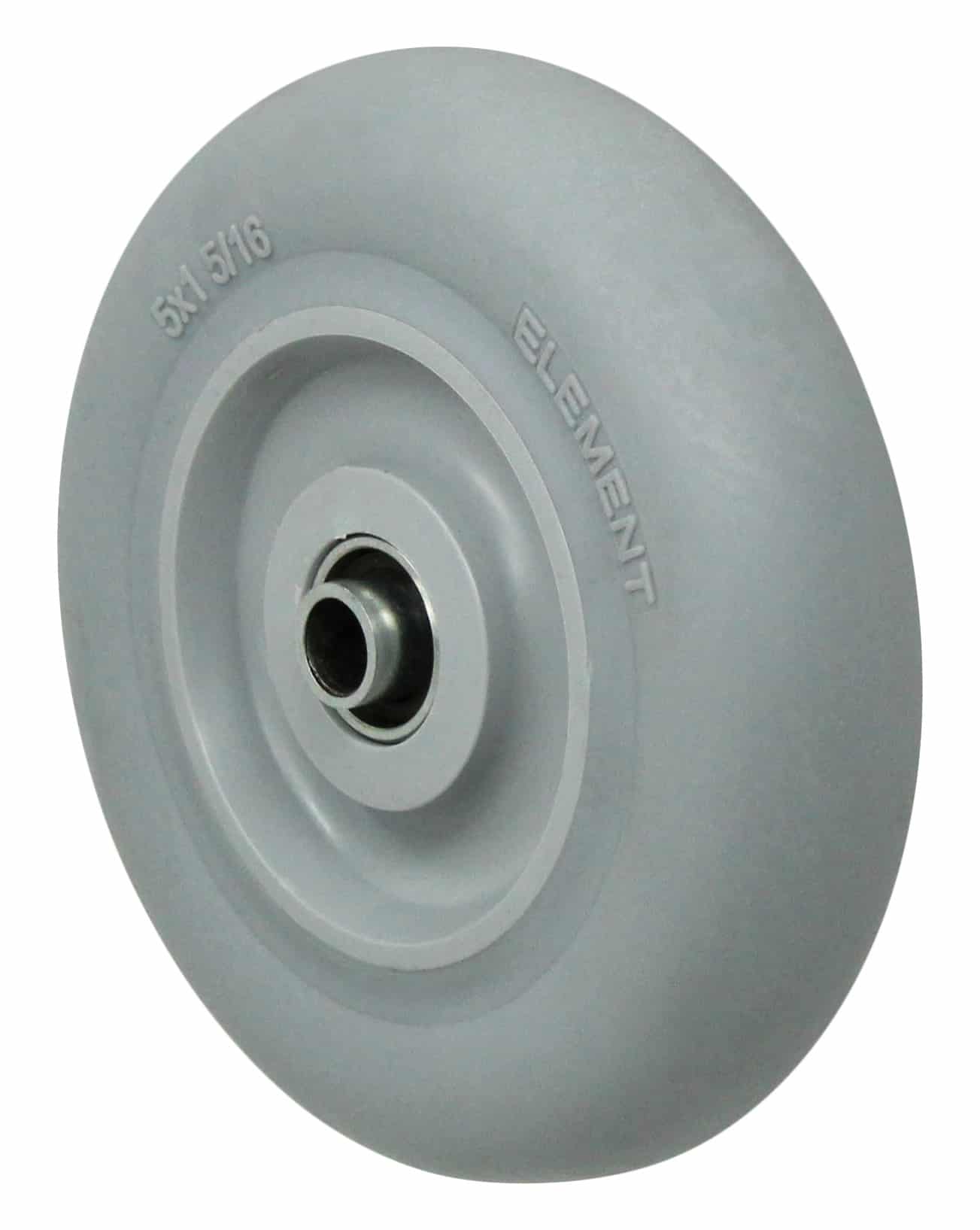

*Photo shown is with the 5″ Wheel* For more information and help placing an order, give us a call at 800-501-3808.
Our #1 goal is to help you find the best caster and wheels for your needs. If you need help finding the right casters, contact our team of professionals. You can also customize many of our casters with a variety of options such as swivel locks, wheel brakes and zerk fittings. We ship our products from assembly plants in Georgia, Pennsylvania, Virginia, Texas, Nevada and Canada. Whether you’re a one-man shop or a global giant, we can provide you with: We specialize in Business to Business, however, consumer orders are gladly accepted and we can provide you with:
- Fastest Lead Time in the Industry
- Caster performance data.
- Comparative data.
- Customized caster solutions.
- Help with caster solutions.
- Case studies by industry or application.
- Manufacturer and Distributor of over $25 million dollars in Finished Component Parts
- Majority of Orders Processed and Shipped in 2 Days or Less
If you have any questions about your measurements, please call 800-501-3808
