4″ Welded Disc Polyurethane Wheel – Stainless Steel Swivel Caster 3A

Name: 4″ Welded Disc Polyurethane Wheel - Stainless Steel Swivel Caster 3A
SKU: SS-3AUS4-S
Availability: InStock

$97.00

PN: SS-3AUS4-S

In Stock

Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)

SKU: SS-3AUS4-S Categories: Swivel Casters, Total Locking Plate Casters

Technical Specifications

Wheel Diameter

Wheel Width

1 1/4

Wheel Bearing

Ball

Maximum Capacity (lbs)

250 lbs

Overall Height

5 1/4"

Swivel Radius

3 1/2

Weight

2.5 lbs

Description

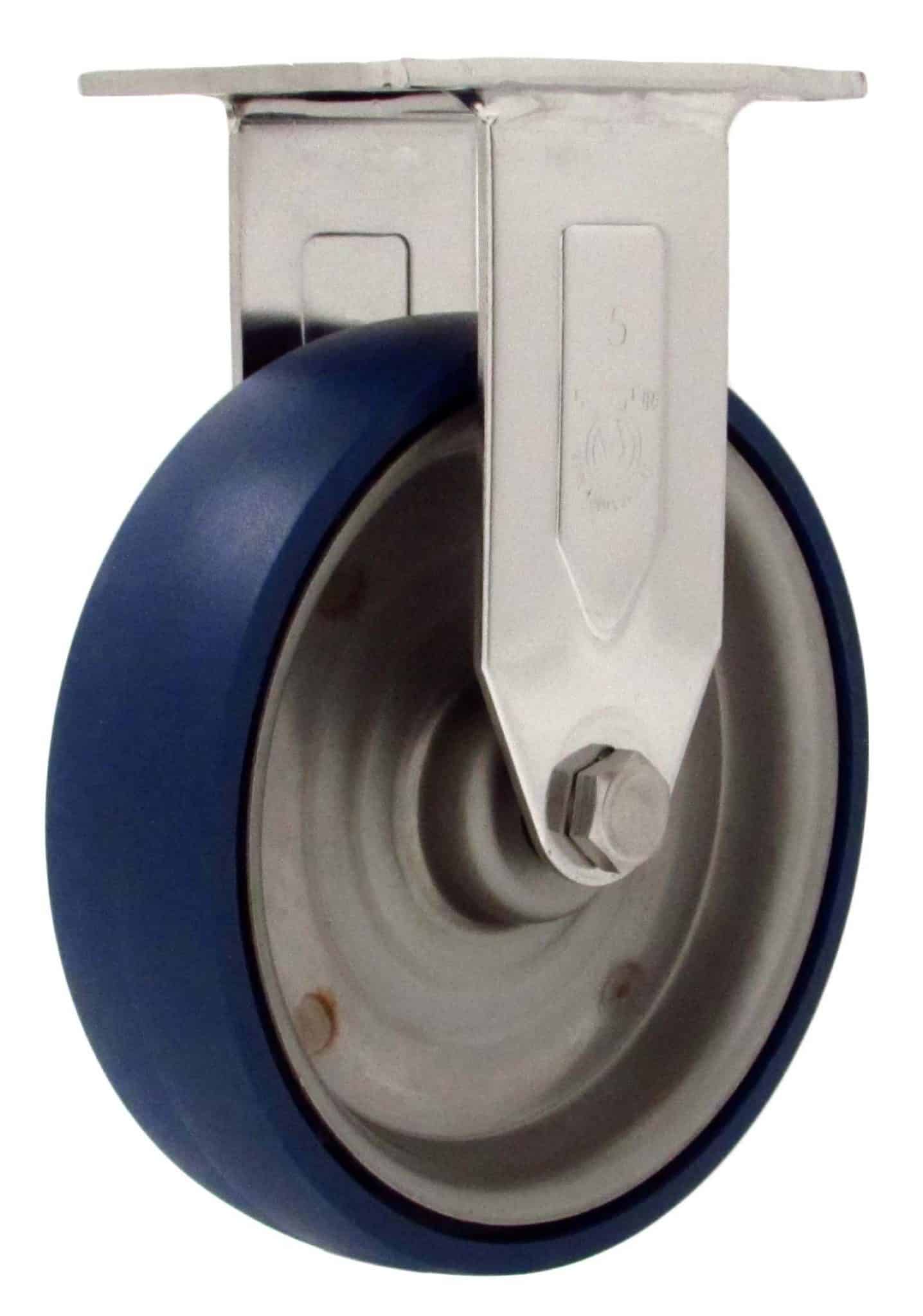

4″ Welded Disc Polyurethane Wheel . Plain Swivel (No brake) . Shown in photo with 5″ wheels. This Total Locking Stainless Caster Model 3A is our stainless steel total locking institutional caster which uses the same Model 3 1-¼” wide wheels. This caster is made using a stamped steel construction. Plate Caster Model 3A has a ⅜” axle and the swivel bearing is held together by a ½” rivet. Plate Caster Model 3A caster brackets have two rows of ball bearings rotating on raceways for smoother swiveling. There is a solid cover over the swivel raceways to shield them from dirt and dust. This plate caster performs best if you limit the load to no more than 1200 lbs on a set of 4 Model 3A casters. The Total Locking Stainless Caster Model 3A is excellent for medical equipment.

Caster City has designed the welded disc polyurethane caster wheels with stainless steel discs, and the liquid caster tire is permanently set between the discs. Caster City has designed this caster wheel to use ⅜” stainless steel annular ball bearings. This caster wheel boasts an attractive appearance and was designed for the test laboratory industry to withstand washdowns and caustic chemical conditions. Caster City has designed this wheel to come in either 4” or 5” diameters and the tire is 1-¼” wide. The welded disc polyurethane wheel has a temperature range of -40°F to +180°F and the durometer of the polyurethane is 95A(+/-5).

Our #1 goal is to help you find the best caster and wheels for your needs. If you need help finding the right casters, contact our team of professionals. You can also customize many of our casters with a variety of options such as swivel locks, wheel brakes and zerk fittings. We ship our products from assembly plants in Georgia, Pennsylvania, Virginia, Texas, Nevada and Canada. Whether you’re a one-man shop or a global giant, we can provide you with: We specialize in Business to Business, however, consumer orders are gladly accepted and we can provide you with:

Fastest Lead Time in the Industry
Caster performance data.
Comparative data.
Customized caster solutions.
Help with caster solutions.
Case studies by industry or application.
Manufacturer and Distributor of over $25 million dollars in Finished Component Parts
Majority of Orders Processed and Shipped in 2 Days or Less

Call us during the design phase of your project, we can help you avoid costly modifications once fabrication has started. We guarantee what we recommend.
