4″ Stainless Welded Disc Polyurethane Swivel Wheel – Stainless Steel Plate K3

$96.00

PN: SS-K3US4X1.25S
In Stock
Volume Pricing on Inquiry. Call us: 800-501-3808

View cart Request for Quote
Volume Pricing on Inquiry. Call us: 800-501-3808
Most of our casters are assembled and dispatched within 24-48 hours.

Technical Specifications

4
Wheel Diameter
4
1 1/4
Wheel Width
1 1/4
Ball
Wheel Bearing
Ball
300 lbs
Maximum Capacity (lbs)
300 lbs
5 1/8"
Overall Height
5 1/8"
3 1/2
Swivel Radius
3 1/2
Weight
Weight
2.75 lbs

Description

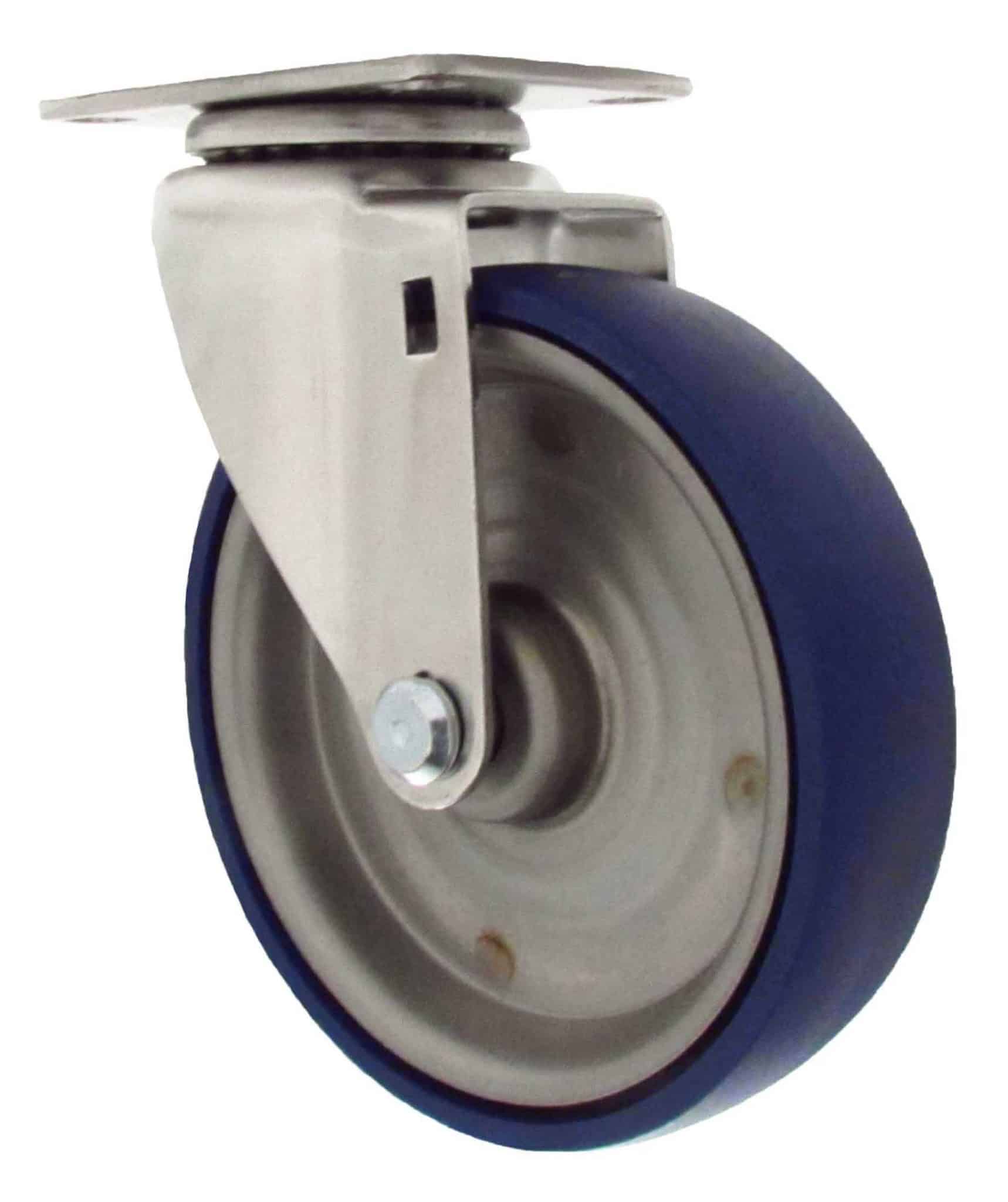

4″ Welded Disc Polyurethane Swivel Wheel.  Shown in photo with 5″ wheels. K3A Stainless Steel Plate is considered our “cheaper priced” line of stainless steel casters. Stainless steel casters are perfect for use in a corrosive or wet settings. This is a light duty caster that has been built for hand powered use only. This plate caster is capable of up to 300lbs of weight per caster with the right wheel selected. The swivel bearing is constructed of a double ball raceway which enables the caster to swivel more easily and change directions. The rigid and swivel caster are constructed from stamped 304 stainless steel. The swivel caster contains a center pin that uses a ½” stainless steel rivet The axle diameter is a 3/8” bolt with a latching nut. You can order an stainless steel lube axle which offers a lubricated fitting in the bolt head to grease the wheel. This stainless steel caster also has a mirror finish available upon request. You can get a large selection of wheels. They are NSF and ROHS compliant. The mounting plate is 2 3/8” x 3 5/8” and the hole pattern is slotted to: 1 3/4” x 2 7/8” – 3” and is designed to use a mounting bolt size of 5/16”. The reason this caster is considered “economy” is lacks the metal shield covering the swivel bearing. K3A Casters also does not come with a lubricated fitting in the swivel bearing. These features are not necessarily negative depending on the application. A metal shield over the swivel bearing can retain water from a wash down which can produce filthy conditions, depending on the use. This caster is ideal for washdown applications such as an animal lab or butcher table. If you must have a lubrication fitting on your stainless steel caster with this plate and bolt hole pattern, please click here for our Stainless Steel Caster Model 3

Welded disc polyurethane swivel wheels are made from 2 stainless steel discs and the polyurethane tire is permanently molded between them. Caster City has designed this caster wheel to use ⅜” stainless steel annular ball bearings. This caster wheel boasts an attractive appearance and was designed for the test laboratory industry to withstand washdowns and caustic chemical conditions. The welded disc polyurethane wheel is available in either 4” or 5” and the tread width is 1-¼”. The welded disc polyurethane wheel has a temperature range of -40°F to +180°F and the durometer of the polyurethane is 95A(+/-5).

Our #1 goal is to help you find the best caster and wheels for your needs. If you need help finding the right casters, contact our team of professionals. You can also customize many of our casters with a variety of options such as swivel locks, wheel brakes and zerk fittings. We ship our products from assembly plants in Georgia, Pennsylvania, Virginia, Texas, Nevada and Canada. Whether you’re a one-man shop or a global giant, we can provide you with: We specialize in Business to Business, however, consumer orders are gladly accepted and we can provide you with:

  • Fastest Lead Time in the Industry
  • Caster performance data.
  • Comparative data.
  • Customized caster solutions.
  • Help with caster solutions.
  • Case studies by industry or application.
  • Manufacturer and Distributor of over $25 million dollars in Finished Component Parts
  • Majority of Orders Processed and Shipped in 2 Days or Less
Call us during the design phase of your project, we can help you avoid costly modifications once fabrication has started. We guarantee what we recommend. Industrial & Heavy Duty Casters | Caster City

If you have any questions about your measurements, please call 800-501-3808
