8″ Crown Tread Red Polyurethane on Iron – Model 9 Swivel Caster
$89.00
In Stock
Optional Add Ons for Caster
Technical Specifications
Wheel Diameter
8
Wheel Width
2
Wheel Bearing
Precision Sealed
Maximum Capacity (lbs)
900 lbs
Overall Height
9 1/2"
Swivel Radius
6.25
Weight
14 lbs
Plate Fastener Type
Mounting Plate, Top Plate
Plate Mounting Type
Top Plate
Weight
14 lbs
Description
DO NOT ORDER SWIVEL LOCK OR RACEWAY SEALS IF YOU ORDER THE TL – TOTAL LOCK BRAKE. THE TL BRAKE WILL NOT WORK WITH EITHER THE SWIVEL LOCK OR RACEWAY SEALS.
Plate Caster Model 9 swivel casters are our most popular industrial caster because of its low initial cost and wide selection of wheels. Under the mounting plate it has 2 rows of balls rotating on heat treated raceways. The swivel has a nut and bolt center pin welded to withstand normal abuse in a manually moved application. The kingpin bolt diameter is 5/8” and the leg thickness is 1/4”, welded on the inside and out. The diameter of the axle is ½” and is designed to use wheels with a hub width of 2 7/16”. This caster is constructed from stamped steel. The metal frames are zinc plated for rust resistance, and it has lubrication fittings for all moveable parts. Model 9 has a broad selection of wheel brakes and swivel locks for most applications. Other mounting plate sizes and wheel bearing types are available on request.
The (“PCI”) crown tread polyurethane on iron industrial caster wheel is an excellent ergonomic choice for maneuvering cargo in tight spaces. This crown-tread caster wheel helps to initiate motion and change directions more easily due to the point contact nature of the caster wheel. The principal benefit of a polyurethane wheel over the same size rubber wheel is increased capacity. The bonding agent which holds the polyurethane tire to the iron center can be affected by exposure to some chemicals, impact, overloading, and the buildup of heat. It comes in 4”, 5” , 6” , and 8” diameters and is equipped with two large precision sealed ball bearings which are completed with top hat spanners for a ½” diameter axle.
This caster is available in Stainless Steel Model 9. It is constructed from 304 Stainless Steel. This is an excellent caster for wet or corrosive applications if your total weight exceeds 1000lbs. It comes with the same large selection of wheels, some of which are also NSF and ROHS compliant.

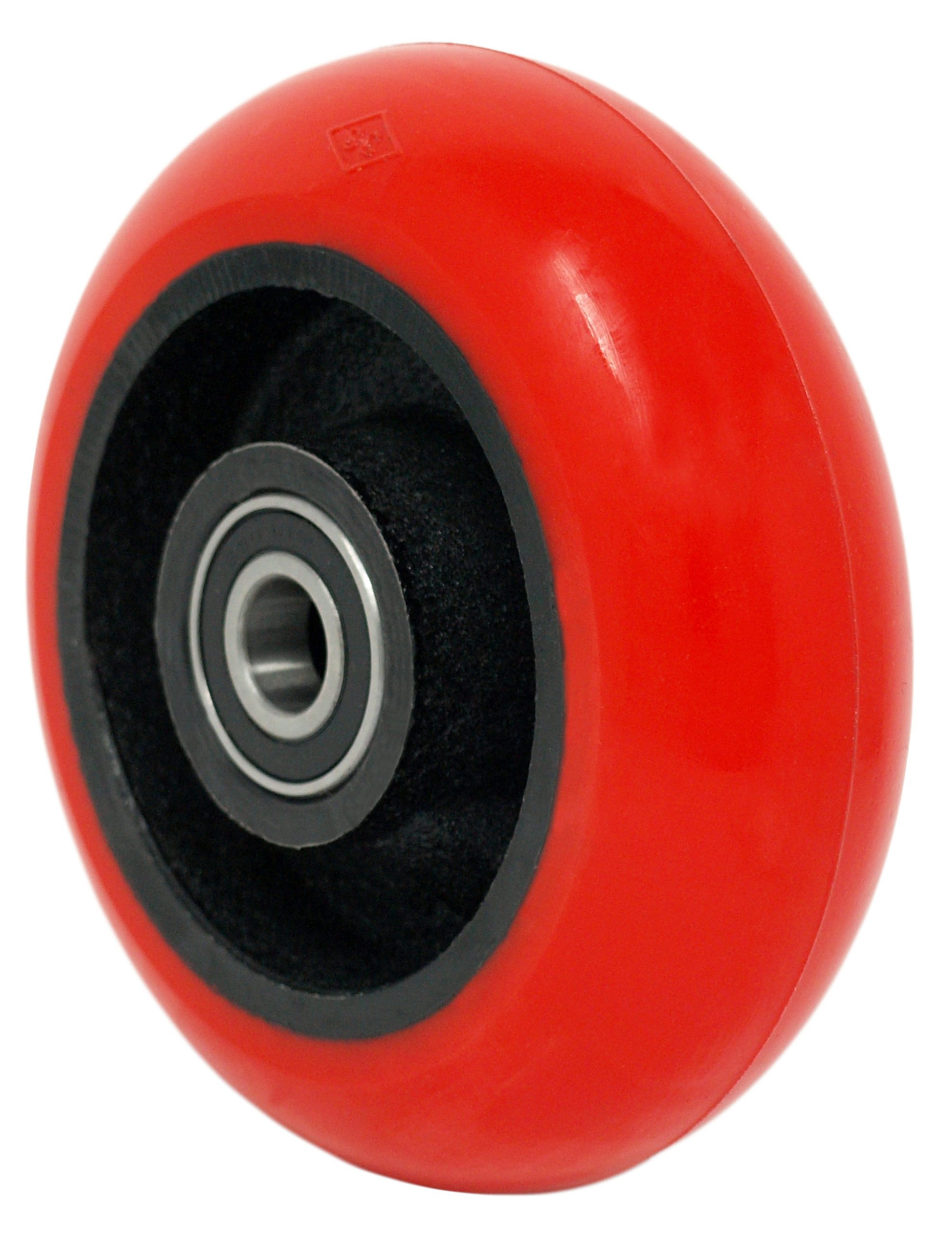

The Photo Displayed on CasterCity.com is the 6″ Caster Wheel.
For more information and help placing an order, give us a call at 800-501-3808.
Our #1 goal is to help you find the best caster and wheels for your needs. If you need help finding the right casters, contact our team of professionals. You can also customize many of our casters with a variety of options such as swivel locks, wheel brakes and zerk fittings. We ship our products from assembly plants in Georgia, Pennsylvania, Virginia, Texas, Nevada and Canada. Whether you’re a one-man shop or a global giant, we can provide you with: We specialize in Business to Business, however, consumer orders are gladly accepted and we can provide you with:
- Fastest Lead Time in the Industry
- Caster performance data.
- Comparative data.
- Customized caster solutions.
- Help with caster solutions.
- Case studies by industry or application.
- Manufacturer and Distributor of over $25 million dollars in Finished Component Parts
- Majority of Orders Processed and Shipped in 2 Days or Less
If you have any questions about your measurements, please call 800-501-3808
