Download STP FileDownload 2D File8″ Gray Soft Rubber Wheel Model Plate 9
$48.96
In Stock
Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)
Technical Specifications
Wheel Diameter
8
Caster City Recommendation
Ollie Recommends!
Non-Marking
Yes
Wheel Width
2
Wheel Bearing
Delrin
Maximum Capacity (lbs)
500 lbs
Overall Height
9 1/2"
Swivel Radius
6 1/4
Color
Gray
Plate Fastener Type
Mounting Plate, Top Plate
Plate Mounting Type
Top Plate
Weight
8 lbs
Description

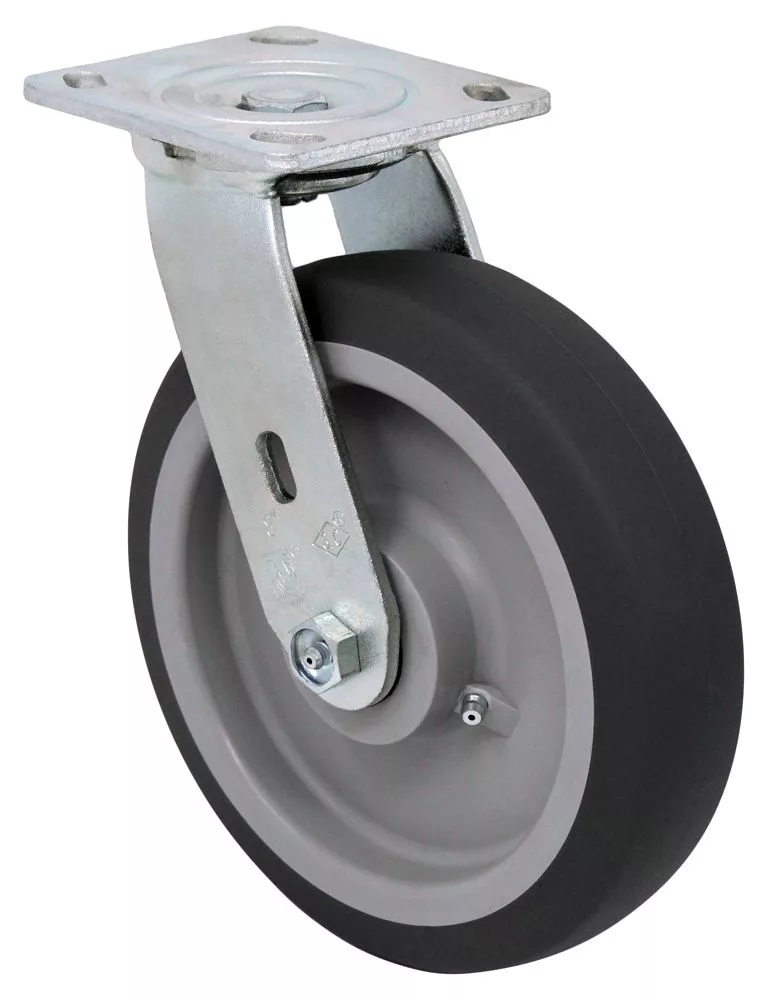

8″ Gray Soft Rubber Wheel. Shown in photo with 6″ x 2″ wheel.
DO NOT ORDER SWIVEL LOCK OR RACEWAY SEALS IF YOU ORDER THE TL – TOTAL LOCK BRAKE. THE TL BRAKE WILL NOT WORK WITH EITHER THE SWIVEL LOCK OR RACEWAY SEALS.
Plate Caster Model 9s are our most popular industrial caster because of its cheap initial cost and large selection of wheels. The mounting plate has 2 rows of balls underneath for turning on heat treated raceways. The swivel has a bolt and nut center pin welded to withstand normal abuse in a manually moved equipment. Features: center bolt diameter – 5/8”, leg thickness – 1/4”; welded on the inside and out, axle diameter – 1/2” long, hub width – 2 7/16”. This plate caster is forged from stamped steel. The metal frames are zinc plated for rust resistance, and it has lubrication fittings for all moveable parts. Model 9 has a wide selection of wheel brakes and swivel locks for most applications. Other mounting plate sizes and wheel bearing types are available on request.

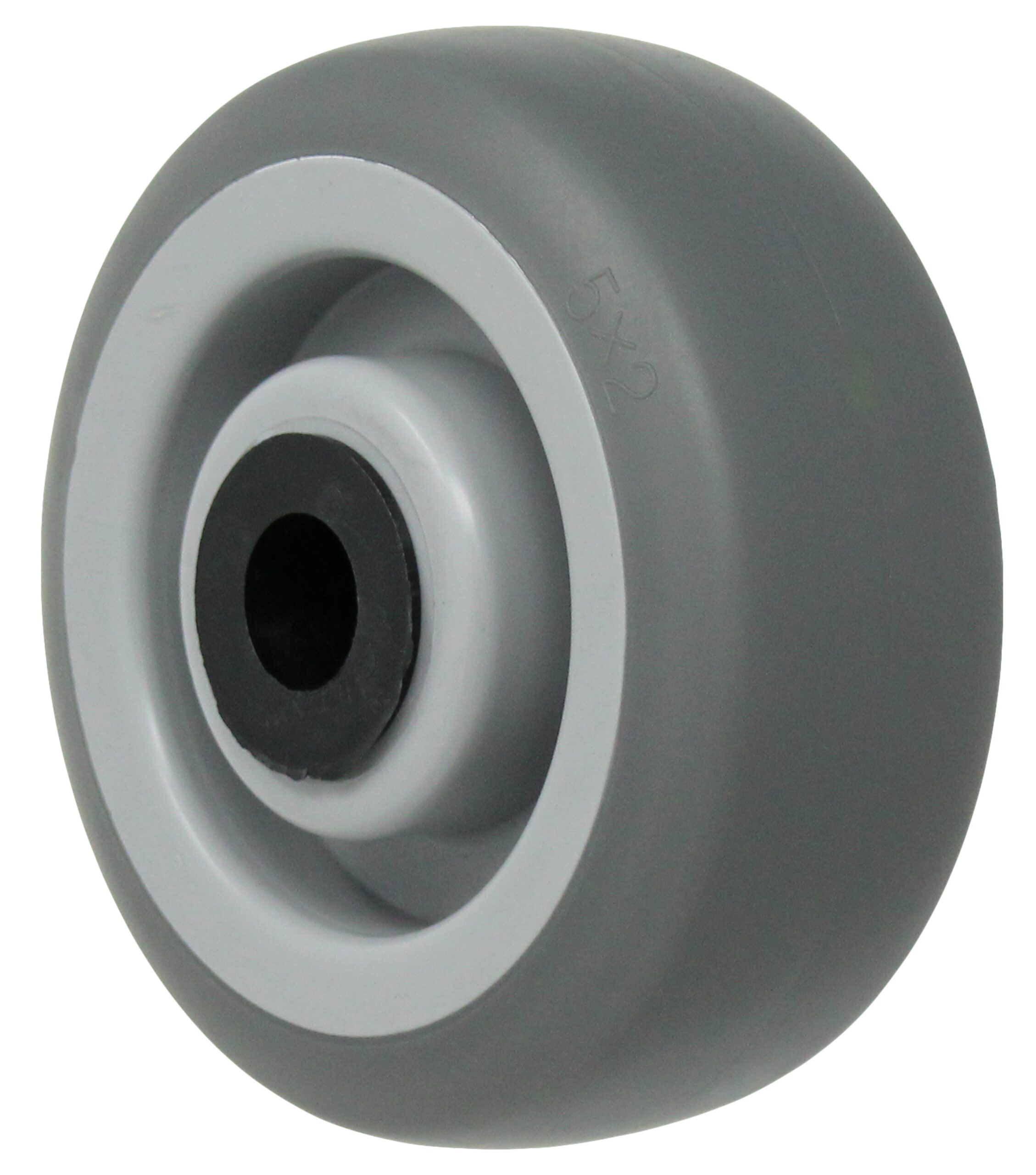

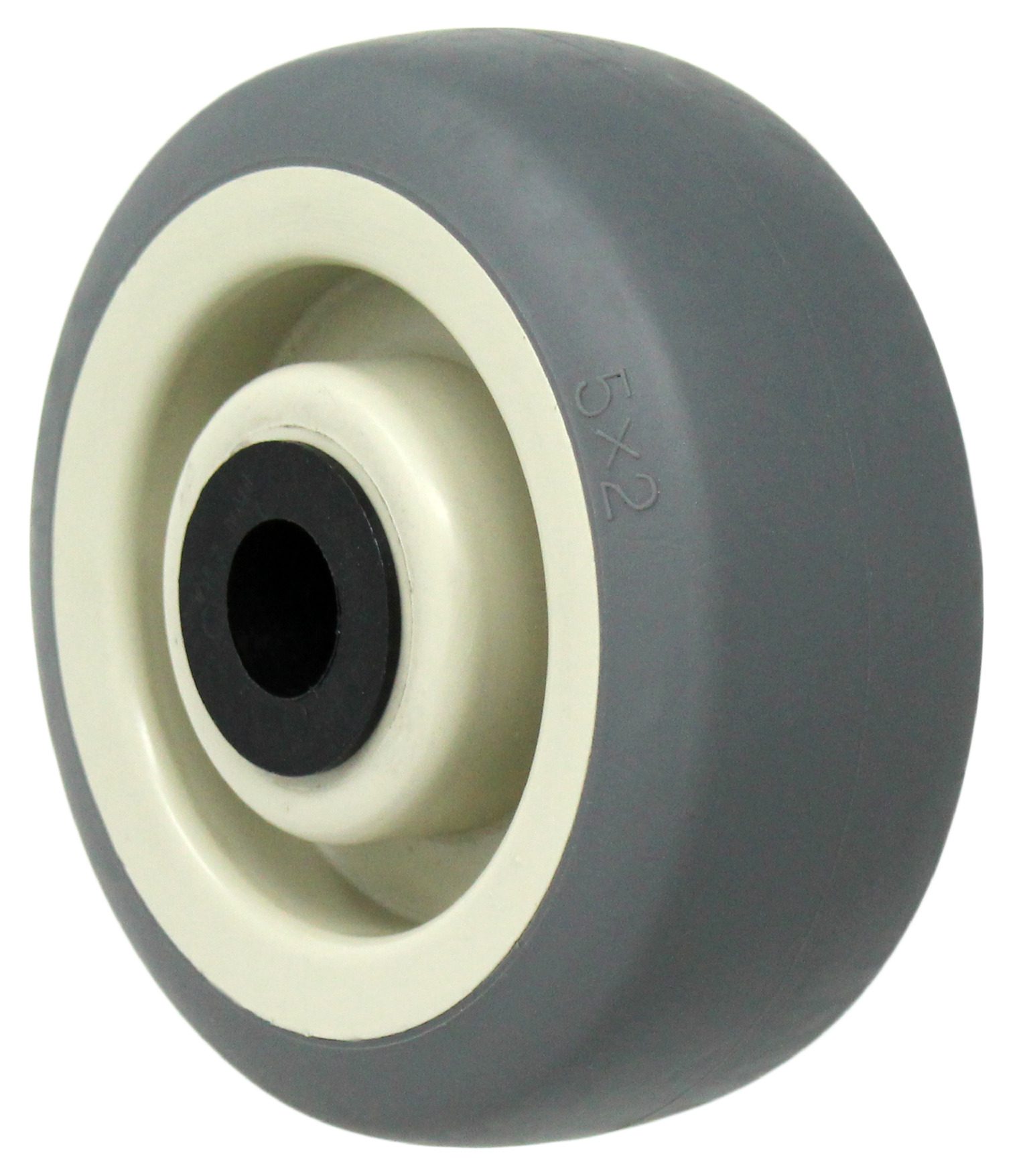

This caster wheel is made of a non-marking gray rubber tire that is mechanically bonded to it’s polyolefin center. This caster wheel is 2” wide and is designed to use a 1/2” axle. These caster wheels should not be left standing under load for extended periods as the tires may take a permanent “set” or develop flat spots.
*This Plate Caster Model 9 contains the 6″ Gray Soft Rubber, Flat Swivel Wheel. Roller Bearing in the Wheel.
The Photo Displayed on CasterCity.com is the 6″ Caster Wheel.

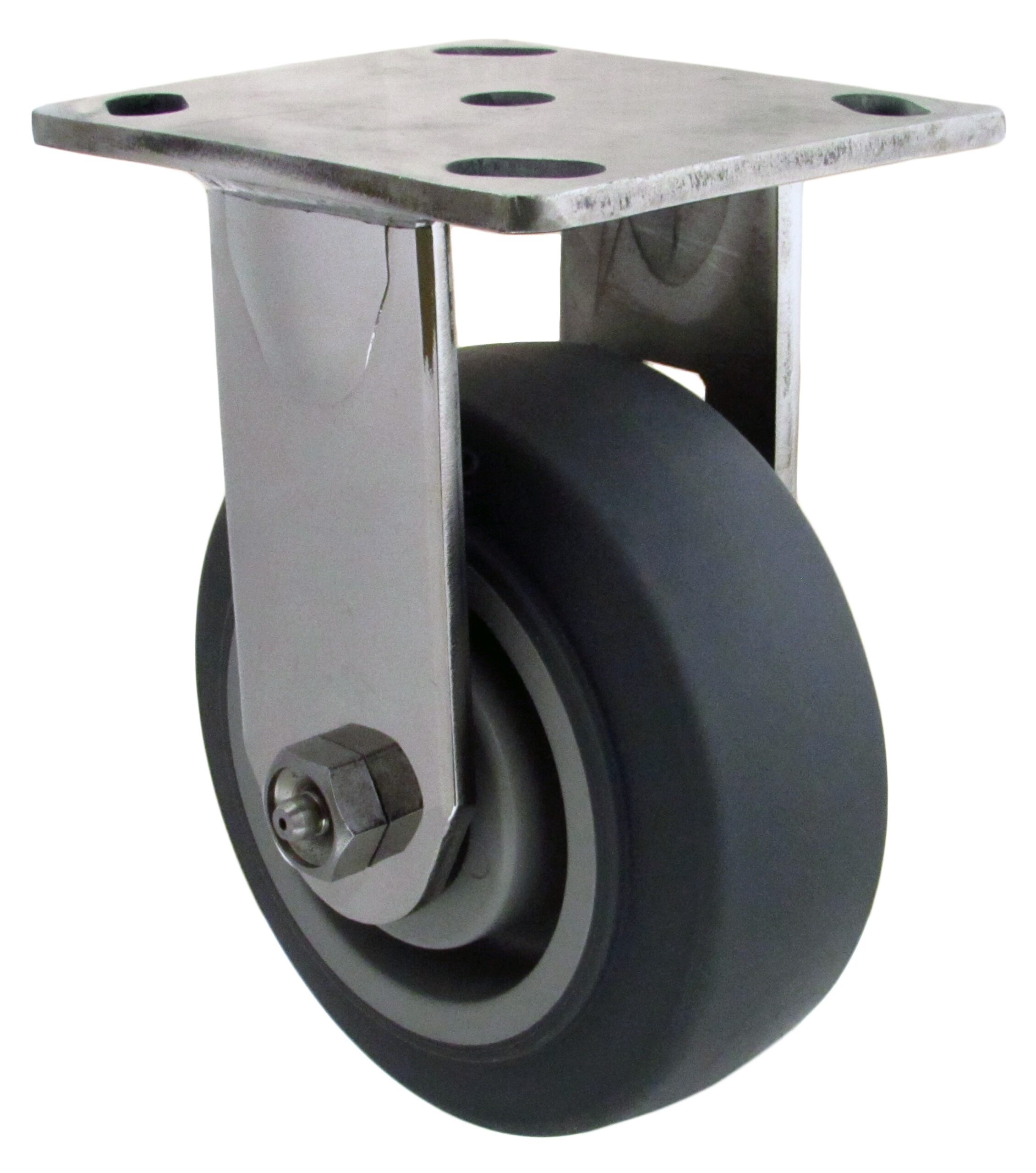

This caster is available in Stainless Steel – click here. This is an excellent caster for wet or corrosive applications if your total weight exceeds 1000lbs. It comes with the same large selection of wheels, some of which are also NSF and ROHS compliant.
For more information and help placing an order, give us a call at 800-501-3808.
FAQ
FAQ – RF Soft Gray Rubber Wheel in Model 9 Caster
What environments is the RF Soft Gray Rubber Wheel best suited for?
The RF Soft Gray Rubber Wheel is ideal for Pharmaceutical Laboratories, Hospitals, Food Service, and other Institutional applications where quiet operation, floor protection, and chemical resistance are priorities.
How does the RF wheel compare to polyurethane wheels?
The RF wheel offers a softer ride than polyurethane, absorbing shock and reducing vibration, which enhances equipment life and protects cargo and floors.
What are the main benefits of the RF wheel in the Model 9 caster?
Pairing the RF wheel with the Model 9 caster provides a non-marking, quiet, and shock-absorbing solution with precision sealed ball bearings that require no maintenance, perfect for sensitive environments.
Are there any limitations to the RF wheel?
Yes, it’s not suited for shock, overloading, abuse, obstructions, poor floors, or prolonged standing loads, as it may develop flat spots. It’s also harder to roll under load—reduce capacity by 50% for manual movement.
Why is the Model 9 caster so popular for industrial use?
The Model 9 caster is favored for its low cost, wide wheel options, and rugged design, featuring 2 rows of balls on heat-treated raceways and a welded nut and bolt kingpin for durability.
Can I use the Model 9 caster with the RF wheel in wet or corrosive conditions?
The standard zinc-plated Model 9 will rust in wet or corrosive environments. Opt for the Stainless Steel Model 9, made from 304 stainless steel, for those conditions.
What maintenance do the RF wheel and Model 9 caster require?
The RF wheel’s precision sealed ball bearings need no maintenance. The Model 9 caster has lubrication fittings for its moving parts, keeping maintenance simple.
How does the Model 9 caster’s swivel mechanism function?
It uses 2 rows of balls on heat-treated raceways with a welded nut and bolt center pin, ensuring smooth swiveling and durability under normal manual use.
What bearings come with the RF wheel?
The RF wheel features precision sealed ball bearings, offering maintenance-free, quiet, and smooth performance.
How do I choose the right RF wheel diameter for manual movement?
For easier manual movement, reduce the load capacity by 50% and select the largest practical wheel diameter to improve rolling efficiency.
