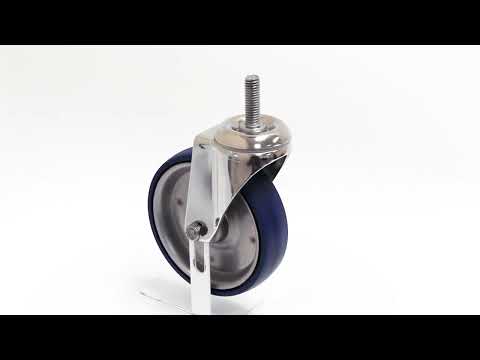

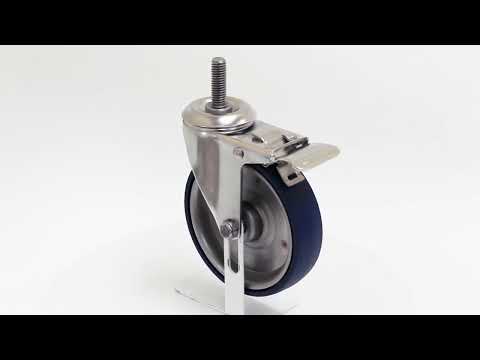

Total Locking Casters – Stainless StemCaster Model 3A

Thumbnail 1
Thumbnail 2
Thumbnail 3

Caster City ships all casters from Texas, Ohio, or Washington.

Capacity up to 300 pounds per caster. These institutional casters are ideal for any light duty application where the caster must be totally immobile when the caster brake is applied. Caster Model 3A has a unique brake which locks both the wheel and the swivel bearing at the same time. This “Total-Lock” brake insures that the swivel caster will not turn when the wheel is locked. This combination wheel brake and swivel lock is essential for safety in some applications – such as on worktables, tablesaws, and medical equipment. The Total-Lock brake is desireable whenever a brake is needed because it makes a swivel caster totally immobile.

Stem Charts

Stem # ID of Tubing Rubber Range ( smallest size to largest size )
ER9 3/4″ .720″ to .851″
ER27 7/8″ .852″ to .927″ fits 1″ O.D. 16 or 18 Gauge
ER28 1″ .928″ to 1.029″
ER7A 1 1/16″ 1.020″ to 1.100
ER29 1 1/8″ 1.100″ to 1.180″
ER17 1 1/4″ 1.178″ to 1.303″
ER25 1 3/8″ 1.360″ to 1.425″
ER26 1 1/2″ 1.426″ to 1.589″ fits 1 5/8″ O.D. 16 or 18 Gauge
ER21 1 13/16″ 1.790″ to 1.850″
Stem # Threaded Stem Size Threaded Stem Length
TS21 1/2″ – 13″ 1″
TS22 1/2″ – 13″ 1 1/2″
TS26N 1/2″ – 13″ 2 3/4″
TS61 3/8″ – 16″ 1″
TSC1 1/2″ – 13″ 4″
TS5/8 5/8″ – 11″ 1 3/4″
TSC2 5/8″ – 11″ 4″
TS3/4 3/4″ – 10″ 1 3/4″
TSC3 3/4″ – 10″ 6″
HK1/2 1/2″ HOLLOW KINGPIN 1/2″ SLIP FIT / HOLE FOR YOUR BOLT

Total Locking Stainless Stem Caster Model 3A Chart
(Click the Part Number to Order)

We do NOT include mounting Hardware.

Desktop: When you put your mouse over the words in the wheel description column you see a picture of the wheel. Click on the part number in the Swivel and Rigid columns to see the complete caster.

Mobile: Hold down your finger on the chart and scroll to the right to click on the part number you would like to order.

Filter through the Available Diameters to find the size you need.

CASTER WHEEL DIAM. TREAD WIDTH WHEEL TREAD MATERIAL Click below for Replacement Wheels STD BRG TYPE MAX CAP. EACH CASTER LBS. SWIVEL CASTER WITH TOTAL LOCKING BRAKE Part Number MATCHING PLAIN SWIVEL CASTER WITH NO BRAKE Part Number APPROX SWIVEL WEIGHT (LBS) OVERALL HEIGHT
3″ 1 1/4″ Gray Rubber Caster Wheels
PS 150 SS-3ARF3X-ML SS-3ARF3X 2 4 1/8″
3″ 1 1/4″ Polyurethane Caster Wheels with Polyolefin Centers
PS 200 SS-3AGP3X-ML SS-3AGP3X 2 4 1/8″
3″ 1 1/4″ Polyurethane Caster Wheels with Polyolefin Centers
PS 200 SS-3ABK3X-ML SS-3ABK3X 2 4 1/8″
3″ 1 1/4″ Polyurethane Caster Wheels with Polyolefin Centers
PS 200 SS-3ABP3X-ML SS-3ABP3X 2 4 1/8″
3″ 1 1/4″ Polyurethane Caster Wheels with Polyolefin Centers
PS 200 SS-3ARG3X-ML SS-3ARG3X 2 4 1/8″
3″ 1 1/4″ All Polyurethane Caster Wheels
D 250 SS-3AAP3X-ML SS-3AAP3X 2 4 1/8″
3″ 1 1/4″ Polyolefin Caster Wheels
P 240 SS-3APB3X-ML SS-3APB3X 2 4 1/8″
CASTER WHEEL DIAM. TREAD WIDTH WHEEL TREAD MATERIAL Click below for Replacement Wheels STD BRG TYPE MAX CAP. EACH CASTER LBS. SWIVEL CASTER WITH TOTAL LOCKING BRAKE Part Number MATCHING PLAIN SWIVEL CASTER WITH NO BRAKE Part Number APPROX SWIVEL WEIGHT (LBS) OVERALL HEIGHT
4″ 1 1/4″ Gray Rubber Caster Wheels
PS 200 SS-3ARF4X-ML SS-3ARF4X 2 5 1/8″
4″ 1 1/4″ Polyurethane Caster Wheels with Polyolefin Centers
PS 250 SS-3AGP4X-ML SS-3AGP4X 2 5 1/8″
4″ 1 1/4″ Polyurethane Caster Wheels with Polyolefin Centers
PS 250 SS-3ABK4X-ML SS-3ABK4X 2 5 1/8″
4″ 1 1/4″ Polyurethane Caster Wheels with Polyolefin Centers
PS 250 SS-3ABP4X-ML SS-3ABP4X 2 5 1/8″
4″ 1 1/4″ Polyurethane Caster Wheels with Polyolefin Centers
PS 250 SS-3ARG4X-ML SS-3ARG4X 2 5 1/8″
4″ 1 1/4″ All Polyurethane Caster Wheels
D 300 SS-3AAP4X-ML SS-3AAP4X 2 5 1/8″
4″ 1 1/4″ All Polyurethane Caster Wheels
B 250 SS-3AUS4X-ML SS-3AUS4X 2 5 1/8″
4″ 1 1/4″ Polyolefin Caster Wheels
P 300 SS-3APB4X-ML SS-3APB4X 2 5 1/8″
CASTER WHEEL DIAM. TREAD WIDTH WHEEL TREAD MATERIAL Click below for Replacement Wheels STD BRG TYPE MAX CAP. EACH CASTER LBS. SWIVEL CASTER WITH TOTAL LOCKING BRAKE Part Number MATCHING PLAIN SWIVEL CASTER WITH NO BRAKE Part Number APPROX SWIVEL WEIGHT (LBS) OVERALL HEIGHT
5″ 1 1/4″ Gray Rubber Caster Wheels
PS 250 SS-3ARF5X-ML SS-3ARF5X 6 1/4″ 9 1/2″
5″ 1 1/4″ Polyurethane Caster Wheels with Polyolefin Centers
PS 250 SS-3AGP5X-ML SS-3AGP5X 6 1/4″ 9 1/2″
5″ 1 1/4″ Polyurethane Caster Wheels with Polyolefin Centers
PS 250 SS-3ABK5X-ML SS-3ABK5X 6 1/4″ 9 1/2″
5″ 1 1/4″ Polyurethane Caster Wheels with Polyolefin Centers
PS 250 SS-3ABP5X-ML SS-3ABP5X 6 1/4″ 9 1/2″
5″ 1 1/4″ Polyurethane Caster Wheels with Polyolefin Centers
PS 250 SS-3ARG5X-ML SS-3ARG5X 6 1/4″ 9 1/2″
5″ 1 1/4″ All Polyurethane Caster Wheels
D 300 SS-3AAP5X-ML SS-3AAP5X 6 1/4″ 9 1/2″
5″ 1 1/4″ All Polyurethane Caster Wheels
B 300 SS-3AUS5X-ML SS-3AUS5X 6 1/4″ 9 1/2″
5″ 1 1/4″ Polyolefin Caster Wheels
P 300 SS-3APB5X-ML SS-3APB5X 6 1/4″ 9 1/2″

Types of Wheels for the Total Locking Stainless StemCaster Model 3A:

Total Locking Stainless Stem Caster Model 3A Features:

img Up to 300lbs per each caster
img The caster brackets are made of stamped 304 stainless steel.
img Swivels bearings are standard with a seal and grease fitting.
img Gray Soft Rubber and Polyurethane wheels have a sealed precision ball bearing.
img Swivel Radius for Casters with the Total-Lock Brake – ALL SIZES – 4 3/8″

Use the Polyolefin ( Industrial Plastic ) wheel for “Standing Loads”. Polyolefin wheels eliminate the possiblilty of a flat spot developing on the surfiace of polyurethane and rubber tires when the weight exceeds 2/3 of the rated capacity when the object is left parked most of the time.

Threaded Stem Casters should NOT be used as a “Leveling Device”! Capacity ratings are based on the weight being directly on the top of the swivel bearing, not somewhere above it on the threaded stem.

Swivel Radius for Casters with the Total-Lock Brake – ALL SIZES – 4 3/8″

Combination Wheel Brake and Swivel Lock

This brake simultaneously locks the wheel and the swivel. One step on the activating pedal instantly locks the entire caster holding the equipment firmly in place. One step on the release pedal frees the swivel and wheel.
