5″ Economy Stainless Phenolic Wheel – Stainless Steel Plate K3
$37.74
In Stock
Please select any add ons you require for your caster and if you are selecting multiple option types, add all of the quantity for the first choice and then make your selections for the second, third, fourth, etc… choices. (Example: 2 With Brakes and 2 Without Brakes)
Technical Specifications
Wheel Diameter
5"
Caster City Recommendation
Ollie Recommends!
Non-Marking
Yes
Stainless Steel Grade
304 Stainless Steel
ISO 9001
ISO 9001:2015 Certified
Wheel Width
1.25"
Wheel Bearing
Plain Bore
Maximum Capacity (lbs)
350 lbs
Overall Height
6-1/8"
Color
Black
Weight
3 lbs
Description

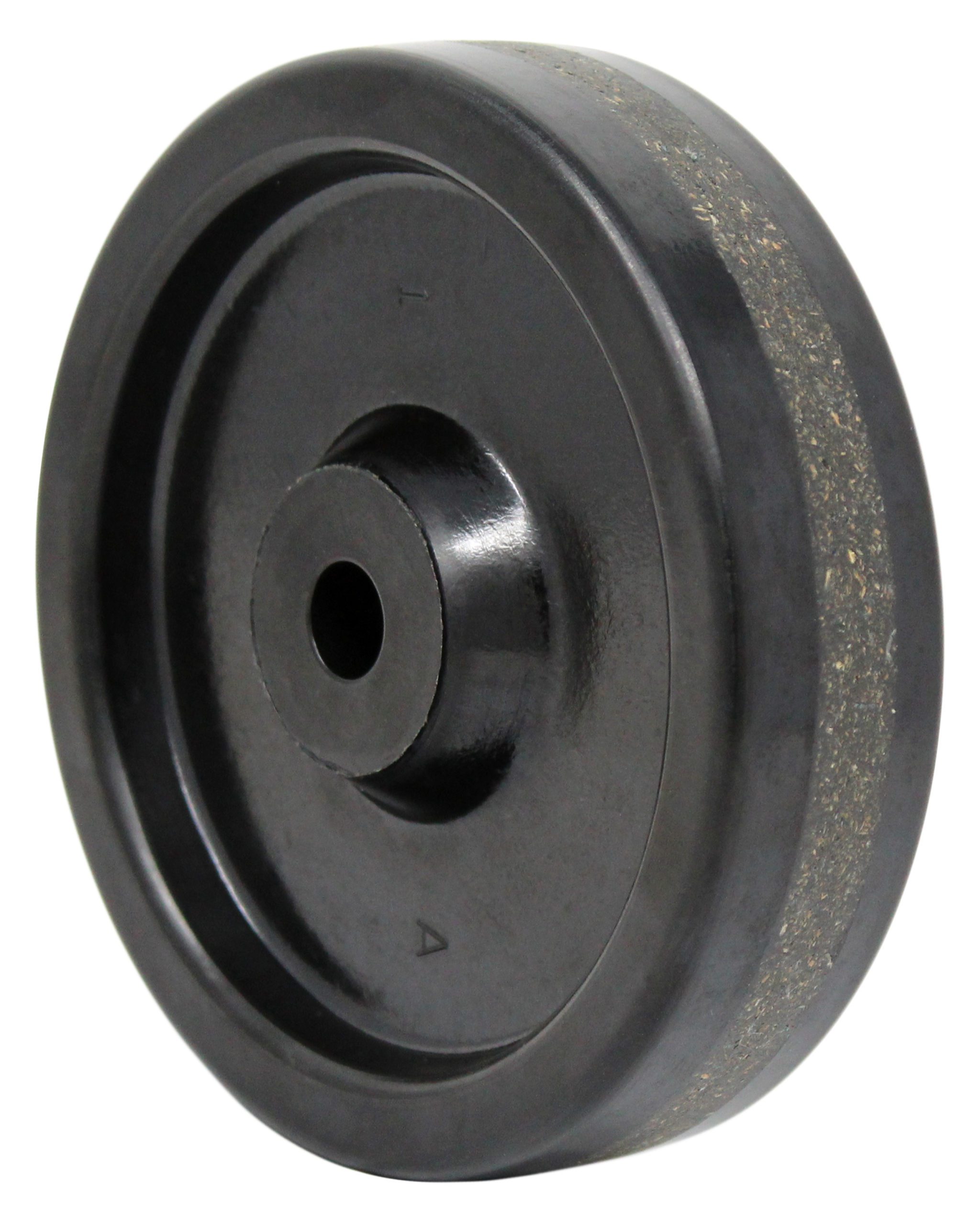

5″ Phenolic. Shown in photo with 5″ wheels. Stainless Steel Rigid Caster are built with stamped 304 stainless steel. The K3A rigid is a cold forged one piece construction. The mounting plate is 2 3/8” x 3 5/8” and the hole pattern is slotted to : 1 3/4” x 2 7/8” – 3”. This rigid caster is chosen when you need to steer in a direct line and you do not require swivel capabilities. This rigid caster uses a 3/8” diameter axle bolt with a latching nut. You can order a lube axle with a grease fitting in the bold head if you need to grease a wheel This caster was designed for hand powered applications only. It is not built to handle industrial abuse in any way or kind When hand powering loads, choose the bigger practical diameter. K3A rigid caster and some of the wheels it offers are NSF and ROHS compliant.
Phenolic caster wheels are a hard composition, non-marking wheel that is excellent for large loads that do not move often. Phenolic caster wheels are capable of withstanding the impact shocks of obstructions or shock loads, and will not develop a flat spot if left parked for a prolonged period. Phenolic can absorb water and other chemicals if excessive exposure occurs. Phenolic caster wheels come standard with a roller bearing and have precision sealed ball bearings as an option. This wheel comes in diameters ranging from 3” to 18” and the width of the wheels ranges from 1-¼” to 4”. A phenolic wheel has a temperature range is -40° to +250° F and a Durometer of Shore D 90. Contact us if you need help with placing an order: 800-501-3808
Phenolic Caster Wheels from Caster City
Our Phenolic Caster Wheels, made from macerated canvas mixed with phenolic resin and molded under high pressure and temperature are a cost-effective, hard-composition, non-marking solution ideal for supporting heavy stationary loads that move infrequently. With a hardness comparable to polished maple flooring and a Durometer of Shore D 90, these wheels are designed to handle large loads comparable to metal wheels without developing flat spots, even when parked for prolonged periods under load. Available in diameters from 3” to 18” and widths from 1-¼” to 4”, they come standard with roller bearings or optional precision sealed ball bearings, making them perfect for smooth concrete surfaces in industrial settings like warehouses or manufacturing facilities.
These phenolic caster wheels are highly resistant to oil, grease, gasoline, and mild acids, and can withstand shock loads and impacts from small obstructions. They are recommended for storage loads without permanent set and offer slight floor wear, except on already deteriorating surfaces. For enhanced performance, a laminated unmacerated tread option provides 25% more capacity and greater chip resistance, though the wheel material may chip or cut from contact with steel plates or rough surfaces. With a temperature range of -40°F to +250°F, and intermittent use up to 300°F, these wheels are built for durability in dry environments where they excel in supporting heavy static loads.
While Phenolic Caster Wheels are tough and versatile, they are not suitable for wet applications or environments with excessive exposure to water, oil, or chemicals, as they can slowly absorb these substances and fail over time. For applications involving routine moisture or strong acids and alkaline solutions, consider alternative wheel materials. Ideal for dry, high-capacity settings requiring impact resistance and floor protection, these wheels are a reliable, economical choice. Contact Caster City at 800-501-3808 for assistance with custom configurations or to place an order for our durable Phenolic Caster Wheels.
FAQ
Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel FAQ
What is the Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel used for?
It’s an economy stainless steel plate caster designed for sanitary and washdown applications in settings like pharmaceutical labs hospitals food processing plants animal labs and butcher tables. With a 304 stainless steel frame and TM – Phenolic Wheel this stainless steel caster offers durable operation in wet or corrosive environments.
How much weight can the Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel hold?
The Economy Stainless Steel Plate Caster SS-K3 and the TM – Phenolic Wheel both support up to 300 lbs per caster across all sizes (3” 4” 5”). It’s not recommended for shock overloading abuse obstructions rough floors or prolonged standing loads.
What wheel sizes are available for the Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel?
The TM – Phenolic Wheel for the Economy Stainless Steel Plate Caster SS-K3 comes in diameters of 3” 4” and 5” with a tread width of 1-¼”. Pick the size based on your load and floor type—larger diameters like 5” make it easier to roll on smooth surfaces.
What materials are used in the Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel?
The Economy Stainless Steel Plate Caster SS-K3 frame is crafted from stamped 304 stainless steel for rust and corrosion resistance with a double ball raceway a ½” stainless steel rivet center pin and a 3/8” axle bolt with a latching nut. The TM – Phenolic Wheel is made from resin-impregnated canvas offering high impact resistance and durability for light loads.
How does the Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel mount to equipment?
The Economy Stainless Steel Plate Caster SS-K3 mounts via a top plate with a size of 2-3/8″ x 3-5/8″ bolt hole spacing of 1-3/4” x 2-7/8” to 3” and uses 5/16″ mounting bolts making it a solid fit for light equipment like carts or tables in sanitary settings.
What makes the TM – Phenolic Wheel on the Economy Stainless Steel Plate Caster SS-K3 special?
The TM – Phenolic Wheel on the Economy Stainless Steel Plate Caster SS-K3 is built for durability and longevity resisting chemicals moisture and high temperatures up to 250°F. It excels at standing loads without deforming over time making it great for warehousing and lasting many years on smooth surfaces but can be harder on floors compared to softer wheels and isn’t suited for shock overloading abuse obstructions or rough floors.
What bearings are used in the TM – Phenolic Wheel for the Economy Stainless Steel Plate Caster SS-K3?
The TM – Phenolic Wheel for the Economy Stainless Steel Plate Caster SS-K3 always uses a plain bore with no bearings ensuring simplicity and compatibility with the 3/8” axle bolt in washdown environments.
What add-on options are available for the Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel?
The Economy Stainless Steel Plate Caster SS-K3 has no add-on options other than an optional stainless steel lube axle which offers a lubricated fitting in the bolt head to grease the wheel ensuring smooth operation in sanitary settings.
Can the Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel handle wet or corrosive environments?
Yes the Economy Stainless Steel Plate Caster SS-K3 with its 304 stainless steel frame is ideal for wet or corrosive environments like food processing plants hospitals animal labs or butcher tables. The TM – Phenolic Wheel resists moisture and chemicals well though it can absorb them with tremendous exposure making it great for harsh conditions with a temperature range of -50°F to 250°F.
Are the TM – Phenolic Wheels in the Economy Stainless Steel Plate Caster SS-K3 safe for factory floors?
The TM – Phenolic Wheel in the Economy Stainless Steel Plate Caster SS-K3 can be harder on factory floors compared to softer wheels like polyurethane and may cause marking or damage. It shines on smooth dry floors but isn’t suited for rough uneven or cluttered surfaces which can hurt its performance and lifespan.
What are the top applications for the TM – Phenolic Wheel in the Economy Stainless Steel Plate Caster SS-K3?
These wheels in the Economy Stainless Steel Plate Caster SS-K3 excel in pharmaceutical labs hospitals food processing plants animal labs and butcher tables for moving light equipment in washdown areas and institutional settings for warehousing needs. They’re built for clean sanitary environments with smooth floors not for heavy shock or abuse.
Can the Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel handle abusive conditions?
No this stainless steel caster is designed for clean sanitary environments not abusive conditions. The TM – Phenolic Wheel isn’t suited for shock overloading abuse obstructions rough floors or prolonged standing loads—it’s best for smooth dry floors in settings like labs hospitals or food plants where durability and hygiene are key.
Why are economy stainless steel casters like the Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel good for material handling?
Economy stainless steel casters like the SS-K3 are great for material handling in sanitary settings because they’re cost-effective and built for washdown environments with a drain hole to prevent water buildup. The TM – Phenolic Wheel’s durability and resistance to chemicals make it reliable for moving light carts or equipment in hospitals labs or food plants.
Which industries use the Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel?
The Economy Stainless Steel Plate Caster SS-K3 is used in pharmaceutical labs hospitals food processing plants animal labs butcher tables institutional settings steel mills power plants chemical plants oil rigs mining operations heavy equipment manufacturing logistics hubs automotive aerospace boat building observatories and material handling. It’s perfect for sanitary applications requiring corrosion resistance and durability at a lower cost.
How do I maintain the Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel?
The Economy Stainless Steel Plate Caster SS-K3 lacks a grease fitting in the swivel bearing to reduce cost and maintenance making it ideal for washdown settings. For wheels with the optional lube axle grease as needed to ensure smooth operation. The TM – Phenolic Wheel with its plain bore requires no additional maintenance.
Can the Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel be used with powered equipment?
No the Economy Stainless Steel Plate Caster SS-K3 is designed for hand-powered use only due to its light-duty construction. For powered setups consider a different caster model and call Caster City at 800-501-3808 for recommendations.
What is the top plate size of the Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel?
The top plate for the Economy Stainless Steel Plate Caster SS-K3 is 2-3/8″ x 3-5/8″ with bolt hole spacing of 1-3/4” x 2-7/8” to 3” and uses 5/16″ mounting bolts making it a solid fit for light equipment like carts or tables in sanitary settings.
Why is there no grease fitting on the Economy Stainless Steel Plate Caster SS-K3?
The Economy Stainless Steel Plate Caster SS-K3 skips the grease fitting in the swivel bearing to cut costs and maintenance making it a budget-friendly choice for washdown applications where lubrication isn’t practical like animal labs or food plants.
How does the swivel design of the Economy Stainless Steel Plate Caster SS-K3 prevent water collection?
With no metal shield over the double ball raceway and a drain hole in the swivel bearing the Economy Stainless Steel Plate Caster SS-K3 allows water to flow right through preventing buildup and keeping conditions hygienic in wet settings like butcher tables or food processing plants.
Where can I buy the Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel?
You can buy the Economy Stainless Steel Plate Caster SS-K3 directly on this site or check out more details here. For custom setups or questions call Caster City at 800-501-3808 or email sales@castercity.com—they’ll get you the right caster.
When was this FAQ last updated?
This FAQ was last updated at 11:25 PM PDT on Wednesday June 04 2025.
Key Features of the Economy Stainless Steel Plate Caster SS-K3 with TM – Phenolic Wheel
- Construction: Stamped 304 stainless steel double ball raceway ½” stainless steel rivet center pin 3/8” axle bolt with latching nut NSF and ROHS compliant
- Weight Capacity: Up to 300 lbs per caster (bracket and wheel both rated at 300 lbs)
- Wheel Sizes: 3” 4” 5” diameters 1-¼” wide
- Wheel Material: Resin-impregnated canvas phenolic
- Bearings: Plain bore only
- Add-On Options: Optional stainless steel lube axle
- Top Plate: 2-3/8″ x 3-5/8″ bolt hole spacing 1-3/4” x 2-7/8” to 3” 5/16″ bolts
- Applications: Pharmaceutical labs, hospitals, food processing plants, animal labs, butcher tables, institutional settings, steel mills, power plants, chemical plants, oil rigs, mining operations, heavy equipment manufacturing, logistics hubs, automotive, aerospace, boat building, observatories, material handling
