Plate Caster Model K3

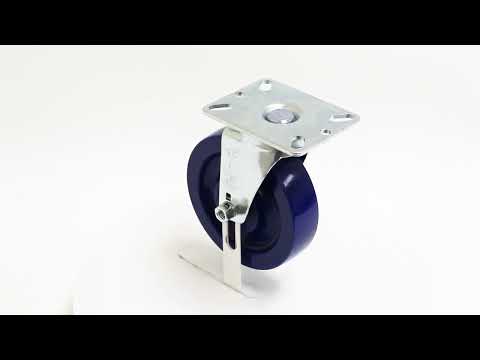

Thumbnail 1

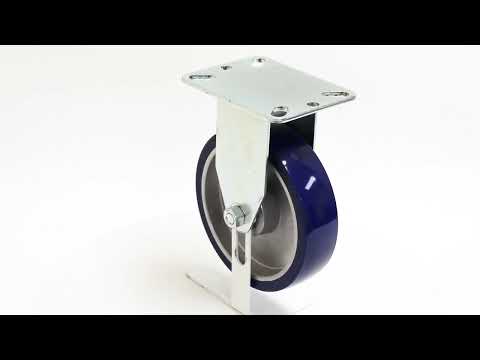

Thumbnail 2

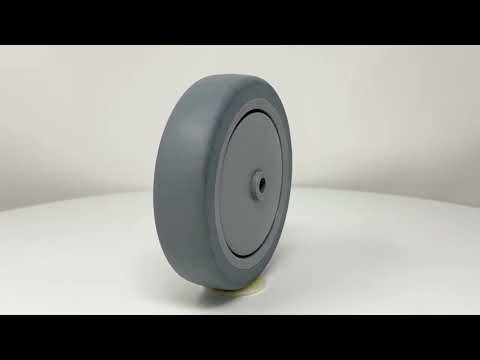

Thumbnail 3

Plate Caster Model K3 Chart
(Click the Part Number to Order)

Desktop: When you put your mouse over the words in the wheel description column you see a picture of the wheel. Click on the part number in the Swivel and Rigid columns to see the complete caster.

Mobile: Hold down your finger on the chart and scroll to the right to click on the part number you would like to order.

Filter through the Available Diameters to find the size you need.

CASTER WHEEL DIAM. TREAD WIDTH WHEEL TREAD MATERIAL Click below for Replacement Wheels
 STD BRG TYPE MAX CAP. EACH CASTER LBS. SWIVEL CASTER Part Number RIGID CASTER Part Number APPROX SWIVEL WEIGHT (LBS) APPROX SWIVEL RADIUS OVERALL HEIGHT
3″ 1 1/4″ Gray Soft Rubber
PS 150 K3RF3X1.25-S3 K3RF3X1.25-R3 1 3/4″ 2 7/8″ 4 1/8″
3″ 1 1/4″ High Capacity Rubber
B 200 K3RH3X1.25B-S3 K3RH3X1.25B-R3 1 3/4″ 2 7/8″ 4 1/8″
3″ 1 1/4″ Gray Polyurethane
PS 200 K3GP3X1.25-S3 K3GP3X1.25-R3 1 3/4″ 2 7/8″ 4 1/8″
3″ 1 1/4″ Black/Gray Polyurethane
PS 200 K3BK3X1.25-S3 K3BK3X1.25-R3 1 3/4″ 2 7/8″ 4 1/8″
3″ 1 1/4″ Blue/Gray Polyurethane
PS 200 K3BP3X1.25-S3 K3BP3X1.25-R3 1 3/4″ 2 7/8″ 4 1/8″
3″ 1 1/4″ Red/Gray Polyurethane
PS 200 K3RG3X1.25-S3 K3RG3X1.25-R3 1 3/4″ 2 7/8″ 4 1/8″
3″ 1 1/4″ Ultra Premium Orange Polyurethane
PS 350 K3UXY3x1.25-S3 K3UXY3x1.25-R3 1 3/4″ 2 7/8″ 4 1/8″
3″ 1 1/4″ All Polyurethane
D 200 K3AP3X1.25-S3 K3AP3X1.25-R3 1 3/4″ 2 7/8″ 4 1/8″
3″ 1 1/4″ Blue Polyurethane on Aluminum
B 250 K3PA3X1.25-S3 K3PA3X1.25-R3 1 3/4″ 2 7/8″ 4 1/8″
3″ 1 1/4″ Polyolefin – Black
P 250 K3PB3X1.25-S3 K3PB3X1.25-R3 1 3/4″ 2 7/8″ 4 1/8″
3″ 1 1/4″ Polyolefin – Black Donut
B 250 K3PB3X1.25B-S3 K3PB3X1.25B-R3 1 3/4″ 2 7/8″ 4 1/8″
3″ 1 1/4″ Nylon ( White )
B 300 K3NY3X1.25B-S3 K3NY3X1.25B-R3 1 3/4″ 2 7/8″ 4 1/8″
3″ 1 1/4″ Phenolic
P 250 K3TM3X1.25-S3 K3TM3X1.25-R3 1 3/4″ 2 7/8″ 4 1/8″
3″ 1 1/4″ Hard Rubber
B 200 K3RN3X1.25-S3 K3RN3X1.25-R3 1 3/4″ 2 7/8″ 4 1/8″
3″ 1 1/4″ Gray Iron
P 250 K3CL3X1.25-S3 K3CL3X1.25-R3 1 3/4″ 2 7/8″ 4 1/8″
3″ 1 1/4″ High Temp Phenolic – Fiberglass
P 250 K3TP3X1.25-S3 K3TP3X1.25-R3 1 3/4″ 2 7/8″
CASTER WHEEL DIAM. TREAD WIDTH WHEEL TREAD MATERIAL Click below for Replacement Wheels
 STD BRG TYPE MAX CAP. EACH CASTER LBS. SWIVEL CASTER Part Number RIGID CASTER Part Number APPROX SWIVEL WEIGHT (LBS) APPROX SWIVEL RADIUS OVERALL HEIGHT
4″ 1 3/8″ Blue Soft Rubber
RB 350 K3RC4X1.375-S3 K3RC4X1.375-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ Gray Soft Rubber
PS 200 K3RF4X1.25-S3 K3RF4X1.25-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ High Capacity Rubber
B 250 K3RH4X1.25B-S3 K3RH4X1.25B-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ Gray Polyurethane
PS 250 K3GP4X1.25-S3 K3GP4X1.25-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ Black/Gray Polyurethane
PS 250 K3BK4X1.25-S3 K3BK4X1.25-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ Blue/Gray Polyurethane
PS 250 K3BP4X1.25-S3 K3BP4X1.25-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ Red/Gray Polyurethane
PS 250 K3RG4X1.25-S3 K3RG4X1.25-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ Ultra Premium Orange Polyurethane
PS 350 K3UXY4x1.25-S3 K3UXY4x1.25-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ All Polyurethane
D 250 K3AP4X1.25-S3 K3AP4X1.25-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ Blue Polyurethane on Aluminum
B 300 K3PA4X1.25-S3 K3PA4X1.25-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ Polyolefin – Black
P 300 K3PB4X1.25-S3 K3PB4X1.25-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ Polyolefin – Black Donut
B 300 K3PB4X1.25B-S3 K3PB4X1.25B-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ Nylon ( White )
B 300 K3NY4X1.25B-S3 K3NY4X1.25B-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ Phenolic
P 300 K3TM4X1.25-S3 K3TM4X1.25-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ Hard Rubber
B 250 K3RN4X1.25-S3 K3RN4X1.25-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ Gray Iron
P 300 K3CL4X1.25-S3 K3CL4X1.25-R3 2 3 1/4″ 5 1/8″
4″ 1 1/4″ High Temp Phenolic – Fiberglass
P 300 K3TP4X1.25-S3 K3TP4X1.25-R3 2 3 1/4″ 5 1/8″
4″ 1 1/2″ High Temp Glass Filled Nylon
P 300 K3NP4X1.50-S3 K3NP4X1.50-R3 2 3 1/4″ 5 1/8″
4″ 1 1/2″ High Temp Phenolic – Fiberglass
P 350 K3TPH4X1.50-S3 K3TPH4X1.50-R3 2 3 1/4″ 5 1/8″
CASTER WHEEL DIAM. TREAD WIDTH WHEEL TREAD MATERIAL Click below for Replacement Wheels
 STD BRG TYPE MAX CAP. EACH CASTER LBS. SWIVEL CASTER Part Number RIGID CASTER Part Number APPROX SWIVEL WEIGHT (LBS) APPROX SWIVEL RADIUS OVERALL HEIGHT
5″ 1 1/4″ Gray Soft Rubber
PS 250 K3RF5X1.25-S3 K3RF5X1.25-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ High Capacity Rubber
B 300 K3RH5X1.25B-S3 K3RH5X1.25B-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ Gray Polyurethane
PS 250 K3GP5X1.25-S3 K3GP5X1.25-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ Black/Gray Polyurethane
PS 250 K3BK5X1.25-S3 K3BK5X1.25-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ Blue/Gray Polyurethane
PS 250 K3BP5X1.25-S3 K3BP5X1.25-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ Red/Gray Polyurethane
PS 250 K3RG5X1.25-S3 K3RG5X1.25-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ Ultra Premium Orange Polyurethane
PS 350 K3UXY5x1.25-S3 K3UXY5x1.25-S3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ All Polyurethane
D 300 K3AP5X1.25-S3 K3AP5X1.25-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ Blue Polyurethane on Aluminum
B 300 K3PA5X1.25-S3 K3PA5X1.25-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ Polyolefin – Black
P 300 K3PB5X1.25-S3 K3PB5X1.25-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ Polyolefin – Black Donut
B 300 K3PB5X1.25B-S3 K3PB5X1.25B-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ Nylon ( White )
B 300 K3NY5X1.25B-S3 K3NY5X1.25B-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ Phenolic
P 300 K3TM5X1.25-S3 K3TM5X1.25-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ Hard Rubber
B 250 K3RN5X1.25-S3 K3RN5X1.25-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ Gray Iron
P 300 K3CL5X1.25-S3 K3CL5X1.25-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ High Temp Phenolic – Fiberglass
P 300 K3TP5X1.25-S3 K3TP5X1.25-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/4″ High Temp Glass Filled Nylon
P 300 K3NP5X1.25-S3 K3NP5X1.25-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/2″ High Temp Glass Filled Nylon
P 300 K3NP5X1.50-S3 K3NP5X1.50-R3 2 1/2″ 4″ 6 1/4″
5″ 1 1/2″ High Temp Phenolic – Fiberglass
P 350 K3TPH5X1.50-S3 K3TPH5X1.50-R3 2 1/2″ 4″ 6 1/4″

Plate Caster Model K3 Features:

img SWIVEL CONSTRUCTION: Stamped steel. Swivel has double ball bearing with hardened raceways. Metal cover shields swivel bearings from dirt and dust
img CENTER PIN is 1/2″ diameter steel rivet
img Axle is 3/8″ diameter bolt with lock nut.
img Wheel Bearing Types: (PS= Precision Sealed Ball Bearings, B= Ball Bearings, D= Delrin Bearings, RB= Roller Bearing, P= Plain Bore.)
img FINISH: External metal parts are Zinc plated
img Deduct 1/4 lb. for weight of rigid caster.
img Use the Polyolefin ( Industrial Plastic ) wheel for “Standing Loads”. Polyolefin wheels eliminate the possiblilty of a flat spot developing if the castered equipment is left parked for a prolong period.

Wheels for Plate Caster Model K3

Typical Application Use for the Plate Caster Model K3 Series:

img Institutional Equipment
img Moving Dollies
img Computer Equipment
img Electronic & Diagnostic Equipment
img Office Equipment
img Bakery Equipment
img Stocking Carts
img Food Service Carts
img Labatory Equipment

Wheel Brakes are not designed to hold on inclines:

Need Help with your order?
(800) 501-3808

You should never select on the basis of load capacity alone. There is no industry standard for load capacity ratings and they may not include a factor for abuse. Our capacity ratings are below what the casters are capable of carrying because most applications have less than perfect conditions. Please refer to the information shown at the bottom of this page. If you have any doubt as to which wheel or caster is the BEST choice for your application contact us for a recommendation.
