Phenolic Caster Wheels

Phenolic caster wheels are made from macerated canvas mixed with phenolic resin, and molded under high pressure and temperature. Its hardness is comparable to polished maple flooring. Phenolic caster wheels are recommended for smooth concrete and can be used for storage (standing) loads without permanent set. These caster wheels are highly resistant to oil, grease, gasoline and mild acids. It is not recommended for wet applications where the wheel will be in standing water. They are affected in various degrees by strong acids and some alkaline solutions. Temperature range is -40° to +250° F, with intermittent use up to 300° F. Phenolic caster wheels will carry loads as great as the same size iron wheel. The wheel material may chip or cut from contact with steel plate or from rolling over steel parts on the floor. The wheel tread may show wear from repeated travel over rough surfaces. Floor wear is slight except where floors are already starting to deteriorate. These wheels can be made with a laminated unmacerated tread to provide 25% more capacity and greater chip resistance.

R = Roller Bearing, D = Delrin Bearings, P = Plain Bore, BB = Ball Bearings, PS = Precision Sealed Ball Bearings, SPS = Stainless Precision Sealed Ball Bearings

Wheels

We do NOT include mounting Hardware.

Caster Chart

WHEEL DLAM.TREAD WIDTHHub
Length
Capacity
Lbs.
Wheel ONLY Part NumberBearing
I.D. / Type
I.D. with
Spanner
Approx.
Wt.
3″1 1/4″1 3/8″300TM3x1.25P1/2″ P3/8″3/4
3 1/4″2″2 7/16″700TH3.25x2R3/4″ R1/2″1 1/2
4″1 1/4″1 3/8″300TM4x1.25P1/2″ P3/8″1
1 1/2″1 5/8″400TM4x1.50P1 1/2
2″2 7/16″800TM4x2PS1/2″ PSN/A1 3/4
TM4x2R3/4″ R1/2″
TM4x2D3/4″ D
1000TH4x2R3/4″ R2
5″1 1/4″1 3/8″300TM5x1.25P1/2″ P3/8″1 1/2
1 1/2″1 5/8″450TM5x1.50P1/2″ P1 3/4
2″2 7/16″1000TM5x2PS1/2″ PSN/A2 1/4
TM5x2R3/4″ R1/2″
TM5x2D3/4″ D
1200TH5x2R3/4″ R2 1/2
6″2″2 7/16″1200TM6x2PS1/2″ PSN/A2 3/4
TM6x2R3/4″ R1/2″
TM6x2D3/4″ D
1500TH6x2R3/4″ R3
2 1/2″2 3/4″1600TH6x2.50N1″ R3/4″4 1/4
3″3 1/4″2000TH6x3R1″ R5 1/2
8″2″2 7/16″1400TM8x2PS1/2″ PSN/A4
TM8x2R3/4″ R1/2″
TM8x2D3/4″ D
2 1/2″2 3/4″1800TM8x2.50N1″ R3/4″6
3″3 1/4″2500TM8x3R1″ R7 1/2
10″2 1/2″2 3/4″1800TM10x2.50N1″ R3/4″7 1/2
3″3 1/4″2500TM10x3R1″ R10
12″2 1/2″2 3/4″1800TM12x2.50N1″ R3/4″11 1/2
3″3 1/4″3000TM12x3R1″ R3

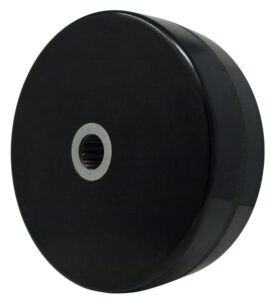

“TM” indicates caster wheels with RECESSED SIDES | “TH” indicates caster wheels with STRAIGHT SIDES

You should never select on the basis of load capacity alone. Capacity ratings do not take into account the effort required to manually move a load. Capacity ratings are based on manual operation under ideal conditions. If these wheels are going to be moved by mechanically powered equipment, consult us for a reduced capacity rating based on your application.
