Wheel Brakes and Swivel Locks are shown here for informational purposes only. They are available as options when you order our casters. These options are not sold separately.

Total Locking Options

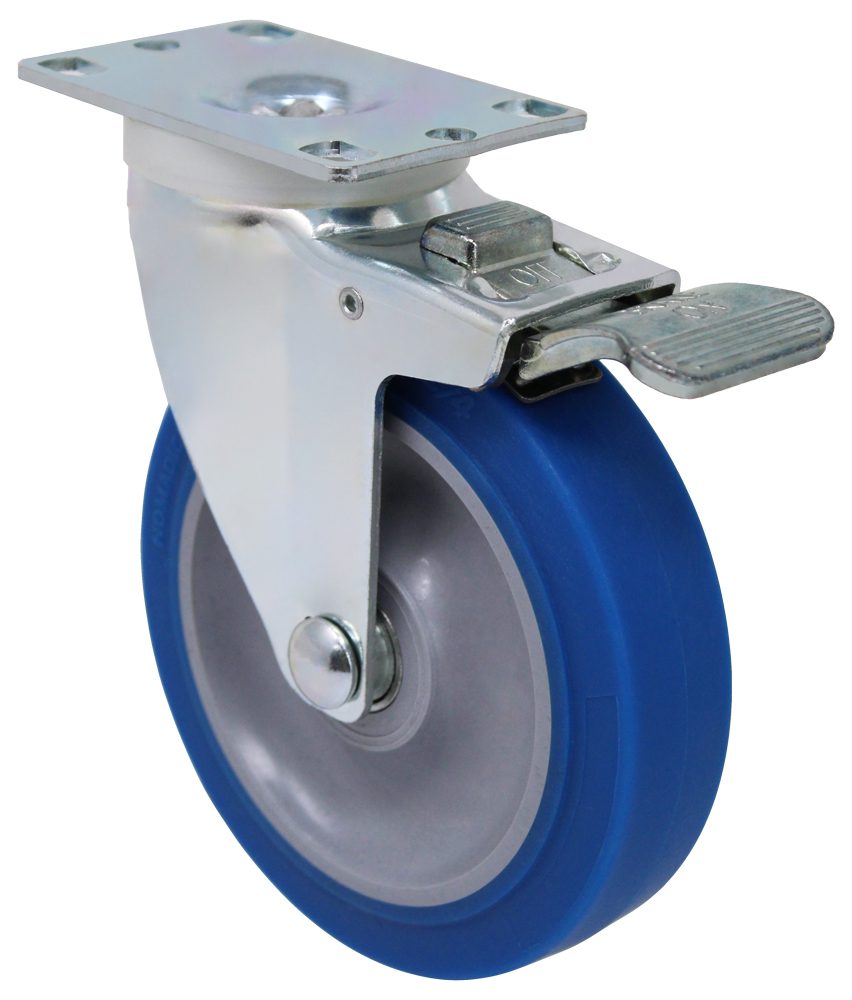

For Caster Model: 3A and SS-3A
Option Code: ML

Locks wheel & swivel simultaneously.

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels

(Shown in the LOCKED position)

For Caster Model: 9
Option Code: TL

The Pedal is Behind the wheel in a Trailing Position.
Locks the Wheel from rolling &
Swivel from turning.

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels
Total Locking Brake – ON
Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels

Total Locking Brake – OFF

Total Locking Caster
For Caster Model: 9
Option Code: TL

The Pedals are in Front of the wheel in a Forward Position. Locks the Wheel from rolling & Swivel from turning.

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels

For Stainless Steel Caster Model: SS-9
Option Code: TL

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels
Total Locking Brake – ON
Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels
Total Locking Brake – OFF
Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels
Wheel Locking
Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels
Swivel Locking

Tread Wheel Brake Options

For Caster Model: 3A and SS-3A
Option Code: PTB
Pedal on top of wheel.
Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels

Shown in the LOCKED position

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels
Shown in the UN-LOCKED position

For Caster Model: 3 and SS-3
Option Code: TB

Pedal on side of wheel.

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels

For Caster Model: Typical Pneumatic 9SF
Option Code: TB

Pedal on side of wheel.

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels

For Caster Model: 9, SS-9, G15, SS-G15
Option Code: TB

Pedal is on the side of wheel.
Locks the wheel only on the
surface of the tire.

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels

Side Wheel Brake Options

For Caster Model: 9, 14, G15, 15
Option Code: WBA

Pedal on top of wheel.

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels

Face Contact Brake Options

For Caster Model: 9,14,G15,15 30, 50, 100
Option Code: FCB

Shown on Caster Model 9

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels
Shown in UN-LOCKED position
Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels
Shown in LOCKED position
Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels

Face Contact Brake & Swivel Lock Model B150

Shown in UN-LOCKED position

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels
Shown in LOCKED position
Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels

Swivel Locks

Swivel Locks are used to lock the Swivel – Not the Wheel. This is accomplished by a “Spring Loaded Plunger” engaging into a slot in the swivel bearing. The slots are located at 90 degree intervals around the swivel bearing. The lock can be engaged in any slot, thus giving you 4 different directions in which to Lock the Swivel. It is best to order the Swivel Lock when you purchase the caster as the ‘Notched Swivel Bearings” are not a standard on all casters. They are, however, shipped when you order the Swivel Lock with your caster order.

Welded Swivel Lock: Available on many Models – Call for information
Option Code: SL4

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels
Shown in LOCKED position
Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels
Shown in UN-LOCKED position

Detachable Swivel Lock:
For Caster Models: 9, G15, 15, 50
Option Code: DSL4

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels

Detachable Foot Operated Swivel Lock:
For Caster Models: 9
Option Code: BSL4-FO

Attach when bolting caster on equipment.
