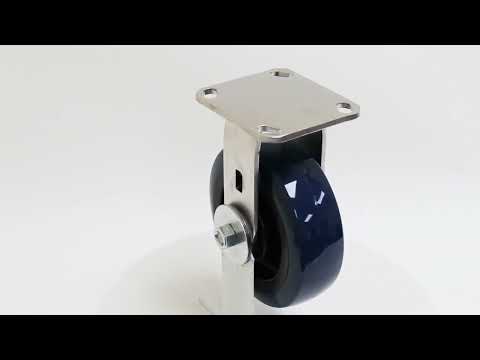

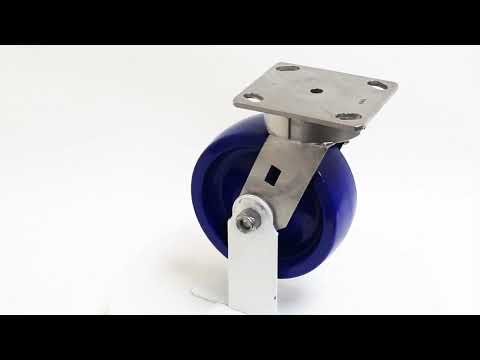

Stainless Steel Caster Model SS-G15

Capacity up to 1,500 pounds per caster.

Top Plate Size: 4″ x 4 1/2″
Bolt Hole Spacing: 2-5/8” x 3-5/8” to 3” x 3”
Mounting Bolt Size: 3/8″

Click Here For ZINC PLATED Plate Caster Model G15

Click Links Below for 2D Drawing of Stainless Steel Model G15 (Mounting Plate Included):

Stainless Steel Plate Caster Model G15 Features are described below the Chart.

Capacity up to 1500 pounds per caster. Stainless steel casters are ideal for use in a wet or corrosive environment. Typical applications include Pharmaceutical Laboratories and Food Processing Plants.

Stainless Steel Caster Model SS-G15 Chart
(Click the Part Number to Order)

Desktop: When you put your mouse over the words in the wheel description column you see a picture of the wheel. Click on the part number in the Swivel and Rigid columns to see the complete caster.

Mobile: Hold down your finger on the chart and scroll to the right to click on the part number you would like to order.

Filter through the Available Diameters to find the size you need.

CASTER WHEEL DIAM.	TREAD WIDTH	WHEEL TREAD MATERIAL Click below for Replacement Wheels	STD BRG TYPE	MAX CAP. EACH CASTER LBS.	SWIVEL CASTER Part Number	RIGID CASTER Part Number	APPROX SWIVEL WEIGHT (LBS)	APPROX SWIVEL RADIUS	OVERALL HEIGHT
4″	2″	Gray Soft Rubber, Flat	SSR	250	SS-G15RF4X2-S	SS-G15RF4X2-R	6	3 5/8″	5 5/8″
4″	2″	All Polyurethane Blue	SSR	700	SS-G15AP4X2-S	SS-G15AP4X2-R	5 1/2	3 5/8″	5 5/8″
4″	2″	All Polyurethane Gray	SSR	700	SS-G15HU4X2-S	SS-G15HU4X2-R	5 1/2	3 5/8″	5 5/8″
4″	2″	Polyurethane – Blue/Black	SSR	400	SS-G15UP4X2-S	SS-G15UP4X2-R	6	3 5/8″	5 5/8″
4″	2″	Polyurethane – Maroon/Gray	SSR	400	SS-G15MG4X2-R	SS-G15MG4X2-R	6	3 5/8″	5 5/8″
4″	2″	Poly on Glass-Filled Nylon	SSR	700	SS-G15UG4X2-S	SS-G15UG4X2-R	6	3 5/8″	5 5/8″
4″	2″	Polyolefin Caster Wheels	SSR	400	SS-G15PB4X2-S	SS-G15PB4X2-R	5	3 5/8″	5 5/8″
4″	2″	Polyolefin – High Capacity	SSR	800	SS-G15RK4X2PS-S	SS-G15RK4X2PS-R	6	3 5/8″	5 5/8″
4″	2″	Nylon ( White )	SSR	800	SS-G15NY4X2-S	SS-G15NY4X2-R	6	3 5/8″	5 5/8″
4″	2″	Nylon ( Black )	SSR	800	SS-G15MK4X2PS-S	SS-G15MK4X2PS-R	6	3 5/8″	5 5/8″
4″	2″	Phenolic	SSR	800	SS-G15TM4X2-S	SS-G15TM4X2-R	6	3 5/8″	5 5/8″
4″	2″	High Temp Glass Filled Nylon	SSR	600	SS-G15NP4X2-S	SS-G15NP4X2-R	6	3 5/8″	5 5/8″
4″	2″	High Temp Phenolic – Fiberglass	SSR	600	SS-G15TP4X2-S	SS-G15TP4X2-R	6	3 5/8″	5 5/8″

CASTER WHEEL DIAM.	TREAD WIDTH	WHEEL TREAD MATERIAL Click below for Replacement Wheels	STD BRG TYPE	MAX CAP. EACH CASTER LBS.	SWIVEL CASTER Part Number	RIGID CASTER Part Number	APPROX SWIVEL WEIGHT (LBS)	APPROX SWIVEL RADIUS	OVERALL HEIGHT
5″	2″	Gray Soft Rubber, Flat	SSR	300	SS-G15RF5X2-S	SS-G15RF5X2-R	8 1/2	4 1/4″	6 1/2″
5″	2″	All Polyurethane Blue	SSR	800	SS-G15AP5X2-S	SS-G15AP5X2-R	8	4 1/4″	6 1/2″
5″	2″	Polyurethane – Blue/Black	SSR	500	SS-G15UP5X2-S	SS-G15UP5X2-R	8 1/2	4 1/4″	6 1/2″
5″	2″	Polyurethane – Maroon/Gray	SSR	500	SS-G15MG5X2-S	SS-G15MG5X2-R	8 1/2	4 1/4″	6 1/2″
5″	2″	Poly on Glass-Filled Nylon	SSR	1000	SS-G15UG5X2-S	SS-G15UG5X2-R	8	4 1/4″	6 1/2″
5″	2″	Polyolefin – Black	SSR	500	SS-G15PB5X2-S	SS-G15PB5X2-R	7 1/2	4 1/4″	6 1/2″
5″	2″	Polyolefin – High Capacity	SPS	900	SS-G15RK5X2PS-S	SS-G15RK5X2PS-R	8	4 1/4″	6 1/2″
5″	2″	Nylon ( White )	SSR	900	SS-G15NY5X2-S	SS-G15RK5X2PS-R	8	4 1/4″	6 1/2″
5″	2″	Nylon ( Black )	SPS	900	SS-G15MK5X2PS-S	SS-G15MK5X2PS-R	8	4 1/4″	6 1/2″
5″	2″	Phenolic	SSR	900	SS-G15TM5X2-S	SS-G15TM5X2-R	8	4 1/4″	6 1/2″
5″	2″	High Temp Glass Filled Nylon	SSR	750	SS-G15NP5X2-S	SS-G15NP5X2-R	8	4 1/2″	6 1/2″
5″	2″	High Temp Phenolic – Fiberglass	SSR	750	SS-G15TP5X2-S	SS-G15TP5X2-R	8	4 1/4″	6 1/2″

CASTER WHEEL DIAM.	TREAD WIDTH	WHEEL TREAD MATERIAL Click below for Replacement Wheels	STD BRG TYPE	MAX CAP. EACH CASTER LBS.	SWIVEL CASTER Part Number	RIGID CASTER Part Number	APPROX SWIVEL WEIGHT (LBS)	APPROX SWIVEL RADIUS	OVERALL HEIGHT
6″	2″	Gray Soft Rubber, Flat	SSR	400	SS-G15RF6X2-S	SS-G15RF6X2-R	8 1/2	4 1/2″	7 1/2″
6″	2″	All Polyurethane Blue	SSR	900	SS-G15AP6X2-S	SS-G15AP6X2-R	8	4 1/2″	7 1/2″
6″	2″	Polyurethane – Blue/Black	SSR	600	SS-G15UP6X2-S	SS-G15UP6X2-R	8 1/2	4 1/2″	7 1/2″
6″	2″	Polyurethane – Maroon/Gray	SSR	600	SS-G15MG6X2-S	SS-G15MG6X2-R	8 1/2	4 1/2″	7 1/2″
6″	2″	Poly on Glass-Filled Nylon	SSR	1200	SS-G15UG6X2-S	SS-G15UG6X2-R	8	4 1/2″	7 1/2″
6″	2″	Polyolefin – Black	SSR	600	SS-G15PB6X2-S	SS-G15PB6X2-R	7 1/2	4 1/2″	7 1/2″
6″	2″	Polyolefin – High Capacity	SPS	1000	SS-G15RK6X2PS-S	SS-G15RK6X2PS-R	8	4 1/2″	7 1/2″
6″	2″	Nylon ( White )	SSR	1000	SS-G15NY6X2-S	SS-G15NY6X2-R	8	4 1/2″	7 1/2″
6″	2″	Nylon ( Black )	SPS	1000	SS-G15MK6X2PS-S	SS-G15MK6X2PS-R	8	4 1/2″	7 1/2″
6″	2″	Phenolic	SSR	1000	SS-G15TM6X2-S	SS-G15TM6X2-R	8 1/2	4 1/2″	7 1/2″
6″	2″	High Temp Glass Filled Nylon	SSR	900	SS-G15NP6X2-S	SS-G15NP6X2-R	8 1/2	4 1/2″	7 1/2″
6″	2″	High Temp Phenolic – Fiberglass	SSR	900	SS-G15TP6X2-S	SS-G15TP6X2-R	8 1/2	4 1/2″	7 1/2″

CASTER WHEEL DIAM.	TREAD WIDTH	WHEEL TREAD MATERIAL Click below for Replacement Wheels	STD BRG TYPE	MAX CAP. EACH CASTER LBS.	SWIVEL CASTER Part Number	RIGID CASTER Part Number	APPROX SWIVEL WEIGHT (LBS)	APPROX SWIVEL RADIUS	OVERALL HEIGHT
8″	2″	Gray Soft Rubber, Flat	SSR	500	SS-G15RF8X2-S	SS-G15RF8X2-R	10	6 1/2″	9 1/2″
8″	2″	All Polyurethane Blue	SSR	1000	SS-G15AP8X2-S	SS-G15AP8X2-R	10	6 1/2″	9 1/2″
8″	2″	Polyurethane – Blue/Black	SSR	700	SS-G15UP8X2-S	SS-G15UP8X2-R	10	6 1/2″	9 1/2″
8″	2″	Polyurethane – Maroon/Gray	SSR	700	SS-G15MG8X2-S	SS-G15MG8X2-R	10	6 1/2″	9 1/2″
8″	2″	Poly on Glass-Filled Nylon	SSR	1400	SS-G15UG8X2-S	SS-G15UG8X2-R	10	6 1/2″	9 1/2″
8″	2″	Polyolefin – Black	SSR	700	SS-G15PB8X2-S	SS-G15PB8X2-R	10	6 1/2″	9 1/2″
8″	2″	Polyolefin – High Capacity	SPS	1400	SS-G15RK8X2PS-S	SS-G15RK8X2PS-R	10	6 1/2″	9 1/2″
8″	2″	Nylon ( White )	SSR	1100	SS-G15NY8X2-S	SS-G15NY8X2-R	10	6 1/2″	9 1/2″
8″	2″	Nylon ( Black )	SPS	1100	SS-G15MK8X2PS-S	SS-G15MK8X2PS-R	10	6 1/2″	9 1/2″
8″	2″	Phenolic	SSR	1200	SS-G15TM8X2-S	SS-G15TM8X2-R	9	6 1/2″	9 1/2″
8″	2″	High Temp Glass Filled Nylon	SSR	1100	SS-G15NP8X2-S	SS-G15NP8X2-R	10	6 1/2″	9 1/2″
8″	2″	High Temp Phenolic – Fiberglass	SSR	1100	SS-G15TP8X2-S	SS-G15TP8X2-R	10	6 1/2″	9 1/2″

Stainless Steel G15 Features

Swivel Construction Precision machined combination load and thrust bearing with heat treated raceway. No center pin.

Axle 1/2” diameter hollow bolt with lock nut.

Finish External metal parts are zinc plated.

Wheel Bearing B= Ball Bearings, BRNZ= Bronze, D= Delrin Bearings, PS= Precision Sealed Ball Bearings, P= Plain Bore, R= Roller Bearing.

Legs 1/4″ thick, welded inside and out.

If your application exceeds 40 minutes at the maximum temperature rating for these wheels contact us at 800-501-3808 for a recommendation.

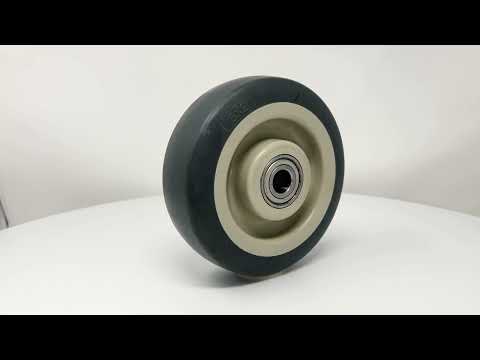

Stainless Steel Caster Model SS-G15 Wheels

Optional Features:

Universal Face Contact Brake (UFCB):

Wheel Brakes are not designed to hold on inclines. Not available on V-Groove Wheels.

Wheel Brake (TB):

Pedal on side of Wheel Locks ONLY the wheel from rolling. The TB wheel brake is not available on a swivel with the Long Lead.

Bolt On Foot Operated (BSL4-FO):

Swivel Lock (SL4):

Swivel Lock converts a swivel caster into a rigid caster for direct line travel. Swivel Locks lock ONLY swivel, not the wheel.

Stainless Steel Caster Model SS G15 Instructions:

You should never select on the basis of load capacity alone. Capacity ratings do not take into account the effort required to manually move a load. Capacity ratings are based on manual operation under ideal conditions. If these casters are going to be moved by mechanically powered equipment, consult us for a reduced capacity rating based on your application. If a human being has to move the weight, select the largest practical wheel diameter. If a caster failure occurs it is almost always because of misuse or abuse. It has been very rare that a product failed because of faulty material or poor workmanship. The following are examples of things that we do NOT want you to do:

1. Dragging the wheel sideways.
2. Shock or Impact caused by dropping the load instead of setting it down on the castered equipment.
3. Improper Installation such as:
A. Rigid casters not installed parallel to one another.
B. Swivel casters not installed parallel to the floor.
C. Using less than 4 bolts to attach the mounting plate.
D. Distortion of the swivel bearing when attaching the mounting plate due to welding improperly.
4. Exceeding the rated capacity of the wheel or caster.
5. Exceeding a rolling speed of 3 MPH.
6. The build up of heat caused by continuous operation causing tire separation.

Need Help with your order?
(800) 501-3808

You should never select on the basis of load capacity alone. There is no industry standard for load capacity ratings and they may not include a factor for abuse. Our capacity ratings are below what the casters are capable of carrying because most applications have less than perfect conditions. Please refer to the information shown at the bottom of this page. If you have any doubt as to which wheel or caster is the BEST choice for your application contact us for a recommendation.
