Capacity 20,000 pounds per caster under ideal operating conditions. Load ratings are based on manually moved loads at a speed up to 3 mph under ideal operating conditions. If your application involves abuse please contact us for a recommendation. Consult us for a capacity rating based on your application if these casters are to be used with mechanically powered equipment.

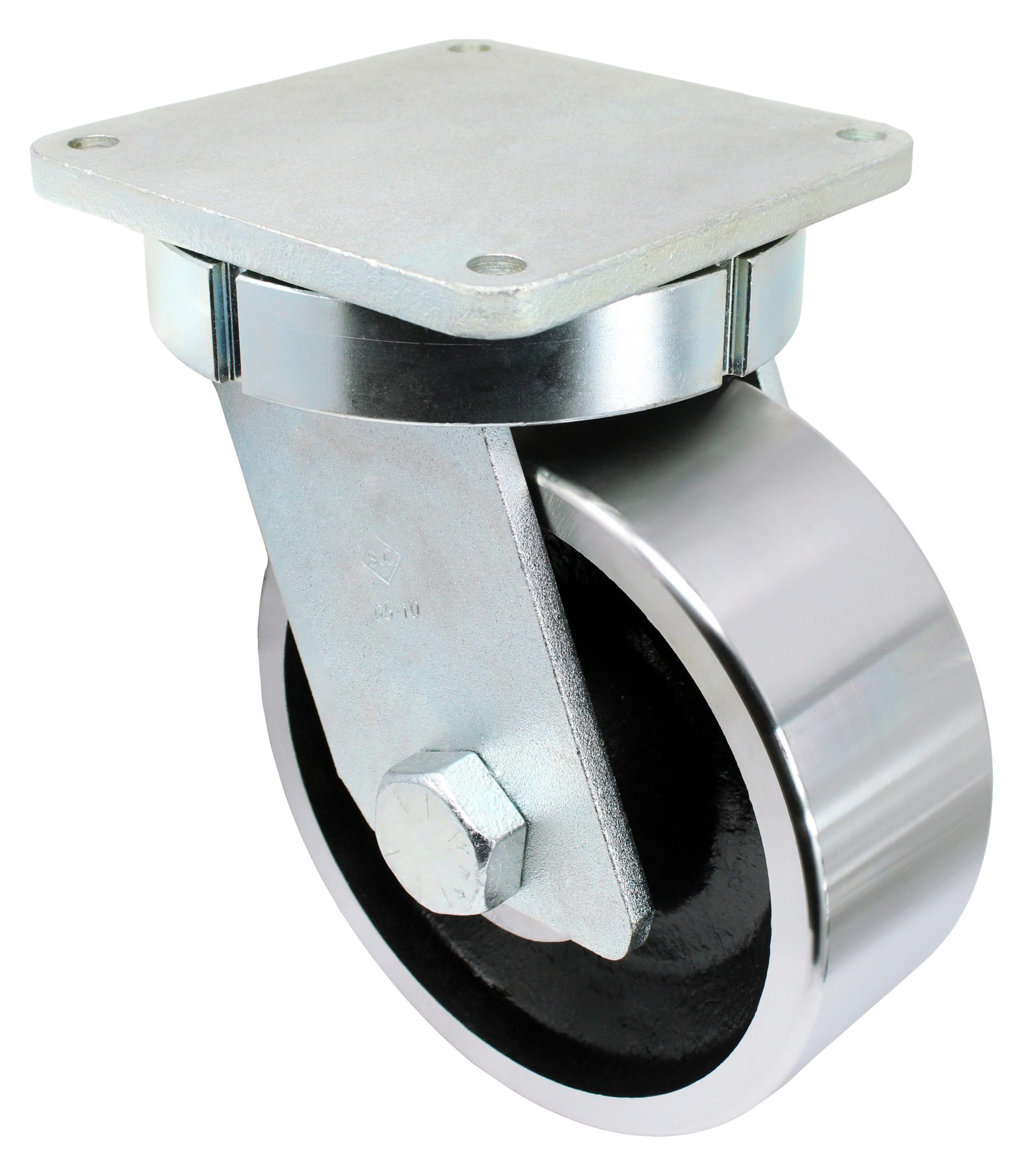

Model 150 has the largest top plate and thickest legs of any of our caster brackets which allow for the heaviest loads and the most arduous service. Model 150 has a precision machined swivel bearing, which provides superior performance on both manually moved and mechanically powered equipment. Benefits include easier swiveling, reduced swivel vibration, and longer trouble free performance. When used with mechanically powered equipment please consult us for a recommendation.
Desktop: When you put your mouse over the words in the wheel description column you see a picture of the wheel. Click on the part number in the Swivel and Rigid columns to see the complete caster.
Mobile: Hold down your finger on the chart and scroll to the right to click on the part number you would like to order.
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | RIGID CASTER Part Number | Part Number APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|---|
8″ | 4″ | Ductile Steel | Tapered | 15,000 | 150DS8X4T-S | 150DS8X4T-R | 57 | 6″ | 11″ |
8″ | 4″ | Forged Steel | Tapered | 20,000 | 150FS8X4T-S | 150FS8X4T-R | 72 | 6″ | 11″ |
8″ | 4″ | Ultra High Capacity Polymer | Precision Ball | 8,000 | 150NX8X4-S | 150NX8X4-R | 43 | 6″ | 11″ |
8″ | 4″ | 65D Green Polyurethane on Iron | Tapered | 4,000 | 150PYH8X4T-S | 150PYH8X4T-R | 61 | 6″ | 11″ |
8″ | 4″ | 95A Orange Premium Polyurethane on Iron | Tapered | 5,000 | 150PX8X4T-S | 150PX8X4T-R | 61 | 6″ | 11″ |

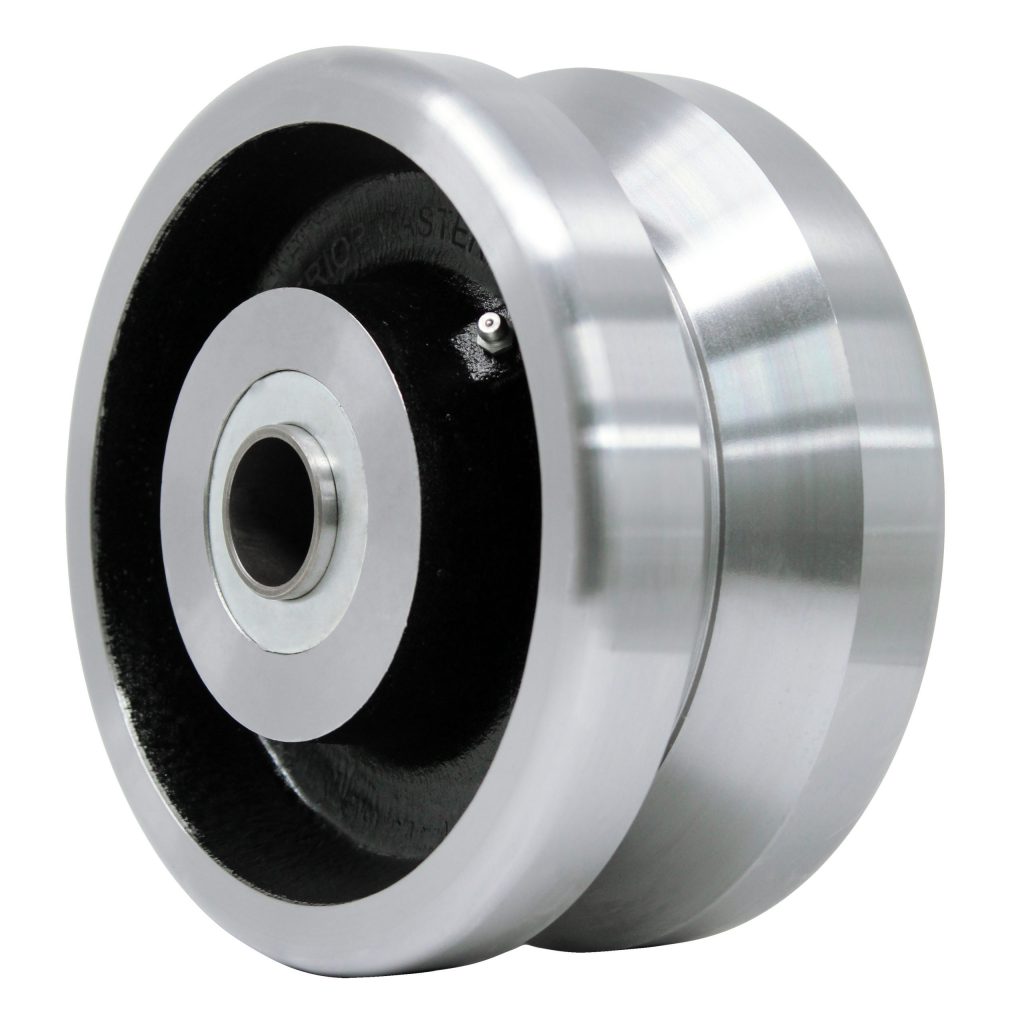

8″ | 4″ | Forged Steel V-Groove | Tapered | 15,000 | 150VF8X4T-S | 150VF8X4T-R | 70 | 6″ | 11″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | RIGID CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|---|
10″ | 4″ | Ductile Steel | Tapered | 15,000 | 150DS10X4T-S | 150DS10X4T-R | 76 | 7 1/2″ | 13″ |
10″ | 4″ | Forged Steel | Tapered | 20,000 | 150FS10X4T-S | 150FS10X4T-R | 85 | 7 1/2″ | 13″ |
10″ | 4″ | Ultra High Capacity Polymer | Precision Ball | 8,000 | 150NX10X4-S | 150NX10X4-R | 48 | 7 1/2″ | 13″ |
10″ | 4″ | 65D Green Polyurethane on Iron | Tapered | 5,000 | 150PYH10X4T-S | 150PYH10X4T-R | 69 | 7 1/2″ | 13″ |
10″ | 4″ | 95A Orange Premium Polyurethane on Iron | Tapered | 6,000 | 150PX10X4T-S | 150PX10X4T-R | 69 | 7 1/2″ | 13″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS | SWIVEL CASTER Part Number | RIGID CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|---|
12″ | 4″ | Ductile Steel | Tapered | 15,000 | 150DS12X4T-S | 150DS12X4T-R | 104 | 9″ | 15 1/2″ |
12″ | 4″ | Forged Steel | Tapered | 20,000 | 150FS12X4T-S | 150FS12X4T-R | 134 | 9″ | 15 1/2″ |
12″ | 4″ | Ultra High Capacity Polymer | Precision Ball | 8,000 | 150NX12X4-S | 150NX12X4-R | 55 | 9″ | 15 1/2″ |
12″ | 4″ | 65D Green Polyurethane on Iron | Tapered | 6,000 | 150PYH12X4T-S | 150PYH12X4T-R | 79 | 9″ | 15 1/2″ |
12″ | 4″ | 95A Orange Premium Polyurethane on Iron | Tapered | 8,000 | 150PX12X4T-S | 150PX12X4T-R | 79 | 9″ | 15 1/2″ |
Wheel Brakes are not designed to hold on inclines. Not available on V-Groove Wheels.
Weld on Face Contact Brake option makes the caster non returnable.
You should never select on the basis of load capacity alone. Capacity ratings do not take into account the effort required to manually move a load. Capacity ratings are based on manual operation under ideal conditions. If these casters are going to be moved by mechanically powered equipment, consult us for a reduced capacity rating based on your application. If a human being has to move the weight, select the largest practical wheel diameter. If a caster failure occurs it is almost always because of misuse or abuse. It has been very rare that a product failed because of faulty material or poor workmanship. The following are examples of things that we do NOT want you to do:
1. Dragging the wheel sideways.
2. Shock or Impact caused by dropping the load instead of setting it down on the castered equipment.
3. Improper Installation such as:
A. Rigid casters not installed parallel to one another.
B. Swivel casters not installed parallel to the floor.
C. Using less than 4 bolts to attach the mounting plate.
D. Distortion of the swivel bearing when attaching the mounting plate due to welding improperly.
4. Exceeding the rated capacity of the wheel or caster.
5. Exceeding a rolling speed of 3 MPH.
6. The build up of heat caused by continuous operation causing tire separation.
You should never select on the basis of load capacity alone. There is no industry standard for load capacity ratings and they may not include a factor for abuse. Our capacity ratings are below what the casters are capable of carrying because most applications have less than perfect conditions. Please refer to the information shown at the bottom of this page. If you have any doubt as to which wheel or caster is the BEST choice for your application contact us for a recommendation.
