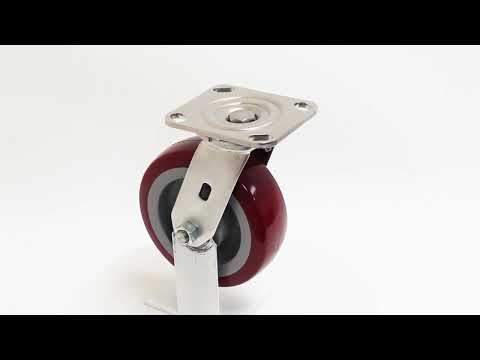

Stainless Steel Caster Model 9

Stainless Steel Caster Model 9

Plate Mount

Capacity up to 1200 pounds per caster. Stainless steel casters are ideal for use in a wet or corrosive environment. Typical applications include Pharmaceutical Laboratories and Food Processing Plants.

“You should never select on the basis of load capacity alone. There is no industry standard for load capacity ratings and they may not include a factor for abuse. Our capacity ratings are below what the casters are capable of carrying because most applications have less than perfect conditions. Please refer to the information shown at the bottom of this page. If you have any doubt as to which wheel or caster is the BEST choice for your application contact us for a recommendation.”

Mounting Plate – 4″ x 4 1/2″

This image is for Plate Size and Hole Placement ONLY. IT DOES NOT DEPICT THE ACTUAL PLATE.

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels
We suggest that you do NOT drill the mounting holes to attach the casters until you receive them.

Stainless Steel Caster Model 9 Features:

If a caster failure occurs it is almost always because of misuse or abuse. It has been very rare that a product failed because of faulty material or poor workmanship. The following are examples of things that we do NOT want you to do:

  1. Dragging the wheel sideways.
  2. Shock or Impact caused by dropping the load instead of setting it down on the castered equipment.
  3. Improper Installation such as:
    A. Rigid casters not installed parallel to one another.
    B. Swivel casters not installed parallel to the floor.
    C. Using less than 4 bolts to attach the mounting plate.
    D. Distortion of the swivel bearing when attaching the mounting plate due to welding improperly.
  4. Exceeding the rated capacity of the wheel or caster.
  5. Exceeding a rolling speed of 3 MPH.
  6. The build up of heat caused by continuous operation causing tire separation.

Optional Features:

Total Locking Brake (TL):

Locks both the Wheel from rolling AND the Swivel from turning.

Total Locking Brake – OFF

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels

Total Locking Brake – ON

Image of a Caster | Caster City |, Caster Wheels, Chair Casters, Chair Wheels | Furniture Wheels

DO NOT ORDER SWIVEL LOCK OR RACEWAY SEALS IF YOU ORDER THE TL – TOTAL LOCK BRAKE. THE TL BRAKE WILL NOT WORK WITH EITHER THE SWIVEL LOCK OR RACEWAY SEALS.

Swivel Lock (SL4):

Welded – Locks Swivel, NOT wheel.

(Unlocked)



(Locked)

Swivel Lock (BSL4-FO ):

Locks Swivel, NOT wheel.

FOOT OPERATED

Raceway Seals (RS):

Seals Upper and Lower Raceways from dirt and debris, improves grease retention, can reduce noise and may prolong caster life.

CAN NOT BE USED WITH SWIVEL LOCK OPTION OR TOTAL LOCK BRAKE

Precision Sealed Ball Bearings (PS):

Precision Sealed Ball Bearings increase rollability and are maintenance free. Available on Non-Metal Center Wheels.

Wheel Brake (TB):

Pedal on side of Wheel Locks ONLY the wheel from rolling.

Wheel Brakes are not designed to hold on inclines.

Wheel Brake (FCB):

Face Contact Brake



Wheel Brakes are not designed to hold on inclines. Not available on V-Groove Wheels.

Stainless Steel Caster Model 9 with Wheels

Caster Chart

CASTER WHEEL DIAM.TREAD WIDTHWHEEL TREAD MATERIALSTD BRG TYPEMAX CAP. EACH CASTER LBS.SWIVEL CASTERRIGID CASTERAPPROX SWIVEL WEIGHT (LBS)APPROX SWIVEL RADIUSOVERALL HEIGHT
4″2″Gray Soft Rubber, FlatD250SS-9RF4x2-SSS-9RF4x2-R53 1/2″


6 1/2″ with
TL Brake
5 5/8″
High Capacity RubberD300SS-9RH4x2-SSS-9RH4x2-S
All Polyurethane BlueD700SS-9AP4x2-SSS-9AP4x2-R
Polyurethane – Blue/BlackD400SS-9UP4x2-SSS-9UP4x2-R
Polyurethane – Maroon/GrayD400SS-9MG4x2-SSS-9MG4x2-R
Poly on Glass-Filled NylonD700SS-9UG4x2-SSS-9UG4x2-R
Polyolefin – BlackD500SS-9PB4x2-SSS-9PB4x2-R
Polyolefin – High CapacitySPS800SS-9RK4x2PS-SSS-9RK4x2PS-R
Gray PolyurethaneSPS800SS-9HU4x2PS-SSS-9HU4x2PS-R
Nylon ( White )D800SS-9NY4x2-SSS-9NY4x2-R
Nylon ( Black )SPS800SS-9MK4x2PS-SSS-9MK4x2PS-R
PhenolicD800SS-9TM4x2-SSS-9TM4x2-R
High Temp Glass Filled NylonP600SS-9NP4x2-SSS-9NP4x2-R
High Temp Phenolic – FiberglassSSR600SS-9TP4x2-SSS-9TP4x2-R
V-Groove Glass Filled NylonSPS500SS-9VN4x2SPS-SSS-9VN4x2SPS-R
5″2″Gray Soft Rubber, FlatD300SS-9RF5x2-SSS-9RF5x2-R5 1/24 1/4″


6 1/2″ with
TL Brake
6 1/2″
High Capacity RubberD350SS-9RH5x2-SSS-9RH5x2-R
All Polyurethane BlueD800SS-9AP5x2-SSS-9AP5x2-R
Polyurethane – Blue/BlackD500SS-9UP5x2-SSS-9UP5x2-R
Polyurethane – Maroon/GrayD500SS-9MG5x2-SSS-9MG5x2-R
Poly on Glass-Filled NylonD800SS-9UG5x2-SSS-9UG5x2-R
Polyolefin – BlackD600SS-9PB5x2-SSS-9PB5x2-R
Polyolefin – High CapacitySPS900SS-9RK5x2PS-SSS-9RK5x2PS-R
Gray PolyurethaneSPS900SS-9HU5x2PS-SSS-9HU5x2PS-R
Nylon ( White )D900SS-9NY5x2-SSS-9NY5x2-R
Nylon ( Black )SPS900SS-9MK5x2PS-SSS-9MK5x2PS-R
PhenolicD800SS-9TM5x2-SSS-9TM5x2-R
High Temp Glass Filled NylonP750SS-9NP5x2-SSS-9NP5x2-R
High Temp Phenolic – FiberglassSSR750SS-9TP5x2-SSS-9TP5x2-R
6″2″Gray Soft Rubber, FlatD400SS-9RF6x2-SSS-9RF6x2-R6 1/24 7/8″


6 1/2″ with
TL Brake
7 1/2″
High Capacity RubberD450SS-9RH6x2-SSS-9RH6x2-R
All Polyurethane BlueD900SS-9AP6x2-SSS-9AP6x2-R
Polyurethane – Blue/BlackD600SS-9UP6x2-SSS-9UP6x2-R
Polyurethane – Maroon/GrayD600SS-9MG6x2-SSS-9MG6x2-R
Poly on Glass-Filled NylonD900SS-9UG6x2-SSS-9UG6x2-R
Polyolefin – BlackD700SS-9PB6x2-SSS-9PB6x2-R
Polyolefin – High CapacitySPS1200SS-9RK6x2PS-SSS-9RK6x2PS-R
Gray PolyurethaneSPS1000SS-9HU6x2PS-SSS-9HU6x2PS-R
Nylon ( White )D900SS-9NY6x2-SSS-9NY6x2-R
Nylon ( Black )SPS900SS-9MK6x2PS-SSS-9MK6x2PS-R
PhenolicD1200SS-9TM6x2-SSS-9TM6x2-R
High Temp Glass Filled NylonP900SS-9NP6x2-SSS-9NP6x2-R
High Temp Phenolic – FiberglassSSR900SS-9TP6x2-SSS-9TP6x2-R
8″2″Gray Soft Rubber, FlatD500SS-9RF8x2-SSS-9RF8x2-R86 1/4″


7 1/2″ with
TL Brake
9 1/2″
High Capacity RubberD550SS-9RH8x2-SSS-9RH8x2-R
All Polyurethane BlueD900SS-9AP8x2-SSS-9AP8x2-R
Polyurethane – Blue/BlackD700SS-9UP8x2-SSS-9UP8x2-R
Polyurethane – Maroon/GrayD700SS-9MG8x2-SSS-9MG8x2-R
Poly on Glass-Filled NylonD900SS-9UG8x2-SSS-9UG8x2-R
Polyolefin – BlackD800SS-9PB8x2-SSS-9PB8x2-R
Polyolefin – High CapacitySPS1200SS-9RK8x2PS-SSS-9RK8x2PS-R
Gray PolyurethaneSPS1200SS-9HU8x2PS-SSS-9HU8x2PS-R
Nylon ( White )D900SS-9NY8x2-SSS-9NY8x2-R
Nylon ( Black )SPS900SS-9MK8x2PS-SSS-9MK8x2PS-R
PhenolicD1200SS-9TM8x2-SSS-9TM8x2-R
High Temp Glass Filled NylonP900SS-9NP8x2-SSS-9NP8x2-R
High Temp Phenolic – FiberglassSSR900SS-9TP8x2-SSS-9TP8x2-R
All Polyurethane GrayD9009HU8x2-S9HU8x2-R
Polyolefin – BlackD8009PB8x2-S9PB8x2-R
Polyolefin – High CapacityD9009RK8x2PS-S9RK8x2PS-R
Nylon ( White )D9009NY8x2-S9NY8x2-R
Nylon ( Black )D9009MK8x2PS-S9MK8x2PS-R
