Light Duty Flat Free Casters

“If you want help making a selection, get Technical Assistance from our Experienced Professionals! Call: 800-501-3808”

Capacity up to 150 pounds per caster. Popular for use in places such as hospitals, scientific and electronic laboratories, hotels, department stores and TV or movie studios. Not recommended for use while moving with a camera.

Features:

img Capacity up to 150 lbs. per caster
img 6″ x 1 1/4″ Solid Rubber wheel with 3/8″ ball bearings.
img Gray tires will not mark the floor.

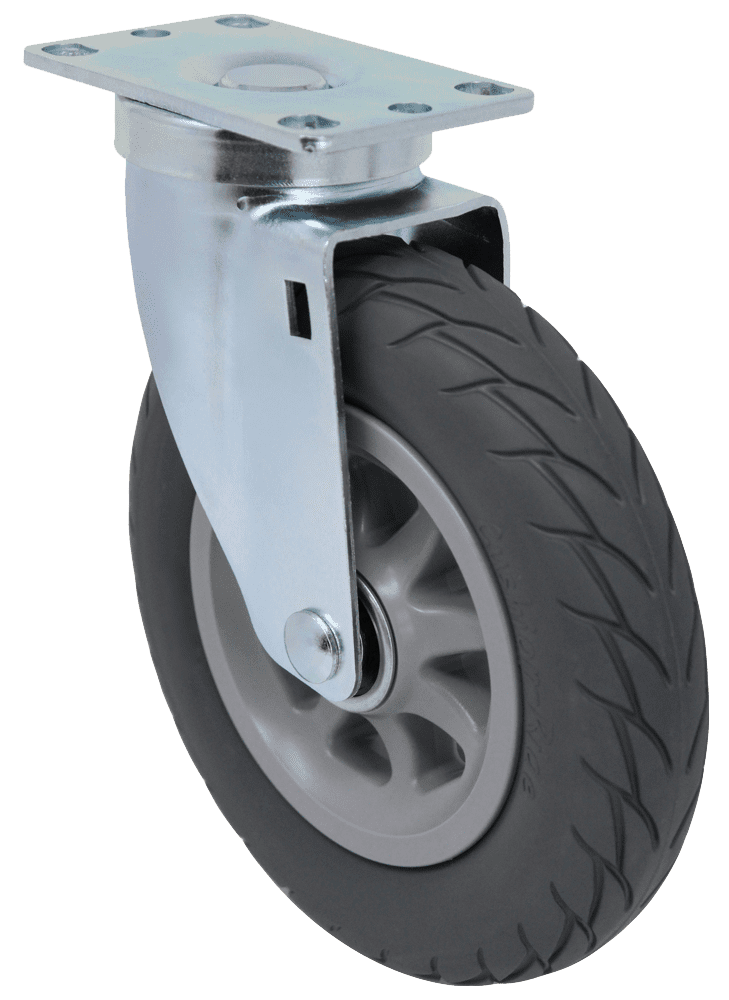

img Available with Plate, Threaded Stem & Grip Ring Stem Mountings
img Available in Gray Only.
img Wheel is available separately with 3/8″ Ball Bearings.
img Axle 1” diameter solid bolt with lock nut on 3″ wide wheels.
img Top Plate 1/2″ thick.
img Wheel Bearing 1″ tapered roller bearings in 3″ wide wheels.
img NX Wheel Bearing Each Wheel contains 4 Precision Ball Bearings.
img V Groove Width 1 3/8″ with 3″ wide wheels.
img Finish Brackets are zinc plated. Ductile steel wheels are painted.

Light Duty Flat Free Casters with Wheels


Light Duty Flat Free Casters Chart
(Click the Part Number to Order)

We do NOT include mounting Hardware.

CASTER WHEEL DIAM. TREAD WIDTH MAX CAP. EACH CASTER LBS. Type of Wheel Caster Mounting Caster Type Pneumatic Caster Part Number OVERALL HEIGHT APPROX SWIVEL WEIGHT (LBS) APPROX SWIVEL RADIUS
6″ 1 1/4″ 150 Flat FREE Solid Rubber Plate Swivel 3FF6X1.25G-S 7 1/4″ 5 4 1/2″
6″ 1 1/4″ 150 Flat FREE Solid Rubber Plate Rigid 3FF6X1.25G-R 7 1/4″ 8 4 1/2″
6″ 1 1/4″ 150 Flat FREE Solid Rubber Threaded Stem Swivel 3FF6GX-TS 7 1/8″ 8 4 1/2″
6″ 1 1/4″ 150 Flat FREE Solid Rubber Grip Ring Stem Swivel 3FF6GX-GR716 7 1/8″ 7 4 1/2″
6″ 1 1/4″ 150 Flat FREE Solid Rubber Wheel ONLY NA FF6X1.25G NA 2 NA

Optional Features:

Wheel Brake:

TB: Pedal on side of wheel. Locks on the surface of the tire.

Mounting Plate:

  • Top Plate Size: 2 3/4 x 3 3/4
  • Bolt Hole Spacing: 1 3/4″ x 2 3/4″ slotted to 3″
  • Bolt Size: 5/16

We suggest that you do NOT drill the mounting holes to attach the casters until you receive them.

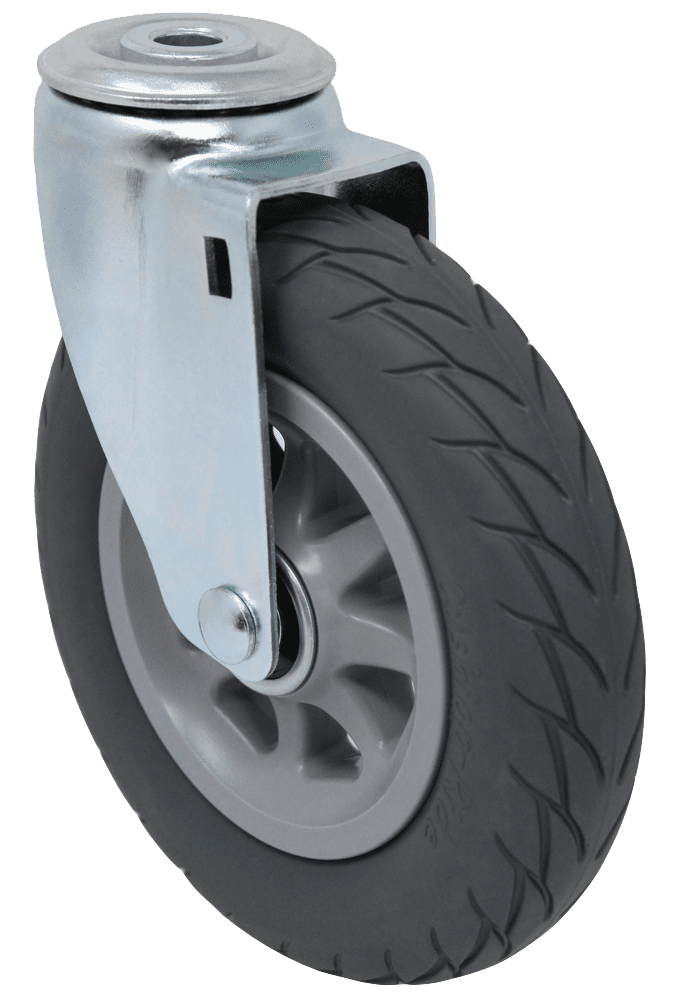

Threaded Stem Mountings

TS22: 1/2″ – 13 x 1 1/2″

Grip Ring Stem Mounting

7/16″ Diameter

GR716: 7/16″ x 1 3/8″

Need Help with your order
(800) 501-3808

You should never select on the basis of load capacity alone. There is no industry standard for load capacity ratings and they may not include a factor for abuse. Our capacity ratings are below what the casters are capable of carrying because most applications have less than perfect conditions. Please refer to the information shown at the bottom of this page. If you have any doubt as to which wheel or caster is the BEST choice for your application contact us for a recommendation.
