Overall, expanding stem casters are a convenient and flexible solution for adding mobility to items with open tubing fixtures. They provide an alternative to traditional caster mounting methods and can be used in various settings where structural tubing is utilized.

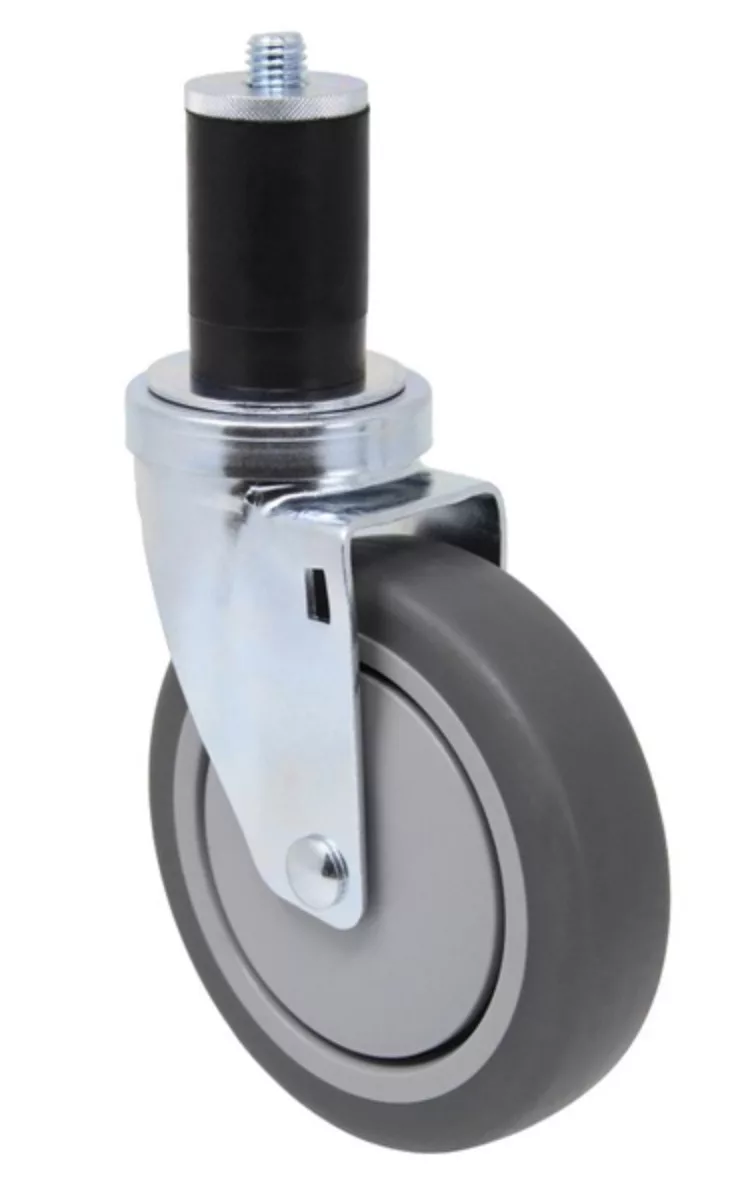

Expanding Stem Casters are versatile and convenient solutions for mounting casters into open tubing fixtures. Their primary features are the following:

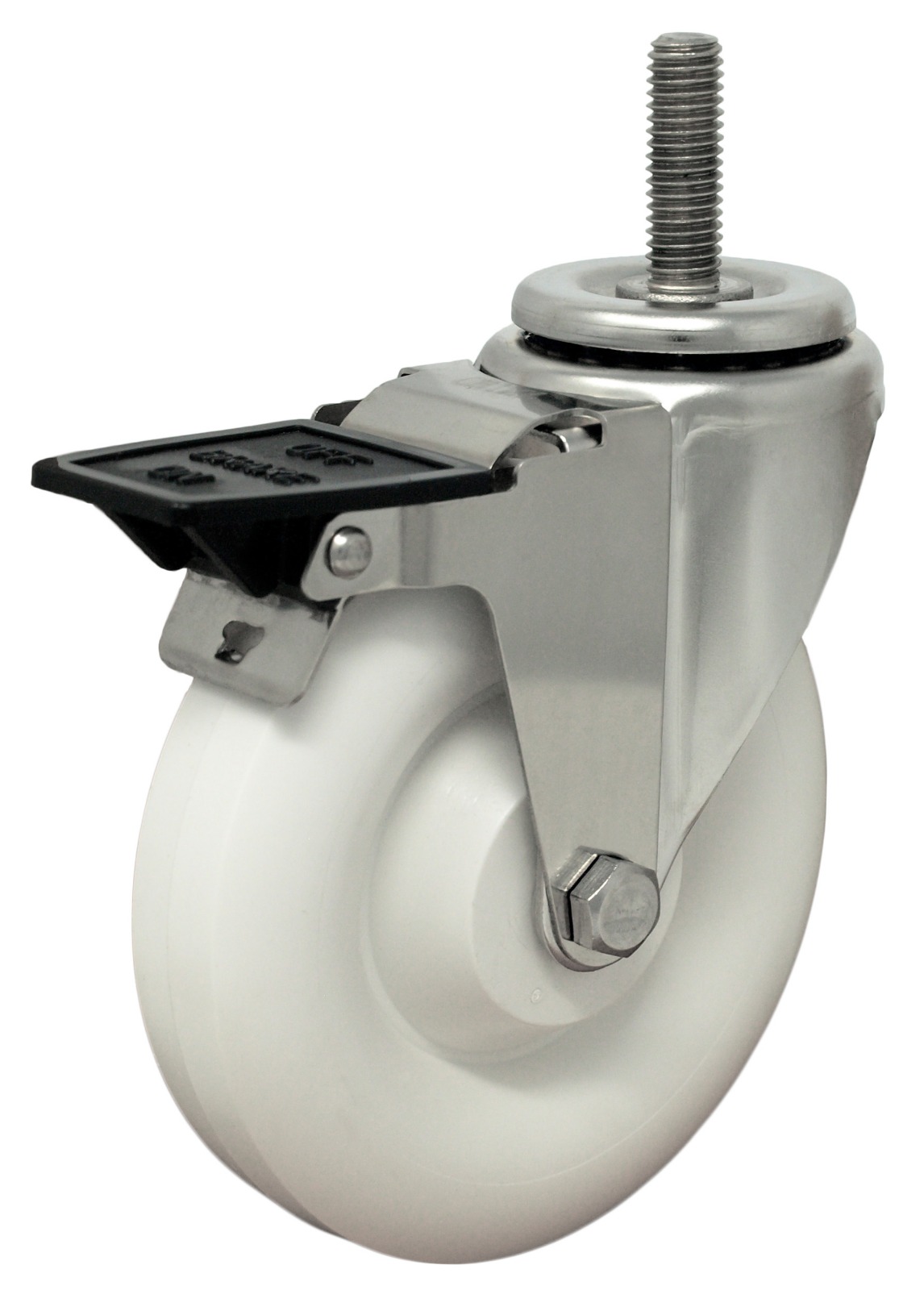

CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | RIGID CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|---|
3″ | 1 1/4″ | Gray Soft Rubber | PS | 150 | SS-K3RF3X1.25S | SS-K3RF3X1.25R | 1 3/4 | 2 7/8″ | 4 1/8″ |
3″ | 1 1/4″ | Gray Polyurethane | PS | 200 | SS-K3GP3X1.25S | SS-K3GP3X1.25R | 1 3/4 | 2 7/8″ | 4 1/8″ |
3″ | 1 1/4″ | Black/Gray Polyurethane | PS | 200 | SS-K3BK3X1.25S | SS-K3BK3X1.25R | 1 3/4 | 2 7/8″ | 4 1/8″ |
3″ | 1 1/4″ | Blue/Gray Polyurethane | PS | 200 | SS-K3BP3X1.25S | SS-K3BP3X1.25R | 1 3/4 | 2 7/8″ | 4 1/8″ |
3″ | 1 1/4″ | Red/Gray Polyurethane | PS | 200 | SS-K3RG3X1.25S | SS-K3RG3X1.25R | 1 3/4 | 2 7/8″ | 4 1/8″ |
3″ | 1 1/4″ | All Polyurethane | D | 250 | SS-K3AP3X1.25S | SS-K3AP3X1.25R | 1 3/4 | 2 7/8″ | 4 1/8″ |
3″ | 1 1/4″ | Phenolic | P | 250 | SS-K3TM3X1.25S | SS-K3TM3X1.25R | 1 3/4 | 2 7/8″ | 4 1/8″ |
3″ | 1 1/4″ | Polyolefin – Black | P | 250 | SS-K3PB3X1.25S | SS-K3PB3X1.25R | 1 3/4 | 2 7/8″ | 4 1/8″ |
3″ | 1 1/4″ | Polyolefin – White | P | 240 | SS-K3PW3X1.25S | SS-K3PW3X1.25R | 1 3/4 | 2 7/8″ | 4 1/8″ |
3″ | 1 1/4″ | High Temp Glass Filled Nylon | P | 250 | SS-K3NP3X1.25S | SS-K3NP3X1.25R | 1 3/4 | 2 7/8″ | 4 1/8″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | RIGID CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|---|
4″ | 1 1/4″ | Gray Soft Rubber | PS | 200 | SS-K3RF4X1.25S | SS-K3RF4X1.25R | 2 3/4 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | Gray Polyurethane | PS | 250 | SS-K3GP4X1.25S | SS-K3GP4X1.25R | 2 3/4 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | Black/Gray Polyurethane | PS | 250 | SS-K3BK4X1.25S | SS-K3BK4X1.25R | 2 3/4 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | Blue/Gray Polyurethane | PS | 250 | SS-K3BP4X1.25S | SS-K3BP4X1.25R | 2 3/4 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | Red/Gray Polyurethane | PS | 250 | SS-K3RG4X1.25S | SS-K3RG4X1.25R | 2 3/4 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | All Polyurethane | D | 300 | SS-K3AP4X1.25S | SS-K3AP4X1.25R | 2 3/4 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | Polyurethane on Welded Stainless | B | 250 | SS-K3US4X1.25S | SS-K3US4X1.25R | 2 3/4 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | Phenolic | P | 300 | SS-K3TM4X1.25S | SS-K3TM4X1.25R | 2 3/4 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | Polyolefin – Black | P | 300 | SS-K3PB4X1.25S | SS-K3PB4X1.25R | 2 3/4 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | Polyolefin – White | P | 300 | SS-K3PW4X1.25S | SS-K3PW4X1.25R | 2 3/4 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | High Temp Glass Filled Nylon | P | 300 | SS-K3NP4X1.25S | SS-K3NP4X1.25R | 2 3/4 | 3 1/2″ | 5 1/8″ |
4″ | 1 1/4″ | High Temp Phenolic – Fiberglass | P | 300 | SS-K3TP4X1.25S | SS-K3TP4X1.25R | 2 3/4 | 3 1/2″ | 5 1/8″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | RIGID CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|---|
5″ | 1 1/4″ | Gray Soft Rubber | PS | 250 | SS-K3RF5X1.25S | SS-K3RF5X1.25R | 3 1/4 | 4″ | 6 1/8″ |
5″ | 1 1/4″ | Gray Polyurethane | PS | 250 | SS-K3GP5X1.25S | SS-K3GP5X1.25R | 3 1/4 | 4″ | 6 1/8″ |
5″ | 1 1/4″ | Black/Gray Polyurethane | PS | 250 | SS-K3BK5X1.25S | SS-K3BK5X1.25R | 3 1/4 | 4″ | 6 1/8″ |
5″ | 1 1/4″ | Blue/Gray Polyurethane | PS | 250 | SS-K3BP5X1.25S | SS-K3BP5X1.25R | 3 1/4 | 4″ | 6 1/8″ |
5″ | 1 1/4″ | Red/Gray Polyurethane | PS | 250 | SS-K3RG5X1.25S | SS-K3RG5X1.25R | 3 1/4 | 4″ | 6 1/8″ |
5″ | 1 1/4″ | All Polyurethane | D | 300 | SS-K3AP5X1.25S | SS-K3AP5X1.25R | 3 1/4 | 4″ | 6 1/8″ |
5″ | 1 1/4″ | Polyurethane on Welded Stainless | B | 300 | SS-K3US5X1.25S | SS-K3US5X1.25R | 3 1/4 | 4″ | 6 1/8″ |
5″ | 1 1/4″ | Phenolic | P | 300 | SS-K3TM5X1.25S | SS-K3TM5X1.25R | 3 1/4 | 4″ | 6 1/8″ |
5″ | 1 1/4″ | Polyolefin – Black | P | 300 | SS-K3PB5X1.25S | SS-K3PB5X1.25R | 3 1/4 | 4″ | 6 1/8″ |
5″ | 1 1/4″ | Polyolefin – White | P | 300 | SS-K3PW5X1.25S | SS-K3PW5X1.25R | 3 1/4 | 4″ | 6 1/8″ |
5″ | 1 1/4″ | High Temp Glass Filled Nylon | P | 300 | SS-K3NP5X1.25S | SS-K3NP5X1.25R | 3 1/4 | 4″ | 6 1/8″ |
5″ | 1 1/4″ | High Temp Phenolic – Fiberglass | P | 300 | SS-K3TP5X1.25S | SS-K3TP5X1.25R | 3 1/4 | 4″ | 6 1/8″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|
3″ | 1 1/4″ | Gray Soft Rubber | 150 | SKU | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Gray Polyurethane | 200 | SS-K3GP3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Black/Gray Polyurethane | 200 | SS-K3BK3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Blue/Gray Polyurethane | 200 | SS-K3BP3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Red/Gray Polyurethane | 200 | SS-K3RG3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | All Polyurethane | 250 | SS-K3AP3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Phenolic | 250 | SS-K3TM3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Polyolefin – Black | 250 | SS-K3PB3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Polyolefin – White | 240 | SS-K3PW3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Nylon ( White ) | 300 | SS-K3NY3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | High Temp Glass Filled Nylon | 250 | SS-K3NP3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | High Temp Phenolic – Fiberglass | 250 | SS-K3TP3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
Edit CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|
4″ | 1 1/4″ | Gray Soft Rubber | 200 | SS-K3RF4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Gray Polyurethane | 250 | SS-K3GP4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Black/Gray Polyurethane | 250 | SS-K3BK4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Blue/Gray Polyurethane | 250 | SS-K3BP4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Red/Gray Polyurethane | 250 | SS-K3RG4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | All Polyurethane | 300 | SS-K3AP4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Phenolic | 300 | SS-K3TM4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Polyolefin – Black | 300 | SS-K3PB4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Polyolefin – White | 300 | SS-K3PW4X | 2 3/4 | 3 1/4″ | 3 1/4″ |
4″ | 1 1/4″ | Nylon ( White ) | 300 | SS-K3NY4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | High Temp Glass Filled Nylon | 300 | SS-K3NP4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | High Temp Phenolic – Fiberglass | 300 | SS-K3TP4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
Edit CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|
5″ | 1 1/4″ | Gray Soft Rubber | 250 | SS-K3RF5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Gray Polyurethane | 250 | SS-K3GP5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Black/Gray Polyurethane | 250 | SS-K3BK5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Blue/Gray Polyurethane | 250 | SS-K3BP5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Red/Gray Polyurethane | 250 | SS-K3RG5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | All Polyurethane | 300 | SS-K3AP5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Polyurethane on Welded Stainless | 300 | SS-K3US5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Phenolic | 300 | SS-K3TM5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Polyolefin – Black | 300 | SS-K3PB5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Polyolefin – White | 300 | SS-K3PW5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Nylon ( White ) | 300 | SS-K3NY5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | High Temp Glass Filled Nylon | 300 | SS-K3NP5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | High Temp Phenolic – Fiberglass | 300 | SS-K3TP5X | 3 1/4 | 4″ | 6 3/16″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | Swivel Casters with Total-Lock Brake Part Number | Swivel Casters Threaded Stem Only ( without Brake ) Part Number | APPROX SWIVEL WEIGHT(LBS) | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|
3″ | 1 1/4″ | Gray Rubber Caster Wheels | PS | 150 | K3ARF3X-ML | K3ARF3X | 1 3/4 | 4″ |
3″ | 1 1/4″ | Super Soft Gray Soft Rubber | B | 150 | K3ARS3X-ML | K3ARS3X | 1 3/4 | 4″ |
3″ | 1 1/4″ | High Capacity Rubber | B | 200 | K3ARH3X-ML | K3ARH3X | 1 3/4 | 4″ |
3″ | 1 1/4″ | Maroon/Gray Premium Polyurethane | B | 250 | K3APM3X-ML | K3APM3X | 1 3/4 | 4″ |
3″ | 1 1/4″ | Black/Gray Polyurethane | PS | 200 | K3ABK3X-ML | K3ABK3X | 1 3/4 | 4″ |
3″ | 1 1/4″ | Blue/Gray Polyurethane | PS | 200 | K3ABP3X-ML | K3ABP3X | 1 3/4 | 4″ |
3″ | 1 1/4″ | Gray Polyurethane | PS | 200 | K3AGP3X-ML | K3AGP3X | 1 3/4 | 4″ |
3″ | 1 1/4″ | Red/Gray Polyurethane | PS | 200 | K3ARG3X-ML | K3ARG3X | 1 3/4 | 4″ |
3″ | 1 1/4″ | Blue Polyurethane on Aluminum | B | 250 | K3APA3X-ML | K3APA3X | 1 3/4 | 4″ |
3″ | 1 1/4″ | Polyolefin – Black | P | 250 | K3APB3X-ML | K3APB3X | 1 3/4 | 4″ |
3″ | 1 1/4″ | Polyolefin – Black Donut | B | 250 | K3APB3BX-ML | K3APB3BX | 1 3/4 | 4″ |
3″ | 1 1/4″ | Nylon ( White ) | B | 250 | K3ANY3BX-ML | K3ANY3BX | 1 3/4 | 4″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | Swivel Casters with Total-Lock Brake Part Number | Swivel Casters Threaded Stem Only ( without Brake ) Part Number | APPROX SWIVEL WEIGHT(LBS) | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|
4″ | 1 3/8″ | Extra Soft Rubber | RB | 250 | K3ARC4X-ML | K3ARC4XL | 2 | 5″ |
4″ | 1 1/4″ | Gray Rubber | PS | 200 | K3ARF4X-ML | K3ARF4X | 2 | 5″ |
4″ | 1 1/4″ | Super Soft Gray Soft Rubber | B | 120 | K3ARS4X-ML | K3ARS4X | 2 | 5″ |
4″ | 1 1/4″ | High Capacity Rubber | B | 250 | K3ARH4X-ML | K3ARH4X | 2 | 5″ |
4″ | 1 1/4″ | Maroon/Gray Premium Polyurethane | B | 300 | K3APM4X-ML | K3APM4X | 2 | 5″ |
4″ | 1 1/4″ | Gray Polyurethane | PS | 250 | K3AGP4X-ML | K3AGP4X | 2 | 5″ |
4″ | 1 1/4″ | Black/Gray Polyurethane | PS | 250 | K3ABK4X-ML | K3ABK4X | 2 | 5″ |
4″ | 1 1/4″ | Blue/Gray Polyurethane | PS | 250 | K3ABP4X-ML | K3ABP4X | 2 | 5″ |
4″ | 1 1/4″ | Red/Gray Polyurethane | PS | 250 | K3ARG4X-ML | K3ARG4X | 2 | 5″ |
4″ | 1 1/4″ | Blue Polyurethane on Aluminum | B | 250 | K3APA4X-ML | K3APA4X | 2 | 5″ |
4″ | 1 1/4″ | Gray Rubber on Aluminum | B | 300 | K3ARA4X-ML | K3ARA4X | 2 | 5″ |
4″ | 1 1/4″ | Polyolefin – Black | P | 300 | K3APB4X-ML | K3APB4X | 2 | 5″ |
4″ | 1 1/4″ | Polyolefin – Black Donut | B | 300 | K3APB4BX-ML | K3APB4BX | 2 | 5″ |
4″ | 1 1/4″ | Nylon ( White ) | B | 300 | K3ANY4BX-ML | K3ANY4BX | 2 | 5″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | Swivel Casters with Total-Lock Brake Part Number | Swivel Casters Threaded Stem Only ( without Brake ) Part Number | APPROX SWIVEL WEIGHT(LBS) | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|
5″ | 1 1/4″ | Gray Soft Rubber | PS | 250 | K3ARF5X-ML | K3ARF5XE | 2 1/2 | 6 1/8″ |
5″ | 1 1/4″ | Super Soft Gray Soft Rubber | B | 125 | K3ARS5X-ML | K3ARS5XE | 2 1/2 | 6 1/8″ |
5″ | 1 1/4″ | High Capacity Rubber | B | 250 | K3APM5X-ML | K3APM5X | 2 1/2 | 6 1/8″ |
5″ | 1 1/4″ | Maroon/Gray Premium Polyurethane | B | 300 | K3APM5X-ML | K3APM5X | 2 1/2 | 6 1/8″ |
5″ | 1 1/4″ | Gray Polyurethane | PS | 250 | K3AGP5X-ML | K3AGP5X | 2 1/2 | 6 1/8″ |
5″ | 1 1/4″ | Black/Gray Polyurethane | PS | 250 | K3ABK5X-ML | K3ABK5X | 2 1/2 | 6 1/8″ |
5″ | 1 1/4″ | Blue/Gray Polyurethane | PS | 250 | K3ABP5X-ML | K3ABP5X | 2 1/2 | 6 1/8″ |
5″ | 1 1/4″ | Red/Gray Polyurethane | PS | 250 | K3ARG5X-ML | K3ARG5X | 2 1/2 | 6 1/8″ |
5″ | 1 1/4″ | Blue Polyurethane on Aluminum | B | 250 | K3APA5X-ML | K3APA5X | 2 1/2 | 6 1/8″ |
5″ | 1 1/4″ | Gray Rubber on Aluminum | B | 300 | K3ARA5X-ML | K3ARA5X | 2 1/2 | 6 1/8″ |
5″ | 1 1/4″ | Polyolefin – Black | P | 300 | K3APB5X-ML | K3APB5X | 2 1/2 | 6 1/8″ |
5″ | 1 1/4″ | Polyolefin – Black Donut | B | 300 | K3APB5BX-ML | K3APB5BX | 2 1/2 | 6 1/8″ |
5″ | 1 1/4″ | Nylon ( White ) | B | 300 | K3ANY5BX-ML | K3ANY5BX | 2 1/2 | 6 1/8″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | Swivel Casters with Total-Lock Brake Part Number | Swivel Casters Threaded Stem Only ( without Brake ) Part Number | APPROX SWIVEL WEIGHT(LBS) | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|
6″ | 1 1/4″ | Gray Rubber | PS | 300 | K3ARFR6X-ML | K3ARFR6X | 3 | 7″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|
3″ | 1 1/4″ | Gray Soft Rubber | PS | 150 | SS-3RF3X | 1 3/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Gray Polyurethane | PS | 200 | SS-3GP3X | 1 3/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Black/Gray Polyurethane | PS | 200 | SS-3BK3X | 1 3/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Blue/Gray Polyurethane | PS | 200 | SS-3BP3X | 1 3/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Red/Gray Polyurethane | PS | 200 | SS-3RG3X | 1 3/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | All Polyurethane | D | 250 | SS-3AP3X | 1 3/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Phenolic | P | 250 | SS-3TM3X | 1 3/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Nylon ( White ) | P | 300 | SS-3NY3X | 1 3/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Polyolefin – Black | P | 250 | SS-3PB3X | 1 3/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Polyolefin – White | P | 240 | SS-3PW3X | 1 3/4 | 2 7/8″ | 4 1/16″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|
4″ | 1 1/4″ | Gray Soft Rubber | PS | 200 | SS-3RF4X | 2 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Gray Polyurethane | PS | 250 | SS-3GP4X | 2 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Black/Gray Polyurethane | PS | 250 | SS-3BK4X | 2 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Blue/Gray Polyurethane | PS | 250 | SS-3BP4X | 2 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Red/Gray Polyurethane | PS | 250 | SS-3RG4X | 2 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | All Polyurethane | D | 300 | SS-3AP4X | 2 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Phenolic | P | 300 | SS-3TM4X | 2 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Nylon ( White ) | P | 300 | SS-3NY4X | 2 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Polyolefin – Black | P | 300 | SS-3PB4X | 2 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Polyolefin – White | P | 300 | SS-3PW4X | 2 | 3 1/4″ | 5 1/8″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|
5″ | 1 1/4″ | Gray Soft Rubber | PS | 250 | SS-3RF5X | 2 1/2 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Gray Polyurethane | PS | 250 | SS-3GP5X | 2 1/2 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Black/Gray Polyurethane | PS | 250 | SS-3BK5X | 2 1/2 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Blue/Gray Polyurethane | PS | 250 | SS-3BP5X | 2 1/2 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Red/Gray Polyurethane | PS | 250 | SS-3RG5X | 2 1/2 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | All Polyurethane | D | 300 | SS-3AP5X | 2 1/2 | 4″ | 2 1/2 |
5″ | 1 1/4″ | Phenolic | P | 300 | SS-3TM5X | 2 1/2 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Nylon ( White ) | P | 300 | SS-3NY5X | 2 1/2 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Polyolefin – Black | P | 300 | SS-3PB5X | 2 1/2 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Polyolefin – White | P | 300 | SS-3PW5X | 2 1/2 | 4″ | 6 3/16″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|
3″ | 1 1/4″ | Gray Soft Rubber | 150 | SKU | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Gray Polyurethane | 200 | SS-K3GP3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Black/Gray Polyurethane | 200 | SS-K3BK3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Blue/Gray Polyurethane | 200 | SS-K3BP3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Red/Gray Polyurethane | 200 | SS-K3RG3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | All Polyurethane | 250 | SS-K3AP3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Phenolic | 250 | SS-K3TM3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Polyolefin – Black | 250 | SS-K3PB3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Polyolefin – White | 240 | SS-K3PW3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | Nylon ( White ) | 300 | SS-K3NY3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | High Temp Glass Filled Nylon | 250 | SS-K3NP3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
3″ | 1 1/4″ | High Temp Phenolic – Fiberglass | 250 | SS-K3TP3X | 2 1/4 | 2 7/8″ | 4 1/16″ |
Edit CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|
4″ | 1 1/4″ | Gray Soft Rubber | 200 | SS-K3RF4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Gray Polyurethane | 250 | SS-K3GP4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Black/Gray Polyurethane | 250 | SS-K3BK4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Blue/Gray Polyurethane | 250 | SS-K3BP4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Red/Gray Polyurethane | 250 | SS-K3RG4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | All Polyurethane | 300 | SS-K3AP4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Phenolic | 300 | SS-K3TM4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Polyolefin – Black | 300 | SS-K3PB4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | Polyolefin – White | 300 | SS-K3PW4X | 2 3/4 | 3 1/4″ | 3 1/4″ |
4″ | 1 1/4″ | Nylon ( White ) | 300 | SS-K3NY4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | High Temp Glass Filled Nylon | 300 | SS-K3NP4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
4″ | 1 1/4″ | High Temp Phenolic – Fiberglass | 300 | SS-K3TP4X | 2 3/4 | 3 1/4″ | 5 1/8″ |
Edit CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER Part Number | APPROX SWIVEL WEIGHT (LBS) | APPROX SWIVEL RADIUS | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|
5″ | 1 1/4″ | Gray Soft Rubber | 250 | SS-K3RF5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Gray Polyurethane | 250 | SS-K3GP5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Black/Gray Polyurethane | 250 | SS-K3BK5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Blue/Gray Polyurethane | 250 | SS-K3BP5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Red/Gray Polyurethane | 250 | SS-K3RG5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | All Polyurethane | 300 | SS-K3AP5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Polyurethane on Welded Stainless | 300 | SS-K3US5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Phenolic | 300 | SS-K3TM5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Polyolefin – Black | 300 | SS-K3PB5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Polyolefin – White | 300 | SS-K3PW5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | Nylon ( White ) | 300 | SS-K3NY5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | High Temp Glass Filled Nylon | 300 | SS-K3NP5X | 3 1/4 | 4″ | 6 3/16″ |
5″ | 1 1/4″ | High Temp Phenolic – Fiberglass | 300 | SS-K3TP5X | 3 1/4 | 4″ | 6 3/16″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER WITH TOTAL LOCKING BRAKE Part Number | MATCHING PLAIN SWIVEL CASTER WITH NO BRAKE Part Number | APPROX SWIVEL WEIGHT (LBS) | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|
3″ | 1 1/4″ | Gray Rubber Caster Wheels | PS | 150 | SS-3ARF3X-ML | SS-3ARF3X | 2 | 4 1/8″ |
3″ | 1 1/4″ | Polyurethane Caster Wheels with Polyolefin Centers | PS | 200 | SS-3AGP3X-ML | SS-3AGP3X | 2 | 4 1/8″ |
3″ | 1 1/4″ | Polyurethane Caster Wheels with Polyolefin Centers | PS | 200 | SS-3ABK3X-ML | SS-3ABK3X | 2 | 4 1/8″ |
3″ | 1 1/4″ | Polyurethane Caster Wheels with Polyolefin Centers | PS | 200 | SS-3ABP3X-ML | SS-3ABP3X | 2 | 4 1/8″ |
3″ | 1 1/4″ | Polyurethane Caster Wheels with Polyolefin Centers | PS | 200 | SS-3ARG3X-ML | SS-3ARG3X | 2 | 4 1/8″ |
3″ | 1 1/4″ | All Polyurethane Caster Wheels | D | 250 | SS-3AAP3X-ML | SS-3AAP3X | 2 | 4 1/8″ |
3″ | 1 1/4″ | Polyolefin Caster Wheels | P | 240 | SS-3APB3X-ML | SS-3APB3X | 2 | 4 1/8″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER WITH TOTAL LOCKING BRAKE Part Number | MATCHING PLAIN SWIVEL CASTER WITH NO BRAKE Part Number | APPROX SWIVEL WEIGHT (LBS) | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|
4″ | 1 1/4″ | Gray Rubber Caster Wheels | PS | 200 | SS-3ARF4X-ML | SS-3ARF4X | 2 | 5 1/8″ |
4″ | 1 1/4″ | Polyurethane Caster Wheels with Polyolefin Centers | PS | 250 | SS-3AGP4X-ML | SS-3AGP4X | 2 | 5 1/8″ |
4″ | 1 1/4″ | Polyurethane Caster Wheels with Polyolefin Centers | PS | 250 | SS-3ABK4X-ML | SS-3ABK4X | 2 | 5 1/8″ |
4″ | 1 1/4″ | Polyurethane Caster Wheels with Polyolefin Centers | PS | 250 | SS-3ABP4X-ML | SS-3ABP4X | 2 | 5 1/8″ |
4″ | 1 1/4″ | Polyurethane Caster Wheels with Polyolefin Centers | PS | 250 | SS-3ARG4X-ML | SS-3ARG4X | 2 | 5 1/8″ |
4″ | 1 1/4″ | All Polyurethane Caster Wheels | D | 300 | SS-3AAP4X-ML | SS-3AAP4X | 2 | 5 1/8″ |
4″ | 1 1/4″ | All Polyurethane Caster Wheels | B | 250 | SS-3AUS4X-ML | SS-3AUS4X | 2 | 5 1/8″ |
4″ | 1 1/4″ | Polyolefin Caster Wheels | P | 300 | SS-3APB4X-ML | SS-3APB4X | 2 | 5 1/8″ |
CASTER WHEEL DIAM. | TREAD WIDTH | WHEEL TREAD MATERIAL Click below for Replacement Wheels | STD BRG TYPE | MAX CAP. EACH CASTER LBS. | SWIVEL CASTER WITH TOTAL LOCKING BRAKE Part Number | MATCHING PLAIN SWIVEL CASTER WITH NO BRAKE Part Number | APPROX SWIVEL WEIGHT (LBS) | OVERALL HEIGHT |
---|---|---|---|---|---|---|---|---|
5″ | 1 1/4″ | Gray Rubber Caster Wheels | PS | 250 | SS-3ARF5X-ML | SS-3ARF5X | 6 1/4″ | 9 1/2″ |
5″ | 1 1/4″ | Polyurethane Caster Wheels with Polyolefin Centers | PS | 250 | SS-3AGP5X-ML | SS-3AGP5X | 6 1/4″ | 9 1/2″ |
5″ | 1 1/4″ | Polyurethane Caster Wheels with Polyolefin Centers | PS | 250 | SS-3ABK5X-ML | SS-3ABK5X | 6 1/4″ | 9 1/2″ |
5″ | 1 1/4″ | Polyurethane Caster Wheels with Polyolefin Centers | PS | 250 | SS-3ABP5X-ML | SS-3ABP5X | 6 1/4″ | 9 1/2″ |
5″ | 1 1/4″ | Polyurethane Caster Wheels with Polyolefin Centers | PS | 250 | SS-3ARG5X-ML | SS-3ARG5X | 6 1/4″ | 9 1/2″ |
5″ | 1 1/4″ | All Polyurethane Caster Wheels | D | 300 | SS-3AAP5X-ML | SS-3AAP5X | 6 1/4″ | 9 1/2″ |
5″ | 1 1/4″ | All Polyurethane Caster Wheels | B | 300 | SS-3AUS5X-ML | SS-3AUS5X | 6 1/4″ | 9 1/2″ |
5″ | 1 1/4″ | Polyolefin Caster Wheels | P | 300 | SS-3APB5X-ML | SS-3APB5X | 6 1/4″ | 9 1/2″ |
You should never select on the basis of load capacity alone. There is no industry standard for load capacity ratings and they may not include a factor for abuse. Our capacity ratings are below what the casters are capable of carrying because most applications have less than perfect conditions. Please refer to the information shown at the bottom of this page. If you have any doubt as to which wheel or caster is the BEST choice for your application contact us for a recommendation.
