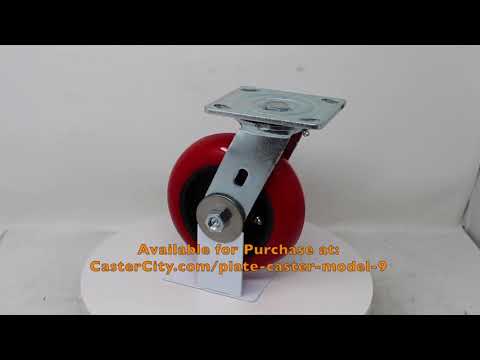

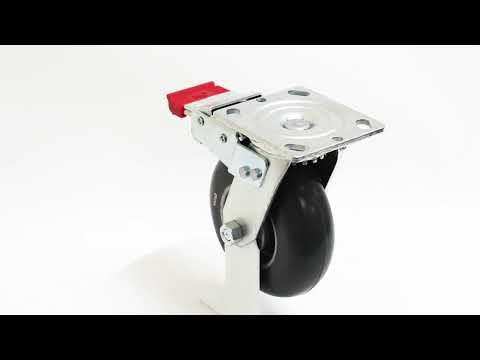

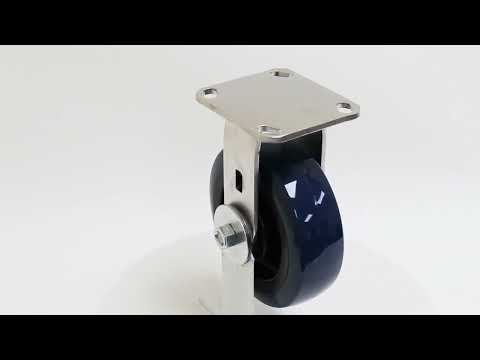

Plate Caster Model 9

Caster City ships all casters from Texas, Ohio, or Washington.

The Model 9 industrial caster is designed to support a capacity of up to 1200 pounds per caster, making it ideal for heavy-duty applications. Manufactured with rugged cold-forged construction, these casters offer exceptional durability and reliability. They are specifically recommended for manually moved applications, ensuring smooth and efficient operation in demanding industrial environments. As our most popular industrial caster, Model 9 is widely used across various industries due to its versatility, robust performance, and cost-effectiveness, making it an excellent choice for those seeking high-quality solutions at a competitive price.

Industrial Plate Caster – Plate Mount – Capacity up to 1,200 pounds per caster.

  • Top Plate Size: 4″ x 4 1/2″
  • Bolt Hole Spacing: 2-5/8” x 3-5/8” to 3” x 3”
  • Mounting Bolt Size: 3/8″
Click Here For Stainless Steel Plate Caster Model 9
Click Here For 316 Stainless Steel Industrial Plate Caster Model 9

Click Links Below for 2D & STP Drawings of Caster Model 9 (Mounting Plate Included):

Thumbnail 1
Thumbnail 2
Thumbnail 3

Types of Wheels for the Plate Caster Model 9

img MR
img RF
img EN
img BL
img PY
img PYC
img PYR
img PCI
img UXY
img UP
img MG
img PP
img PM
img UG
img HU
img AP
img UAO
img PB
img RK
img NY
img MK
img NX
img CL
img DS
img DSC
img VL
img VS
img VN
img NP
img TP
img WF
img RH

Plate Caster Model 9 Chart
(Click the Part Number to Order)

Desktop: When you put your mouse over the words in the wheel description column you see a picture of the wheel. Click on the part number in the Swivel and Rigid columns to see the complete caster.

Mobile: Hold down your finger on the chart and scroll to the right to click on the part number you would like to order.

Filter through the Available Diameters to find the size you need.

Wheel Diameter Tread Width Overall Height Swivel Radius
3-1/4″ 2″ 4-5/8″ 3-1/2″
4″ 2″ 5-1/2″ 3-1/2″
5″ 2″ 6-1/2″ 4″
6″ 2″ 7-1/2″ 4-1/2″
8″ 2″ 9-1/2″ 6″

WHEEL TREAD MATERIAL Click below for Replacement Wheels STD BRG TYPE MAX CAP. EACH CASTER LBS. SWIVEL CASTER Part Number RIGID CASTER Part Number APPROX SWIVEL WEIGHT (LBS)
Nylon
 R 900 9MK3.25X2-S 9MK3.25X2-R 5
Polyurethane on Iron – Green
 R 600 9PY3.25X2-S 9PY3.25X2-R 6
Phenolic
 R 700 9TM3.25X2-S 9TM3.25X2-R 5

WHEEL TREAD MATERIAL Click below for Replacement Wheels STD BRG TYPE MAX CAP. EACH CASTER LBS. SWIVEL CASTER Part Number RIGID CASTER Part Number APPROX SWIVEL WEIGHT (LBS)
Conventional Moldon Rubber
 R 250 9MR4X2-S 9MR4X2-R 6 1/2
Gray Soft Rubber, Flat
 		R 300 9RF4X2-S 9RF4X2-R 5
Neoprene Rubber
 PS 500 9EN4X2PS-S 9EN4X2PS-R 5
Blue Ergonomic Rubber
 PS 400 9BL4X2-S 9BL4X2-R 5
High Capacity Rubber
 B 350 9RH4X2-S 9RH4X2-R 5
Polyurethane on Iron – Green
 R 600 9PY4X2-S 9PY4X2-R 6 1/2
Polyurethane on Iron – Red
 R 600 9PYR4X2-S 9PYR4X2-R 6 1/2
Blue Polyurethane on Iron – Slight Crown
 R 700 9PYC4X2-S 9PYC4X2-R 7 1/2
Red Polyurethane on Iron – Crown
 PS 700 9PCI4X2PS-S 9PCI4X2PS-R 7 1/2
Self-Energizing Ergonomic Polyurethane – Crown – Orange
 PS 800 9UXY4X2-S 9UXY4X2-R 5
Crown Tread Ergonomic Polyurethane on Aluminum
PS 700 9UAO4X2-S 9UAO4X2-R 5
Blue/Black Polyurethane On Polyolefin
 R 400 9UP4X2-S 9UP4X2-R 6
Maroon/Gray Polyurethane On Polyolefin
 R 500 9MG4X2-S 9MG4X2-R 6
High Capacity Purple Polyurethane on Polyolefin
 PS 600 9PP4X2-S 9PP4X2-R 5 1/2
Premium Maroon Polyurethane on Polyolefin
 R 400 9PM4X2-S 9PM4X2-R 6
Poly on Glass-Filled Nylon
 R 700 9UG4X2-S 9UG4X2-R 6
All Polyurethane Blue
 R 700 9AP4X2-S 9AP4X2-R 5
Reinforced Gray Solid Polyurethane
 PS 1000 9HU4X2-S 9HU4X2-R 5
Polyolefin – Black
 R 500 9PB4X2-S 9PB4X2-R 4 1/2
Polyolefin – High Capacity
 PS 800 9RK4X2PS-S 9RK4X2PS-R 5 1/2
Nylon ( White )
 R 800 9NY4X2-S 9NY4X2-R 5 1/2
Ultra High Capacity Polymer
 PS 1200 9NX4X2-S 9NX4X2-R 5 1/2
Nylon ( Black )
 PS 800 9MK4X2PS-S 9MK4X2PS-R 5 1/2
Phenolic
 R 800 9TM4X2-S 9TM4X2-R 5 1/4
Gray Iron
 R 1000 9CL4X2-S 9CL4X2-R 8 1/2
Ductile Steel – Flat
 R 1200 9DS4X2-S 9DS4X2-R 9
Ductile Steel – Slight Crown
 R 1200 9DSC4X2-S 9DSC4X2-R 9
High Heat Ductile Steel – Slight Crown
 BRNZ 1200 9DSC4X2BRNZ-S 9DSC4X2BRNZ-R 9
V-Groove Iron
 R 500 9VL4X2-S 9VL4X2-R 6 3/4
V-Groove Ductile Steel
 R 1250 9VS4X2-S 9VS4X2-R 7 3/4
V-Groove Glass Filled Nylon
 PS 500 9VN4X2PS-S 9VN4X2PS-R 5 1/4
High Temp Moist Heat – Fiberglass-Nylon
 P 600 9NP4X2-S 9NP4X2-R 4 1/2
High Temp Phenolic – Fiberglass
 R 600 9TP4X2-S 9TP4X2-R 4 1/2
High Temp Phenolic – Fiberglass
 BRNZ 750 9TP4x2BRNZ-S 9TP4x2BRNZ-R 5
Water Resistant Polyurethane
 PS 500 9WF4X2-S 9WF4X2-R 5
V-Groove Wheel – Ultra High Capacity Polymer
 R 1250 9VX4X2-S 9VX4X2-R 5 1/2
Frame Only – No Wheel NA NA 9YA4x2-S 9YA4X2-R 3 3/4

WHEEL TREAD MATERIAL STD BRG TYPE MAX CAP. EACH CASTER LBS SWIVEL CASTER Part Number RIGID CASTER Part Number APPROX SWIVEL WEIGHT (LBS)
Conventional Moldon Rubber
 R 300 9MR5X2-S 9MR5X2-R 7 1/2
Gray Soft Rubber, Flat
 R 350 9RF5X2-S 9RF5X2-R 6
Neoprene Rubber
 PS 550 9EN5X2PS-S 9EN5X2PS-R 6
Blue Ergonomic Rubber
 PS 500 9BL5X2-S 9BL5X2-R 6
High Capacity Rubber
 B 450 9RH5X2-S 9RH5X2-R 6
Polyurethane on Iron – Green
 R 900 9PY5X2-S 9PY5X2-R 7 3/4
Polyurethane on Iron – Red
 R 800 9PYR5X2-S 9PYR5X2-R 7 3/4
Blue Polyurethane on Iron – Slight Crown
 R 1000 9PYC5X2-S 9PYC5X2-R 8 1/2
Red Polyurethane on Iron – Crown
 PS 800 9PCI5X2PS-S 9PCI5X2PS-R 8 1/2
Self-Energizing Ergonomic Polyurethane – Crown – Orange
 PS 900 9UXY5X2-S 9UXY5X2-R 6
Crown Tread Ergonomic Polyurethane on Aluminum
PS 800 9UAO5X2-S 9UAO5X2-R 6
Blue/Black Polyurethane On Polyolefin
 R 500 9UP5X2-S 9UP5X2-R 7
High Capacity Purple Polyurethane On Polyolefin
 PS 750 9PP5X2-S 9PP5X2-R 7
Maroon/Gray Polyurethane On Polyolefin
 R 600 9MG5X2-S 9MG5X2-R 7
Premium Maroon Polyurethane on Polyolefin
 R 600 9PM4X2-S 9PM5X2-R 7
Polyurethane on Nylon
R 1000 9UG5X2-S 9UG5X2-R 7
All Polyurethane Blue
 R 800 9AP5X2-S 9AP5X2-R 5 1/2
Reinforced Gray Solid Polyurethane
 PS 1250 9HU5X2-S 9HU5X2-R 6
Polyolefin – Black
 R 600 9PB5X2-S 9PB5X2-R 5
Polyolefin – High Capacity
 PS 900 9RK5X2PS-S 9RK5X2PS-R 6
Nylon ( White )
 R 900 9NY5X2-S 9NY5X2-R 6
Nylon ( Black )
 PS 900 9MK5X2PS-S 9MK5X2PS-R 6
Phenolic
 R 800 9TM5X2-S 9TM5X2-R 5 3/4
Gray Iron
 R 1000 9CL5X2-S 9CL5X2-R 9 3/4
Ductile Steel
 R 1200 9DS5X2-S 9DS5X2-R 10
Ductile Steel – Slight Crown
 R 1200 9DSC5X2-S 9DSC5X2-R 10
Ductile Steel – Slight Crown
 BRNZ 1200 9DSC5X2BRNZ-S 9DSC5X2BRNZ-R 10
High Temp Moist Heat – Fiberglass-Nylon
 P 750 9NP5X2-S 9NP5X2-R 5
High Temp Phenolic – Fiberglass
 R 750 9TP5X2-S 9TP5X2-R 5
High Temp Phenolic – Fiberglass
 BRNZ 750 9TP5X2BRNZ-S 9TP5X2BRNZ-R 5
Water Resistant Polyurethane
 PS 600 9WF5X2-S 9WF5X2-R 5
V-Groove Wheel – Ultra High Capacity Polymer
 PS 1250 9VX5X2-S 9VX5X2-R 6 1/2
Frame Only – No Wheel NA NA 9YA5X2-S 9YA5X2-R 3 3/4

WHEEL TREAD MATERIAL STD BRG TYPE MAX CAP. EACH CASTER LBS. SWIVEL CASTER Part Number RIGID CASTER Part Number APPROX SWIVEL WEIGHT (LBS)
SUPER CUSHION Rubber
 B 350 9CB6X2-S 9CB6X2-R 7
Conventional Moldon Rubber
 R 450 9MR6X2-S 9MR6X2-R 8 3/4
Gray Soft Rubber, Flat
 R 400 9RF6X2-S 9RF6X2-R 7
Gray Soft Rubber ( Crown )
 R 350 9RD6X2-S 9RD6X2-R 6 1/2
Neoprene Rubber
 PS 600 9EN6X2PS-S 9EN6X2PS-R 7
Blue Ergonomic Rubber
 PS 600 9BL6X2-S 9BL6X2-R 7
High Capacity Rubber
 B 600 9RH6X2-S 9RH6X2-R 7
Polyurethane on Iron – Green
 R 900 9PY6X2-S 9PY6X2-R 9 1/4
Polyurethane on Iron – Red
 R 900 9PYR6X2-S 9PYR6X2-R 9 1/4
Blue Polyurethane on Iron – Slight Crown
 PS 1200 9PYC6X2-S 9PYC6X2-R 10 3/4
Red Polyurethane on Iron – Crown
 PS 1000 9PCI6X2PS-S 9PCI6X2PS-R 10 3/4
Self-Energizing Ergonomic Polyurethane – Crown – Orange
 PS 1000 9UXY6X2-S 9UXY6X2-R 6
Crown Tread Ergonomic Polyurethane on Aluminum
PS 1000 9UAO6X2-S 9UAO6X2-R 6
95A Green Polyurethane on Aluminum – Crown
 PS 900 9UAC6X2-S 9UAC6X2-R 6
Extra Thick Polyurethane on Aluminum
 PS 1200 9CP6X2PS-S 9CP6X2PS-R 8
Blue/Black Polyurethane On Polyolefin
 R 600 9UP6X2-S 9UP6X2-R 8
High Capacity Purple Polyurethane On Polyolefin
 PS 800 9PP6X2-S 9PP6X2-R 7
Maroon/Gray Polyurethane On Polyolefin
 R 700 9MG6X2-S 9MG6X2-R 8
Premium Maroon Polyurethane on Polyolefin
 R 750 9PM6X2-S 9PM6X2-R 8
Polyurethane on Nylon
 R 1200 9UG6X2-S 9UG6X2-R 8
All Polyurethane Blue
 R 900 9AP6X2-S 9AP6X2-R 6 1/2
Reinforced Gray Solid Polyurethane
 PS 1250 9HU6X2-S 9HU6X2-R 7
Polyolefin – Black
 R 700 9PB6X2-S 9PB6X2-R 6
Polyolefin – High Capacity
 PS 900 9RK6X2PS-S 9RK6X2PS-R 7
Nylon ( White )
 R 900 9NY6X2-S 9NY6X2-R 7
Nylon ( White )
 PS 900 9MK6X2PS-S 9MK6X2PS-R 9
Phenolic
 R 900 9TM6X2-S 9TM6X2-R 6 1/2
Gray Iron
 R 1000 9CL6X2-S 9CL6X2-R 11 1/4
Ductile Steel
 R 1200 9DS6X2-S 9DS6X2-R 11
Ductile Steel – Very Slight Crown
 R 1200 9DSC6X2-S 9DSC6X2-R 11
High Heat Ductile Steel – Slight Crown
 BRNZ 1200 9DSC6X2BRNZ-S 9DSC6X2BRNZ-R 11
V-Groove Iron
 R 500 9VL6X2-S 9VL6X2-R 9 1/2
V-Groove Ductile Steel
 R 1250 9VS6X2-S 9VS6X2-R 11
High Temp Moist Heat – Fiberglass-Nylon
 P 900 9NP6X2-S 9NP6X2-R 6
High Temp Phenolic – Fiberglass
 R 900 9TP6X2-S 9TP6X2-R 6
High Temp Phenolic – Fiberglass
 BRNZ 900 9TP6X2BRNZ-S 9TP6X2BRNZ-R 6
Water Resistant Polyurethane
 PS 700 9WF6X2-S 9WF6X2-R 6
Low Friction Crown Tread 65D Polyurethane on Aluminum
 PS 1000 9UDC6X2-S 9UDC6X2-R 6
V-Groove Wheel – Ultra High Capacity Polymer
 PS 1250 9VX6X2-S 9VX6X2-R 7 1/2
Frame Only – No Wheel NA NA 9YA6X2-S 9YA6X2-R 5

WHEEL TREAD MATERIAL STD BRG TYPE MAX CAP. EACH CASTER LBS. SWIVEL CASTER Part Number RIGID CASTER Part Number APPROX SWIVEL WEIGHT (LBS)
SUPER CUSHION Rubber
 B 450 9CB8X2-S 9CB8X2-R 9
Conventional Moldon Rubber
 R 500 9MR8X2-S 9MR8X2-R 11
Gray Soft Rubber, Flat
 R 550 9RF8X2-S 9RF8X2-R 8
Gray Soft Rubber ( Crown )
 R 450 9RD8X2-S 9RD8X2-R 7 1/4
Neoprene Rubber
 PS 700 9EN8X2PS-S 9EN8X2PS-R 8
Blue Ergonomic Rubber
 PS 700 9BL8X2-S 9BL8X2-R 8
High Capacity Rubber
 B 700 9RH8X2-S 9RH8X2-R 8
Polyurethane on Iron – Green
 R 900 9PY8X2-S 9PY8X2-R 12
Polyurethane on Iron – Red
 R 900 9PYR8X2-S 9PYR8X2-R 12
Blue Polyurethane on Iron – Slight Crown
 PS 1200 9PYC8X2-S 9PYC8X2-R 14
Red Polyurethane on Iron – Crown
 PS 1000 9PCI8X2PS-S 9PCI8X2PS-R 14
Self-Energizing Ergonomic Polyurethane – Crown – Orange
 PS 1200 9UXY8X2-S 9UXY8X2-R 7
Crown Tread Ergonomic Polyurethane on Aluminum
PS 1200 9UAO8X2-S 9UAO8X2-R 7
95A Green Polyurethane on Aluminum – Crown
 PS 900 9UAC8X2-S 9UAC8X2-R 7
Extra Thick Polyurethane on Aluminum
 PS 1200 9CP8X2PS-S 9CP8X2PS-R 9
Blue/Black Polyurethane On Polyolefin
 R 800 9UP8X2-S 9UP8X2-R 8
High Capacity Purple Polyurethane On Polyolefin
 PS 1000 9PP8X2-S 9PP8X2-R 7
Maroon/Gray Polyurethane On Polyolefin
 R 800 9MG8X2-S 9MG8X2-R 8
Premium Maroon Polyurethane on Polyolefin
 R 1000 9PM8X2-S 9PM8X2-R 8
Polyurethane on Nylon
 R 1250 9UG8X2-S 9UG8X2-R 8
All Polyurethane Blue
 R 900 9AP8X2-S 9AP8X2-R 8
Reinforced Gray Solid Polyurethane
 PS 1250 9HU8X2-S 9HU8X2-R 9
Polyolefin – Black
 R 800 9PB8X2-S 9PB8X2-R 7 1/2
Polyolefin – High Capacity
 PS 900 9RK8X2PS-S 9RK8X2PS-R 8 1/2
Nylon ( White )
 R 900 9NY8X2-S 9NY8X2-R 8 1/2
Nylon ( Black )
 PS 900 9MK8X2PS-S 9MK8X2PS-R 8 1/2
Phenolic
 R 900 9TM8X2-S 9TM8X2-R 8
Gray Iron
 R 1000 9CL8X2-S 9CL8X2-R 9.5
Ductile Steel
 R 1200 9DS8X2-S 9DS8X2-R 12
Ductile Steel – Slight Crown
 R 1200 9DSC8X2-S 9DSC8X2-R 12
High Heat Ductile Steel – Slight Crown
 BRNZ 1200 9DSC8X2BRNZ-S 9DSC8X2BRNZ-R 12
High Temp Moist Heat – Fiberglass-Nylon
 R 900 9NP8X2-S 9NP8X2-R 7 1/2
High Temp Phenolic – Fiberglass
 R 900 9TP8X2-S 9TP8X2-R 7 1/2
High Temp Phenolic – Fiberglass
 BRNZ 900 9TP8X2BRNZ-S 9TP8X2BRNZ-R 7 1/2
Water Resistant Polyurethane
 PS 800 9WF8X2-S 9WF8X2-R 7 1/2
V-Groove Wheel – Ultra High Capacity Polymer
 R 1250s 9VX8X2-S 9VX8X2-R 8 1/2
Frame Only – No Wheel NA NA 9YA8X2-S 9YA8X2-R 6

Plate Caster Model 9 Instructions:

You should never select on the basis of load capacity alone. Capacity ratings do not take into account the effort required to manually move a load. Capacity ratings are based on manual operation under ideal conditions. If these casters are going to be moved by mechanically powered equipment, consult us for a reduced capacity rating based on your application. If a human being has to move the weight, select the largest practical wheel diameter. If a caster failure occurs it is almost always because of misuse or abuse. It has been very rare that a product failed because of faulty material or poor workmanship. The following are examples of things that we do NOT want you to do:

1. Dragging the wheel sideways.
2. Shock or Impact caused by dropping the load instead of setting it down on the castered equipment.
3. Improper Installation such as:
A. Rigid casters not installed parallel to one another.
B. Swivel casters not installed parallel to the floor.
C. Using less than 4 bolts to attach the mounting plate.
D. Distortion of the swivel bearing when attaching the mounting plate due to welding improperly.
4. Exceeding the rated capacity of the wheel or caster.
5. Exceeding a rolling speed of 3 MPH.
6. The build up of heat caused by continuous operation causing tire separation.

Quick Change Plate – Zinc Plated

A zinc plated quick change plate gets bolted to your equipment and enables the casters to be easily and quickly installed or replaced (changed) without using tools.

Will ONLY fit the casters shown on this page WITHOUT the ( Total Lock ) Brake Option! Will NOT WORK with Pneumatic or Foam Filled Pneumatic casters. Will NOT WORK with 4 position swivel lock.

Caster Pad – Unplated – Caster Model 9

Unplated caster pad gets welded onto your equipment. It enables casters to be easily and quickly installed or replaced. For use with casters having a 4″ x 4 1/2″ Mounting Plate. Includes locking bolt installed as shown.

Will ONLY fit the casters shown on this page but WILL NOT FIT if you order the TL ( Total Lock ) Brake Option! Will NOT WORK with 4 position swivel lock.

Optional Features:

When purchased with Wheel Brakes, please note they are not designed to hold on inclines. Total Lock Brake Pedal Locks the Wheel and Swivel Simultaneously. Swivel Lock converts a swivel caster into a rigid caster for direct line travel. Weld on swivel lock option makes the caster non returnable.

We also now carry the Plastic Top Lock Brake, which works great as a field-installable, easy-to-use solution that can be retrofitted to Model 9 casters.

Plate Caster Model 9 Features:

img SWIVEL CONSTRUCTION: Cold forged top plate and yoke base from 1/4″ steel. Swivel has double ball bearing with hardened raceways.
img AXLE is 1/2” diameter hollow bolt with lock nut
img LEGS are 1/4″ thick, welded outside only
img GREASE FITTINGS For swivel and wheel bearings
img WHEEL BEARING options: B= Ball Bearings, BRNZ= Bronze, D= Delrin Bearings, PS= Precision Sealed Ball Bearings, P= Plain Bore, R= Roller Bearing.
img CENTER PIN 5/8″ diameter nut and bolt
img FINISH External metal parts are Zinc plated
img Other mounting plate sizes and wheel bearing types are available on request. Please call.

Typical Application Use for the Plate Caster Model 9 Series:

img Material Handling
img Moving Dollies
img Computer Equipment Stands
img Electronics & Diagnostic
img Office Equipment
img Laboratory Equipment
img Bakery Equipment Stocking Carts
img Food Service Carts
img Workstations
img Equipment and Carts
img Computer Room Equipment
img Institutional Equipment

Need Help with your order?
(800) 501-3808

You should never select on the basis of load capacity alone. There is no industry standard for load capacity ratings and they may not include a factor for abuse. Our capacity ratings are below what the casters are capable of carrying because most applications have less than perfect conditions. Please refer to the information shown at the bottom of this page. If you have any doubt as to which wheel or caster is the BEST choice for your application contact us for a recommendation.

Click to Call
Translate »
