Plate Caster Model G15

“If you want help making a selection, call: 800-501-3808”

Industrial Plate Caster - Plate Mount - Kingpinless

Capacity up to 2,000 pounds per caster. Model G15 begins our industrial casters with precision machined swivel bearings. This design provides superior performance on both manually moved and mechanically powered equipment. Benefits include easier swiveling, reduced swivel vibration, and longer trouble free performance. Although this caster has the same wheels as shown in Caster Model 9, Model G15 is TWICE as good from the standpoint of performance and expected length of life. When used with mechanically powered equipment please consult us for a recommendation.

Plate Caster Model G15 Features:

Swivel Construction Precision machined combination load and thrust bearing with heat treated raceway. No center pin.
Axle 1/2” diameter hollow bolt with lock nut.
Finish External metal parts are zinc plated.
Wheel Bearing B= Ball Bearings, BRNZ= Bronze, D= Delrin Bearings, PS= Precision Sealed Ball Bearings, P= Plain Bore, R= Roller Bearing.
Legs 1/4″ thick, welded inside and out.
If your application exceeds 40 minutes at the maximum temperature rating for these wheels contact us at 800-501-3808 for a recommendation.

Total Locking Caster Available!!

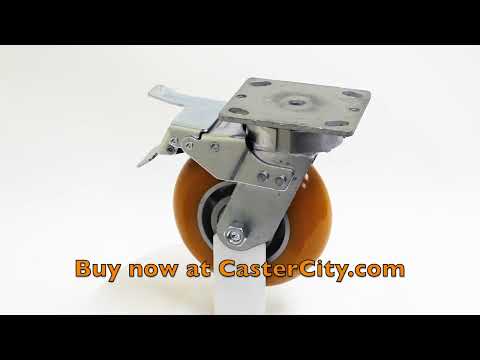

Total Locking Brake (TL): Locks both the Wheel from rolling AND the Swivel from turning.

Optional Features:

Wheel Brake (TB):

Pedal on side of Wheel Locks ONLY the wheel from rolling. The TB wheel brake is not available on a swivel with the Long Lead.

Wheel Brake (Face Contact Brake):

Wheel Brakes are not designed to hold on inclines. Not available on V-Groove Wheels.

Swivel Lock (SL4):

Welded – Locks Swivel, NOT wheel.

(Unlocked)

(Locked)

Swivel Lock (BSL4-FO ):

Locks Swivel, NOT wheel.

FOOT OPERATED

Long Lead Option:

The Long Lead Option is only available on the 6″ and 8″ Swivel Casters.

The “Long Lead” option inceases the Swivel Radius to 5 3/4″ for the 6″ diameter wheels. The “Long Lead” option inceases the Swivel Radius to 7 3/4″ for the 8″ diameter wheels. You can choose the “Long Lead Option” in the shopping cart. Click on the Swivel Caster part numbers to see all the options available. Long Lead option is not available with a TB wheel brake.

Plate Caster Model G15 Chart (Click the Part Number to Order)

When you put your mouse over the words in the wheel description column you see a picture of the wheel. Click on the part number in the Swivel and Rigid columns to see the complete caster.

CASTER WHEEL DIAM.	TREAD WIDTH	WHEEL TREAD MATERIAL Click below for Replacement Wheels	STD BRG TYPE	MAX CAP. EACH CASTER LBS.	SWIVEL CASTER Part Number	RIGID CASTER Part Number	APPROX SWIVEL WEIGHT (LBS)	APPROX SWIVEL RADIUS	OVERALL HEIGHT
4″	2″	Conventional Moldon Rubber Click here for more information	R	250	G15MR4x2-S	G15MR4x2-R	7	3 3/8″	5 5/8″
		Gray Soft Rubber, Flat Click here for more information	R	250	G15RF4x2-S	G15RF4x2-R	6
		Neoprene Rubber Click here for more information	PS	300	G15EN4x2PS-S	G15EN4x2PS-R	6
		High Capacity Rubber Click here for more information	B	300	G15RH4x2-S	G15RH4x2-R	6
		Polyurethane on Iron – Green Click here for more information	R	700	G15PY4x2-S	G15PY4x2-R	7
		Polyurethane on Iron – Red Click here for more information	R	700	G15PYR4x2-S	G15PYR4x2-R	7
		85A Yellow Polyurethane on Aluminum – Crown Click here for more information	PS	600	G15UXY4x2-S	G15UXY4x2-R	7
		90A Orange Polyurethane on Aluminum – Crown Click here for more information	PS	700	G15UAO4x2-S	G15UAO4x2-R	7
		Blue Polyurethane on Iron – Slight Crown Click here for more information	R	700	G15PYC4x2-S	G15PYC4x2-R	7
		Red Polyurethane on Iron – Crown Click here for more information	PS	700	G15PCI4x2PS-S	G15PCI4x2PS-R	7	4 3/4″
		Polyurethane – Blue/Black Click here for more information	R	400	G15UP4x2-S	G15UP4x2-R	6
		Polyurethane – Maroon/Gray Click here for more information	R	400	G15MG4x2-S	G15MG4x2-R	6
		Poly on Glass-Filled Nylon Click here for more information	R	700	G15UG4x2-S	G15UG4x2-R	6
		All Polyurethane Blue Click here for more information	R	700	G15AP4x2-S	G15AP4x2-R	5 1/2
		All Polyurethane Gray Click here for more information	PS	1000	G15HU4x2-S	G15HU4x2-R	6
		Polyolefin – Black Click here for more information	R	400	G15PB4x2-S	G15PB4x2-R	5
		Polyolefin – High Capacity Click here for more information	PS	800	G15RK4x2PS-S	G15RK4x2PS-R	6
		Nylon ( White ) Click here for more information	R	800	G15NY4x2-S	G15NY4x2-R	6
		Nylon ( Black ) Click here for more information	PS	800	G15MK4x2PS-S	G15MK4x2PS-R	6	6 1/4″
		Phenolic Click here for more information	R	800	G15TM4x2-S	G15TM4x2-R	6

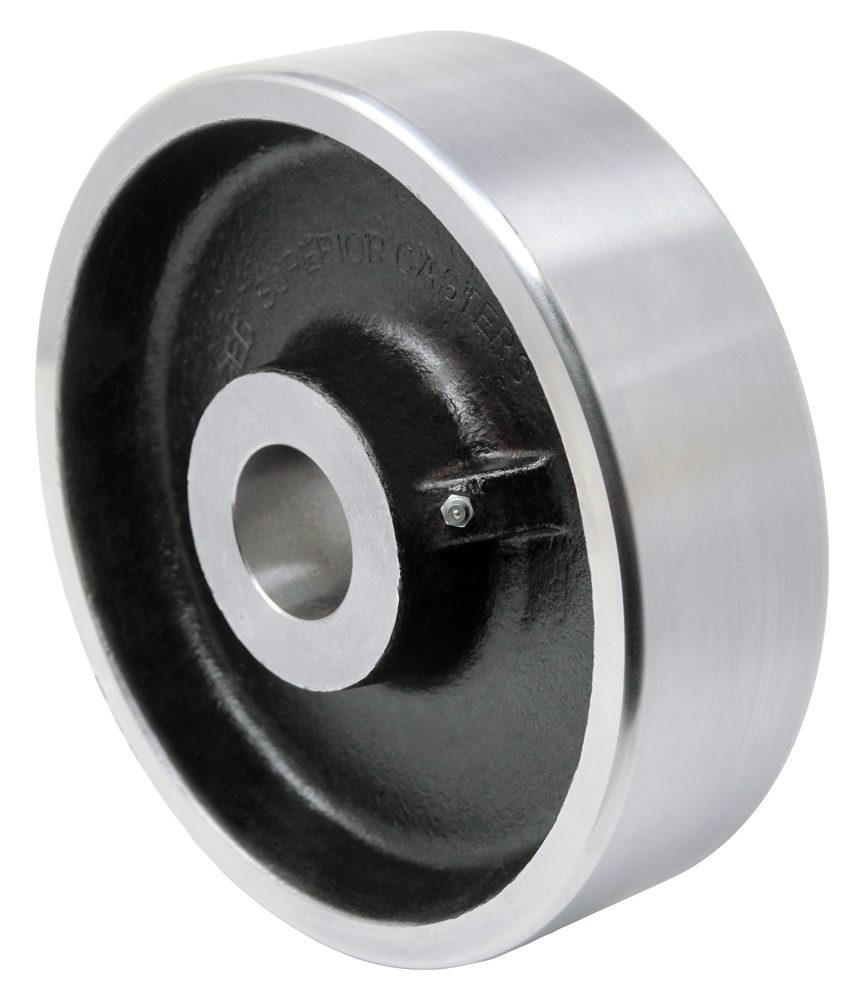

		Gray Iron Click here for more information	R	500	G15CL4x2-S	G15CL4x2-R	7 1/2
		Ductile Steel Click here for more information	R	1200	G15DS4x2-S	G15DS4x2-R	11
		Ductile Steel – Slight CrownT Click here for more information*	R	1200	G15DSC4x2-S	G15DSC4x2-R	11
		Ductile Steel – Slight CrownT Click here for more information*	BRNZ	1200	G15DSC4x2BRNZ-S	G15DSC4x2BRNZ-R	11
		Ultra High Capacity Polymer Click here for more information	PS	1500	G15NX4x2-S	G15NX4x2-R	6
		V-Groove Iron Click here for more information	R	500	G15VL4x2-S	G15VL4x2-R	7 1/2
		V-Groove Ductile Steel Click here for more information	R	1200	G15VS4x2-S	G15VS4x2-R	8
		High Temp Glass Filled Nylon Click here for more information	P	600	G15NP4x2-S	G15NP4x2-R	6
		High Temp Phenolic – Fiberglass Click here for more information	R	600	G15TP4x2-S	G15TP4x2-R	6

5″	2″	Conventional Moldon Rubber Click here for more information	R	300	G15MR5x2-S	G15MR5x2-R	10	4″	6 1/2″
		Gray Soft Rubber, Flat Click here for more information	R	300	G15RF5x2-S	G15RF5x2-R	7
		Neoprene Rubber Click here for more information	PS	350	G15EN5x2PS-S	G15EN5x2PS-R	7
		High Capacity Rubber Click here for more information	B	350	G15RH5x2-S	G15RH5x2-R	7
		Polyurethane on Iron – Green Click here for more information	R	800	G15PY5x2-S	G15PY5x2-R	11
		Polyurethane on Iron – Red Click here for more information	R	800	G15PYR5x2-S	G15PYR5x2-R	10
		Blue Polyurethane on Iron – Slight Crown Click here for more information	R	1000	G15PYC5x2-S	G15PYC5x2-R	10
		Red Polyurethane on Iron – Crown Click here for more information	PS	800	G15PCI5x2PS-S	G15PCI5x2PS-R	10
		85A Yellow Polyurethane on Aluminum – Crown Click here for more information	PS	700	G15UXY5x2-S	G15UXY5x2-R	8
		90A Orange Polyurethane on Aluminum – Crown Click here for more information	PS	800	G15UAO5x2-S	G15UAO5x2-R	8
		Polyurethane – Blue/Black Click here for more information	R	500	G15UP5x2-S	G15UP5x2-R	8 1/2
		Polyurethane – Maroon/Gray Click here for more information	R	500	G15MG5x2-S	G15MG5x2-R	8 1/2
		Poly on Glass-Filled Nylon Click here for more information	R	1000	G15UG5x2-S	G15UG5x2-R	8
		All Polyurethane Blue Click here for more information	R	800	G15AP5x2-S	G15AP5x2-R	8
		All Polyurethane Gray Click here for more information	PS	1400	G15HU5x2-S	G15HU5x2-R	7
		Polyolefin – Black Click here for more information	R	500	G15PB5x2-S	G15PB5x2-R	7 1/2
		Polyolefin – High Capacity Click here for more information	PS	1000	G15RK5x2PS-S	G15RK5x2PS-R	8 1/2
		Nylon ( White ) Click here for more information	R	900	G15NY5x2-S	G15NY5x2-R	8 1/2
		Nylon ( Black ) Click here for more information	PS	1000	G15MK5x2PS-S	G15MK5x2PS-R	8 1/2
		Phenolic Click here for more information	R	800	G15TM5x2-S	G15TM5x2-R	8
		Gray Iron Click here for more information	R	500	G15CL5x2-S	G15CL5x2-R	12
		Ductile Steel Click here for more information	R	1200	G15DS5x2-S	G15DS5x2-R	13
		Ductile Steel – Slight CrownT Click here for more information*	R	1200	G15DSC5x2-S	G15DSC5x2-R	13
		Ductile Steel – Slight CrownT Click here for more information*	BRNZ	1200	G15DSC5x2BRNZ-S	G15DSC5x2BRNZ-R	13
		Ultra High Capacity Polymer Click here for more information	PS	1500	G15NX5x2-S	G15NX5x2-R	8 1/2
		High Temp Glass Filled Nylon Click here for more information	R	750	G15NP5x2-S	G15NP5x2-R	8
		High Temp Phenolic – Fiberglass Click here for more information	R	750	G15TP5x2-S	G15TP5x2-R	8

6″	2″	SUPER CUSHION Rubber Click here for more information	B	350	G15CB6x2-S	G15CB6x2-R	9	4 3/4″	7 1/2″
		Conventional Moldon Rubber Click here for more information	R	400	G15MR6x2-S	G15MR6x2-R	10
		Gray Soft Rubber, Flat Click here for more information	R	400	G15RF6x2-S	G15RF6x2-R	8 1/2
		Gray Soft Rubber ( Crown ) Click here for more information	R	350	G15RD6x2-S	G15RD6x2-R	8 1/2
		Neoprene Rubber Click here for more information	PS	400	G15EN6x2PS-S	G15EN6x2PS-R	8 1/2
		High Capacity Rubber Click here for more information	B	450	G15RH6x2-S	G15RH6x2-R	8 1/2
		Polyurethane on Iron – Green Click here for more information	R	900	G15PY6x2-S	G15PY6x2-R	11
		Polyurethane on Iron – Red Click here for more information	R	900	G15PYR6x2-S	G15PYR6x2-R	11
		Blue Polyurethane on Iron – Slight Crown Click here for more information	PS	1200	G15PYC6x2-S	G15PYC6x2-R	11
		95A Red Polyurethane on Iron – Crown Click here for more information	PS	900	G15PCI6x2PS-S	G15PCI6x2PS-R	11
		85A Yellow Polyurethane on Aluminum – Crown Click here for more information	PS	1000	G15UXY6x2-S	G15UXY6x2-R	7
		90A Orange Polyurethane on Aluminum – Crown Click here for more information	PS	1000	G15UAO6x2-S	G15UAO6x2-R	7
		95A Green Polyurethane on Aluminum – Crown Click here for more information	PS	1000	G15UAC6x2-S	G15UAC6x2-R	7
		65D Blue Polyurethane on Aluminum – Crown Click here for more information	PS	1000	G15UDC6x2-S	G15UDC6x2-R	8
		Extra Heavy Polyurethane on Aluminum Click here for more information	PS	1200	G15CP6x2PS-S	G15CP6x2PS-R	9
		Polyurethane – Blue/Black Click here for more information	R	600	G15UP6x2-S	G15UP6x2-R	8 1/2
		Polyurethane – Maroon/Gray Click here for more information	R	600	G15MG6x2-S	G15MG6x2-R	8 1/2
		Poly on Glass-Filled Nylon Click here for more information	R	1200	G15UG6x2-S	G15UG6x2-R	8
		All Polyurethane Blue Click here for more information	R	900	G15AP6x2-S	G15AP6x2-R	8
		All Polyurethane Gray Click here for more information	PS	1700	G15HU6x2-S	G15HU6x2-R	8
		Polyolefin – Black Click here for more information	R	600	G15PB6x2-S	G15PB6x2-R	7 1/2
		Polyolefin – High Capacity Click here for more information	PS	1200	G15RK6x2PS-S	G15RK6x2PS-R	8 1/2
		Nylon ( White ) Click here for more information	R	1000	G15NY6x2-S	G15NY6x2-R	8 1/2
		Nylon ( Black ) Click here for more information	PS	1200	G15MK6x2PS-S	G15MK6x2PS-R	8 1/2
		Phenolic Click here for more information	R	1200	G15TM6x2-S	G15TM6x2-R	8 1/2
		Gray Iron Click here for more information	R	500	G15CL6x2-S	G15CL6x2-R	12
		V-Groove Iron Click here for more information	R	500	G15VL6x2-S	G15VL6x2-R	12
		V-Groove Ductile Steel Click here for more information	R	1500	G15VS6x2-S	G15VS6x2-R	13
		Ductile Steel Click here for more information	R	1500	G15DS6x2-S	G15DS6x2-R	13
		Ductile Steel Click here for more information	BRNZ	1500	G15DS6x2BRNZ-S	G15DS6x2BRNZ-R	13
		Ductile Steel – Slight CrownT Click here for more information*	R	1500	G15DSC6x2-S	G15DSC6x2-R	13
		Ductile Steel – Slight CrownT Click here for more information*	BRNZ	1500	G15DSC6x2BRNZ-S	G15DSC6x2BRNZ-R	13
		Ultra High Capacity Polymer Click here for more information	PS	1500	G15NX6x2-S	G15NX6x2-R	9
		High Temp Glass Filled Nylon Click here for more information	R	900	G15NP6x2-S	G15NP6x2-R	8 1/2
		High Temp Phenolic – Fiberglass Click here for more information	R	900	G15TP6x2-S	G15TP6x2-R	8 1/2

8″	2″	SUPER CUSHION Rubber Click here for more information	B	450	G15CB8x2-S	G15CB8x2-R	11	6 1/8″	9 1/2″
		Conventional Moldon Rubber Click here for more information	R	500	G15MR8x2-S	G15MR8x2-R	11
		Gray Soft Rubber, Flat Click here for more information	R	500	G15RF8x2-S	G15RF8x2-R	10
		Gray Soft Rubber ( Crown ) Click here for more information	R	450	G15RD8x2-S	G15RD8x2-R	10
		Neoprene Rubber Click here for more information	PS	500	G15EN8x2PS-S	G15EN8x2PS-R	10
		High Capacity Rubber Click here for more information	B	550	G15RH8x2-S	G15RH8x2-R	10
		Polyurethane on Iron – Green Click here for more information	R	1200	G15PY8x2-S	G15PY8x2-R	14
		Polyurethane on Iron – Red Click here for more information	R	1200	G15PYR8x2-S	G15PYR8x2-R	14
		Blue Polyurethane on Iron – Slight Crown Click here for more information	PS	1500	G15PYC8x2-S	G15PYC8x2-R	14
		95A Red Polyurethane on Iron – Crown Click here for more information	PS	1000	G15PCI8x2PS-S	G15PCI8x2PS-R	14
		85A Yellow Polyurethane on Aluminum – Crown Click here for more information	PS	1200	G15UXY8x2-S	G15UXY8x2-R	8
		90A Orange Polyurethane on Aluminum – Crown Click here for more information	PS	1200	G15UAO8x2-S	G15UAO8x2-R	8
		95A Green Polyurethane on Aluminum – Crown Click here for more information	PS	1200	G15UAC8x2-S	G15UAC8x2-R	8
		65D Blue Polyurethane on Aluminum – Crown Click here for more information	PS	1200	G15UDC8x2-S	G15UDC8x2-R	9
		Extra Heavy Polyurethane on Aluminum Click here for more information	PS	1500	G15CP8x2PS-S	G15CP8x2PS-R	10
		Polyurethane – Blue/Black Click here for more information	R	700	G15UP8x2-S	G15UP8x2-R	10
		Polyurethane – Maroon/Gray Click here for more information	R	700	G15MG8x2-S	G15MG8x2-R	10
		Poly on Glass-Filled Nylon Click here for more information	R	1400	G15UG8x2-S	G15UG8x2-R	10
		All Polyurethane Blue Click here for more information	R	1000	G15AP8x2-S	G15AP8x2-R	10
		All Polyurethane Gray Click here for more information	PS	2000	G15HU8x2-S	G15HU8x2-R	10
		Polyolefin – Black Click here for more information	R	700	G15PB8x2-S	G15PB8x2-R	10
		Polyolefin – High Capacity Click here for more information	PS	1400	G15RK8x2PS-S	G15RK8x2PS-R	11
		Nylon ( White ) Click here for more information	R	1100	G15NY8x2-S	G15NY8x2-R	11
		Nylon ( Black ) Click here for more information	PS	1400	G15MK8x2PS-S	G15MK8x2PS-R	11
		Phenolic Click here for more information	R	1500	G15TM8x2-S	G15TM8x2-R	9
		Ductile Steel Click here for more information	R	1500	G15DS8x2-S	G15DS8x2-R	17
		Ductile Steel – Slight CrownT Click here for more information*	R	1500	G15DSC8x2-S	G15DSC8x2-R	17
		Ductile Steel – Slight CrownT Click here for more information*	BRNZ	1500	G15DSC8x2BRNZ-S	G15DSC8x2BRNZ-R	17
		Ultra High Capacity Polymer Click here for more information	PS	2000	G15NX8x2-S	G15NX8x2-R	12
		High Temp Glass Filled Nylon Click here for more information	R	1100	G15NP8x2-S	G15NP8x2-R	10
		High Temp Phenolic – Fiberglass Click here for more information	R	1100	G15TP8x2-S	G15TP8x2-R	10

Want a larger plate? Click the Buttons for Plate Caster Models 14 & 15:

Precision Sealed Ball Bearings (PS):

Precision Sealed Ball Bearings increase rollability and are maintenance free. Available on Non-Metal Center Wheels.

You should never select on the basis of load capacity alone. Capacity ratings do not take into account the effort required to manually move a load. Capacity ratings are based on manual operation under ideal conditions. If these casters are going to be moved by mechanically powered equipment, consult us for a reduced capacity rating based on your application. If a human being has to move the weight, select the largest practical wheel diameter. If a caster failure occurs it is almost always because of misuse or abuse. It has been very rare that a product failed because of faulty material or poor workmanship. The following are examples of things that we do NOT want you to do:

1. Dragging the wheel sideways.
2. Shock or Impact caused by dropping the load instead of setting it down on the castered equipment.
3. Improper Installation such as:

A. Rigid casters not installed parallel to one another.
B. Swivel casters not installed parallel to the floor.
C. Using less than 4 bolts to attach the mounting plate.
D. Distortion of the swivel bearing when attaching the mounting plate due to welding improperly.

4. Exceeding the rated capacity of the wheel or caster.
5. Exceeding a rolling speed of 3 MPH.
6. The build up of heat caused by continuous operation causing tire separation.

Types of Wheels for the Plate Caster Model G15

“You should never select on the basis of load capacity alone. There is no industry standard for load capacity ratings and they may not include a factor for abuse. Our capacity ratings are below what the casters are capable of carrying because most applications have less than perfect conditions. Please refer to the information shown at the bottom of this page. If you have any doubt as to which wheel or caster is the BEST choice for your application contact us for a recommendation.”
