Plate Caster Model 30

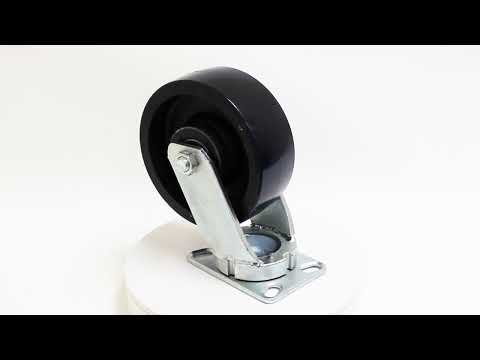

Thumbnail 1

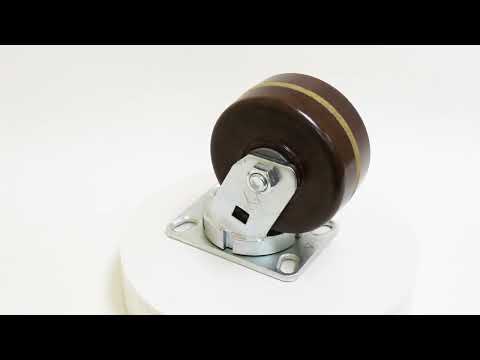

Thumbnail 2

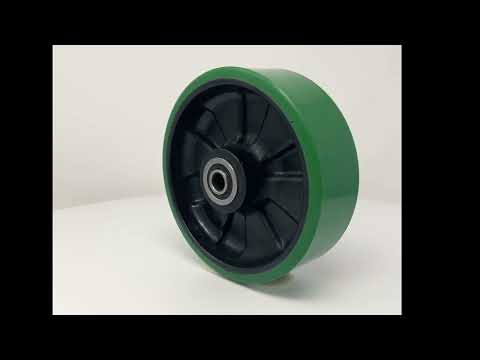

Thumbnail 3

Plate Caster Model 30 Chart
(Click the Part Number to Order)

Desktop: When you put your mouse over the words in the wheel description column you see a picture of the wheel. Click on the part number in the Swivel and Rigid columns to see the complete caster.

Mobile: Hold down your finger on the chart and scroll to the right to click on the part number you would like to order.

Filter through the Available Diameters to find the size you need.

CASTER WHEEL DIAM. TREAD WIDTH WHEEL TREAD MATERIAL Click below for Replacement Wheels STD BRG TYPE MAX CAP. EACH CASTER LBS. SWIVEL CASTER Part Number RIGID CASTER Part Number APPROX SWIVEL WEIGHT (LBS) APPROX SWIVEL RADIUS OVERALL HEIGHT
6″ 2 1/2″ Conventional Moldon Rubber Roller 600 30MR6X2.50-S 30MR6X2.50-R 23 4 3/4″ 7 1/2″
6″ 2 1/2″ Polyurethane on Iron
Roller 1600 30PY6X2.50-S 30PY6X2.50-R 23 4 3/4″ 7 1/2″
6″ 2 1/2″ Polyurethane on Iron – Slight Crown Tread
Roller 1600 30PYC6X2.50-S 30PYC6X2.50-R 24 4 3/4″ 7 1/2″
6″ 2 1/2″ Phenolic
Roller 1600 30TH6X2.50-S 30TH6X2.50-R 17 4 3/4″ 7 1/2″
6″ 2 1/2″ Ductile Steel
Roller 3000 30DS6X2.50-S 30DS6X2.50-R 24 4 3/4″ 7 1/2″
6″ 2 1/2″ V-Groove Ductile Steel
Roller 3000 30VS6X2.50-S 30VS6X2.50-R 24 4 3/4″ 7 1/2″
6″ 3″ Conventional Moldon Rubber
Roller 650 30MR6X3-S 30MR6X3-R 24 4 3/4″ 7 1/2″
6″ 3″ Polyurethane on Iron
Roller 2000 30PY6X3-S 30PY6X3-R 27 4 3/4″ 7 1/2″
6″ 3″ Polyurethane on Iron – Heavy Duty
Roller 3000 30PYH6X3-S 30PYH6X3-R 31 4 3/4″ 7 1/2″
6″ 3″ Polyurethane on Iron – Heavy Duty
Precision Ball 3000 30PYH6X3PS-S 30PYH6X3PS-R 31 4 3/4″ 7 1/2″
6″ 3″ Polyurethane on Iron – Heavy Duty T*
Tapered 3000 30PYH6X3T-S 30PYH6X3T-R 31 4 3/4″ 7 1/2″
6″ 3″ Polyurethane on Iron – Slight Crown Tread
Roller 2000 30PYC6X3-S 30PYC6X3-R 29 4 3/4″ 7 1/2″
6″ 3″ Phenolic
Roller 2000 30TH6X3-S 30TH6X3-R 18 4 3/4″ 7 1/2″
6″ 3″ Straight Sided High Temperature Phenolic
Roller 2000 30TP6X3-S 30TP6X3-R 18 4 3/4″ 7 1/2″
6″ 3″ Gray Iron
Roller 1000 30CL6X3-S 30CL6X3-R 24 4 3/4″ 7 1/2″
6″ 3″ Ductile Steel
Roller 3500 30DS6X3-S 30DS6X3-R 30 4 3/4″ 7 1/2″
6″ 3″ Ductile Steel – Slight Crown*T
Roller 3500 30DSC6X3-S 30DSC6X3-R 25 4 3/4″ 7 1/2″
6″ 3″ Ductile Steel – Slight Crown*B
Tapered 3500 30DSC6X3T-S 30DSC6X3T-R 25 4 3/4″ 7 1/2″
6″ 3″ V-Groove Iron
Roller 1000 30VL6X3-S 30VL6X3-R 25 4 3/4″ 7 1/2″
6″ 3″ V-Groove Ductile Steel
Roller 3500 30VS6X3-S 30VS6X3-R 25 4 3/4″ 7 1/2″
CASTER WHEEL DIAM. TREAD WIDTH WHEEL TREAD MATERIAL Click below for Replacement Wheels STD BRG TYPE MAX CAP. EACH CASTER LBS. SWIVEL CASTER Part Number RIGID CASTER Part Number APPROX SWIVEL WEIGHT (LBS) APPROX SWIVEL RADIUS OVERALL HEIGHT
8″ 2 1/2″ Conventional Moldon Rubber
Roller 600 30MR8X2.50-S 30MR8X2.50-R 24 6 3/8″ 10 1/8″
8″ 2 1/2″ Polyurethane on Iron
Roller 1600 30PY8X2.50-S 30PY8X2.50-R 25 6 3/8″ 10 1/8″
8″ 2 1/2″ Polyurethane on Iron – Slight Crown Tread
Roller 1600 30PYC8X2.50-S 30PYC8X2.50-R 26 6 3/8″ 10 1/8″
8″ 2 1/2″ Phenolic
Roller 1600 30TM8X2.50-S 30TM8X2.50-R 20 6 3/8″ 10 1/8″
8″ 2 1/2″ Ductile Steel
Roller 3000 30DS8X2.50-S 30DS8X2.50-R 27 6 3/8″ 10 1/8″
8″ 2 1/2″ V-Groove Ductile Steel
Roller 3000 30VS8X2.50-S 30VS8X2.50-R 27 6 3/8″ 10 1/8″
8″ 2 1/2″ Conventional Moldon Rubber
Roller 650 30MR8X3-S 30MR8X3-R 24 6 3/8″ 10 1/8″
8″ 3″ Polyurethane on Iron
Roller 2500 30PY8X3-S 30PY8X3-R 28 6 3/8″ 10 1/8″
8″ 3″ Polyurethane on Iron – Heavy Duty
Roller 3500 30PYH8X3-S 30PYH8X3-R 35 6 3/8″ 10 1/8″
8″ 3″ Polyurethane on Iron – Heavy Duty
Precision Ball 3500 30PYH8X3PS-S 30PYH8X3PS-R 35 6 3/8″ 10 1/8″
8″ 3″ Polyurethane on Iron – Heavy Duty T*
Tapered 3500 30PYH8X3T-S 30PYH8X3T-R 35 6 3/8″ 10 1/8″
8″ 3″ Polyurethane on Iron – Slight Crown Tread
Roller 2500 30PYC8X3-S 30PYC8X3-R 30 6 3/8″ 10 1/8″
8″ 3″ Phenolic
Roller 2500 30TM8X3-S 30TM8X3-R 22 6 3/8″ 10 1/8″
8″ 3″ Gray Iron
Roller 1000 30CL8X3-S 30CL8X3-R 25 6 3/8″ 10 1/8″
8″ 3″ Ductile Steel
Roller 3500 30DS8X3-S 30DS8X3-R 25 6 3/8″ 10 1/8″
8″ 3″ Ductile Steel – Slight Crown*T
Roller 3500 30DSC8X3-S 30DSC8X3-R 27 6 3/8″ 10 1/8″
8″ 3″ V-Groove Iron
Roller 1000 30VL8X3-S 30VL8X3-R 27 6 3/8″ 10 1/8″
8″ 3″ Ductile Steel – Slight Crown*B
Tapered 3500 30DSC8X3T-S 30DSC8X3T-R 27 6 3/8″ 10 1/8″
CASTER WHEEL DIAM. TREAD WIDTH WHEEL TREAD MATERIAL Click below for Replacement Wheels STD BRG TYPE MAX CAP. EACH CASTER LBS. SWIVEL CASTER Part Number RIGID CASTER Part Number APPROX SWIVEL WEIGHT (LBS) APPROX SWIVEL RADIUS OVERALL HEIGHT
10″ 2 1/2″ Conventional Moldon Rubber
Roller 600 30MR10X2.50-S 30MR10X2.50-R 26 7 9/16″ 11 1/2″
10″ 2 1/2″ Polyurethane on Iron
Roller 1600 30PY10X2.50-S 30PY10X2.50-R 28 7 9/16″ 11 1/2″
10″ 2 1/2″ Polyurethane on Iron – Slight Crown Tread
Roller 1600 30PYC10X2.50-S 30PYC10X2.50-R 30 7 9/16″ 7 9/16″
10″ 2 1/2″ Phenolic
Roller 1600 30TM10X2.50-S 30TM10X2.50-R 24 7 9/16″ 11 1/2″
10″ 3″ Conventional Moldon Rubber
Roller 650 30MR10X3-S 30MR10X3-R 26 7 9/16″ 11 1/2″
10″ 3″ Polyurethane on Iron
Roller 2500 30PY10X3-S 30PY10X3-R 29 7 9/16″ 11 1/2″
10″ 3″ Polyurethane on Iron – Heavy Duty
Roller 3500 30PYH10X3-S 30PYH10X3-R 38 7 9/16″ 11 1/2″
10″ 3″ Polyurethane on Iron – Slight Crown Tread
Roller 2500 30PYC10X3-S 30PYC10X3-R 31 7 9/16″ 11 1/2″
10″ 3″ Phenolic
Roller 2500 30TM10X3-S 30TM10X3-R 24 7 9/16″ 11 1/2″
10″ 3″ Gray Iron
Roller 1000 30CL10X3-S 30CL10X3-R 26 7 9/16″ 11 1/2″
10″ 3″ Ductile Steel
Roller 4000 30DS10X3-S 30DS10X3-R 32 7 9/16″ 11 1/2″
10″ 3″ V-Groove Iron
Roller 1000 30VL10X3-S 30VL10X3-R 27 7 9/16″ 11 1/2″
10″ 3″ V-Groove Ductile Steel
Roller 3500 30VS10X3-S 30VS10X3-R 33 7 9/16″ 11 1/2″

Plate Caster Model 30 Features:

img Swivel Construction Precision machined combination load and thrust bearing with heat treated raceway. No center pin.
img Axle 3/4″ diameter hollow bolt with lock nut.
img Finish External metal parts are Zinc plated.
img Wheel Bearing 1″ I.D. Hardened Straight Roller Bearing 3/4″ Tapered Roller Bearings or
Precision Ball Bearings
img Legs 3/8″ thick, welded inside and out.
img Grease Fittings For swivel and wheel bearings.
img Deduct 3 1/2 lb. for weight of rigid caster.

Types of Wheels for the Plate Caster Model 30

Optional Features:

Wheel Brake (FCB):

Wheel Brakes are not designed to hold on inclines. Not available on V-Groove Wheels.

Weld on Face Contact Brake option makes the caster non returnable.

Swivel Lock (SL4):

Swivel Lock converts a swivel caster into a rigid caster for direct line travel. Swivel Locks lock ONLY swivel, not the wheel.

Weld on Swivel Lock option makes the caster non returnable.

Plate Caster Model 30 Instructions:

You should never select on the basis of load capacity alone. Capacity ratings do not take into account the effort required to manually move a load. Capacity ratings are based on manual operation under ideal conditions. If these casters are going to be moved by mechanically powered equipment, consult us for a reduced capacity rating based on your application. If a human being has to move the weight, select the largest practical wheel diameter. If a caster failure occurs it is almost always because of misuse or abuse. It has been very rare that a product failed because of faulty material or poor workmanship. The following are examples of things that we do NOT want you to do:

1. Dragging the wheel sideways.
2. Shock or Impact caused by dropping the load instead of setting it down on the castered equipment.
3. Improper Installation such as:
A. Rigid casters not installed parallel to one another.
B. Swivel casters not installed parallel to the floor.
C. Using less than 4 bolts to attach the mounting plate.
D. Distortion of the swivel bearing when attaching the mounting plate due to welding improperly.
4. Exceeding the rated capacity of the wheel or caster.
5. Exceeding a rolling speed of 3 MPH.
6. The build up of heat caused by continuous operation causing tire separation.

Need Help with your order?
(800) 501-3808

You should never select on the basis of load capacity alone. There is no industry standard for load capacity ratings and they may not include a factor for abuse. Our capacity ratings are below what the casters are capable of carrying because most applications have less than perfect conditions. Please refer to the information shown at the bottom of this page. If you have any doubt as to which wheel or caster is the BEST choice for your application contact us for a recommendation.
